Pan‑Head Sealing Screws: Integrated Elastomer‑Seal Fasteners For Enclosure And Light‑Equipment Builds
Many mechanical design projects face a recurring compromise: you require reliable water‑ and dust‑tight sealing, yet your housing or cabinet structure does not allow for countersunk recess machining. Adding loose separate rubber washers to standard pan‑head screws often creates assembly headaches in high‑volume production. Washers shift, fall off or sit askew on automated lines, resulting in inconsistent sealing rates across production batches.

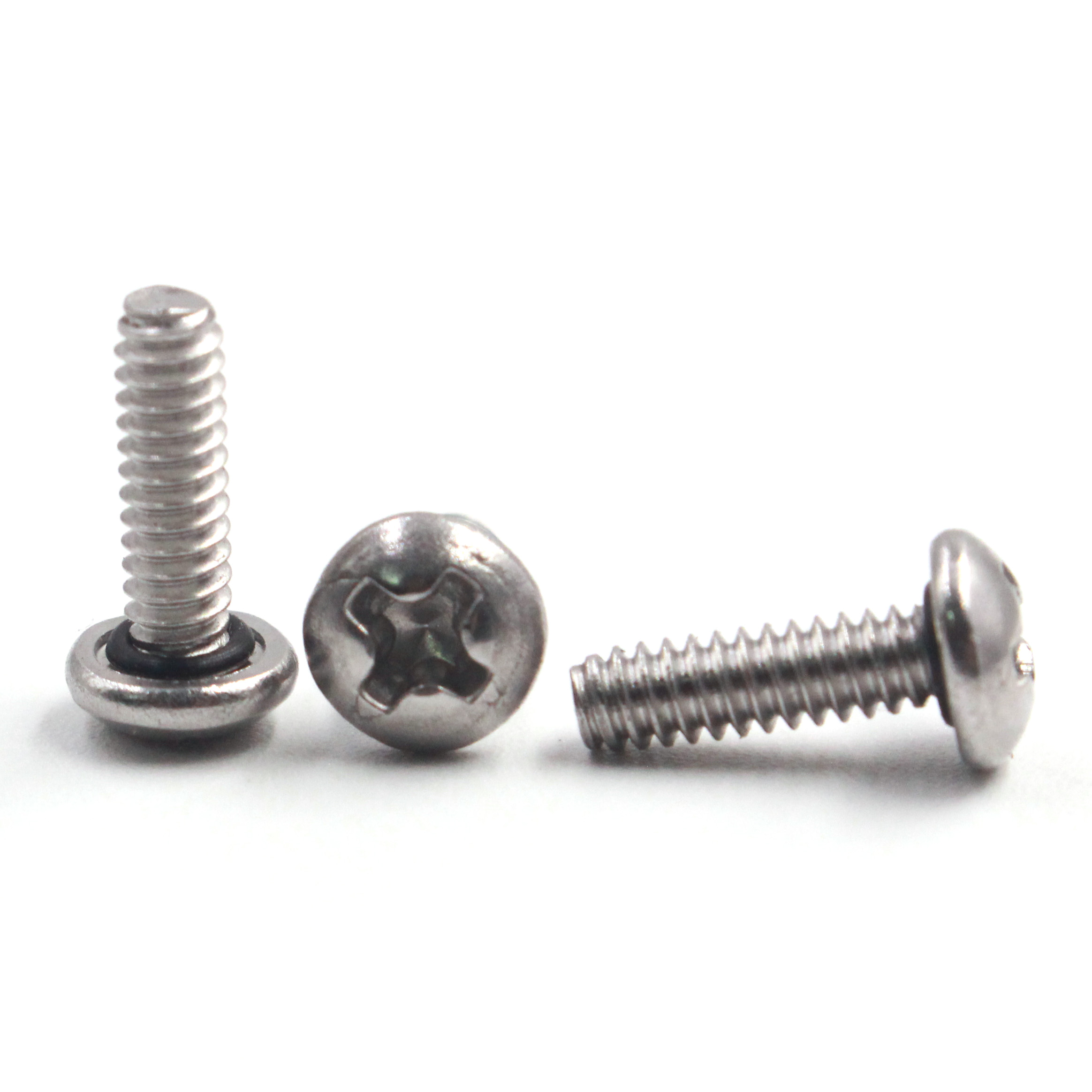

Pan‑Head Sealing Screws solve exactly this real‑world hardware challenge. Each fastener leaves our facility with an elastomeric sealing element permanently bonded beneath the rounded pan‑head. When torqued down onto flat workpiece surfaces, the rubber compresses evenly across the full contact footprint of the head. This forms a continuous barrier blocking ingress of rainwater, airborne dust and oil mist, all without countersink holes or loose add‑on gaskets.
Our manufacturing approach keeps the core mechanical performance of conventional pan‑head machine‑thread screws intact. The wide circular head spreads clamping pressure, lowering risk of denting or piercing thin plastic and thin‑gauge sheet‑metal housings.
Key product benefits
- • Pre‑assembled bonded‑elastomer seal eliminates manual gasket handling during production assembly
- • Broad pan‑head bearing surface distributes clamping force, ideal for thin‑wall enclosures that cannot tolerate point‑load pressure
- • Seal material options: EPDM for UV‑exposed outdoor service, NBR nitrile rubber for oil‑mist environments, silicone for sustained high‑temperature operation

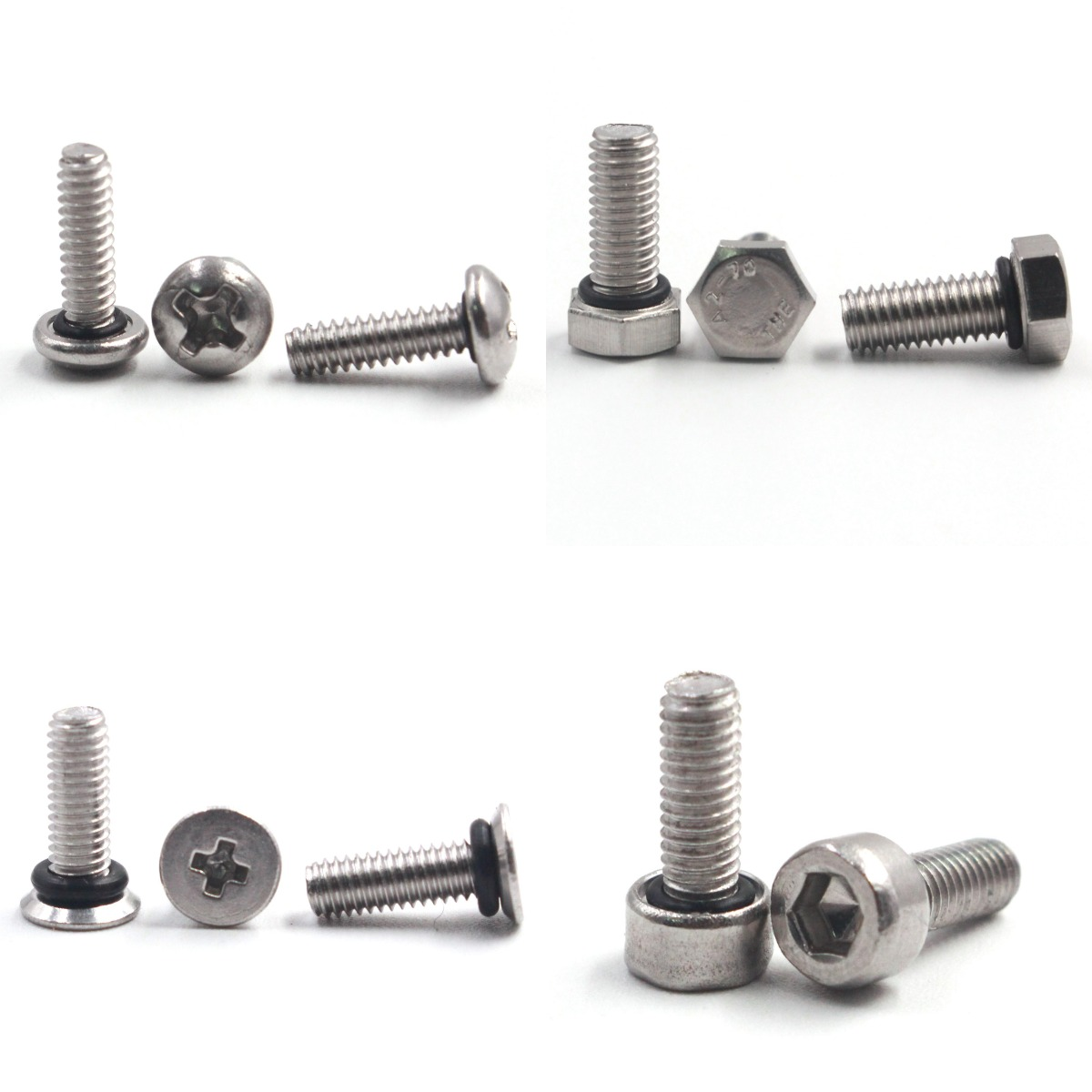

- • Multiple drive configurations: Phillips cross‑recess, torx and hex socket for different production‑tool set‑ups
- • Metal body options range from cost‑effective zinc‑plated carbon‑steel through corrosion‑resistant 304 / 316 stainless‑steel grades
These fasteners see regular deployment across outdoor surveillance cabinets, consumer appliance housings, light‑duty industrial machinery assemblies and a wide range of OEM equipment builds. Where stock sizes do not match project requirements, custom‑manufactured variants can be produced against customer drawings or physical sample submissions.
Technical Specifications
| Parameter | Available Options |
|---|---|
| Product | Pan‑Head Sealing Screws |
| Drive Type | Phillips cross‑recess, torx, hex socket |
| Body Material | Carbon steel, 304 stainless steel, 316 stainless steel |
| Seal Compound | EPDM, NBR nitrile rubber, silicone |
| Surface Treatment | Zinc‑plated, black oxide, stainless passivation |
| Size Range | M2‑M10; custom thread lengths available |
| Standard Reference | ISO fastener specifications, custom non‑standard per drawing |
When ordering custom‑built Pan‑Head Sealing Screws, please submit complete dimensional information including head geometry, thread specs, material grade, seal‑material selection and target operating environment. Our hardware engineering team reviews manufacturability and provides formal quotation with realistic lead‑time. Pre‑production samples are recommended for real‑workpiece fit‑and‑seal validation prior to mass‑lot release.
Frequently Asked Questions
Q: Can I assemble standard pan‑head screws plus loose rubber washers as a substitute?
A: This method frequently yields unstable sealing performance in volume‑production, as loose washers easily shift or drop out during handling. Pre‑bonded Pan‑Head Sealing Screws remove those assembly‑process variables.
Q: What risk comes from over‑torque installation?
A: Excessive torque can permanently crush the bonded rubber seal and may create indentation marks on thin‑wall housings. We can supply application‑specific torque reference values upon request.
Q: Do you support small‑batch prototype orders?
A: Yes, prototype‑scale trial lots are offered so customers can run assembly and environmental testing before committing to large‑volume POs.
About Our Manufacturing & Inquiry
We are a specialized custom fastener factory with deep experience producing integrated‑seal pan‑head screws for global B2B OEM buyers. Our in‑house workflows cover cold heading, thread rolling, seal‑washer bonding and full incoming‑to‑final‑goods quality inspection. We handle sample evaluations, low‑volume prototype work and high‑volume serial production.
