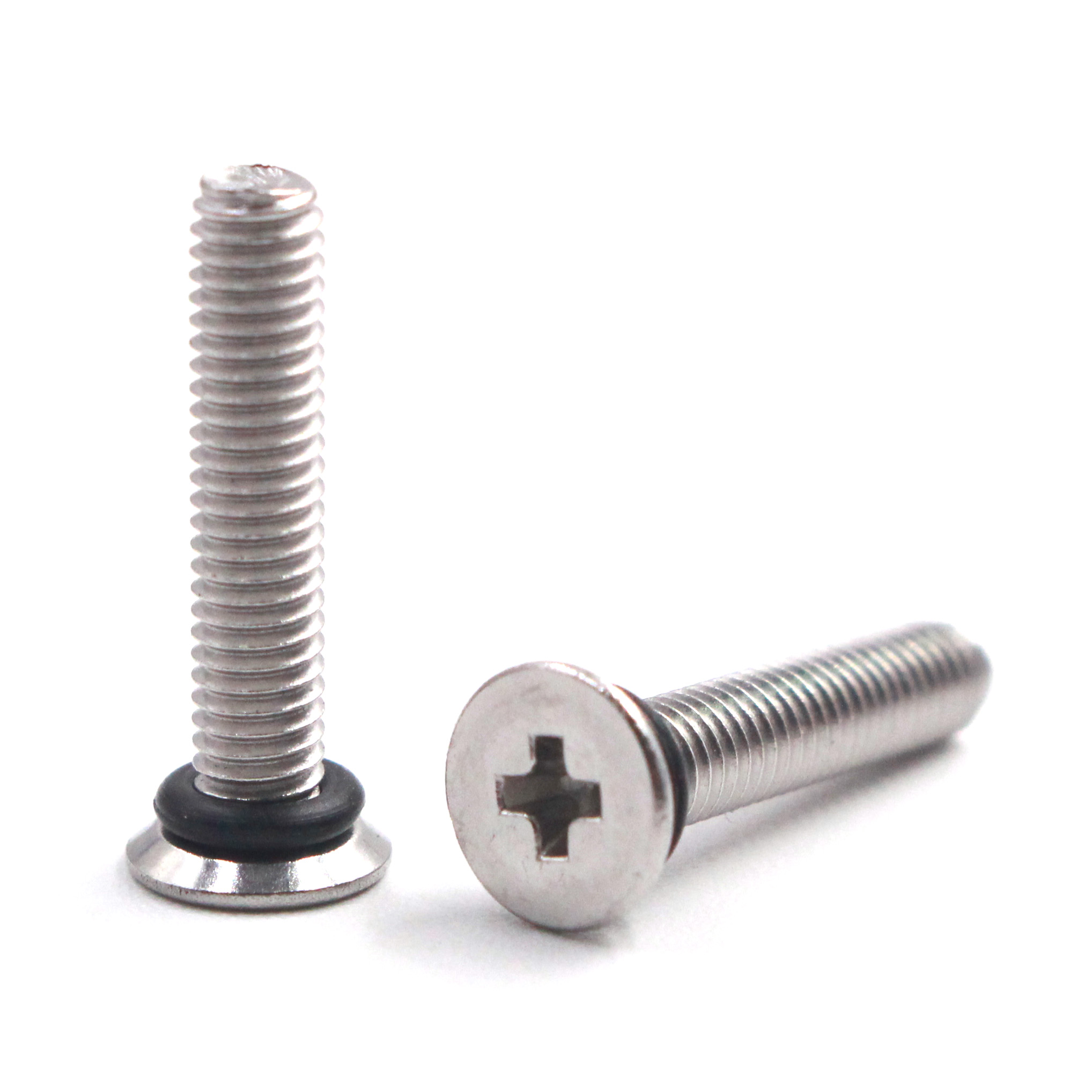

Sealing Screws – Integrated Waterproof & Leak‑Proof Fasteners For Harsh‑Environment Assembly
Core Product Features
Two key functional characteristics of our Sealing Screws:

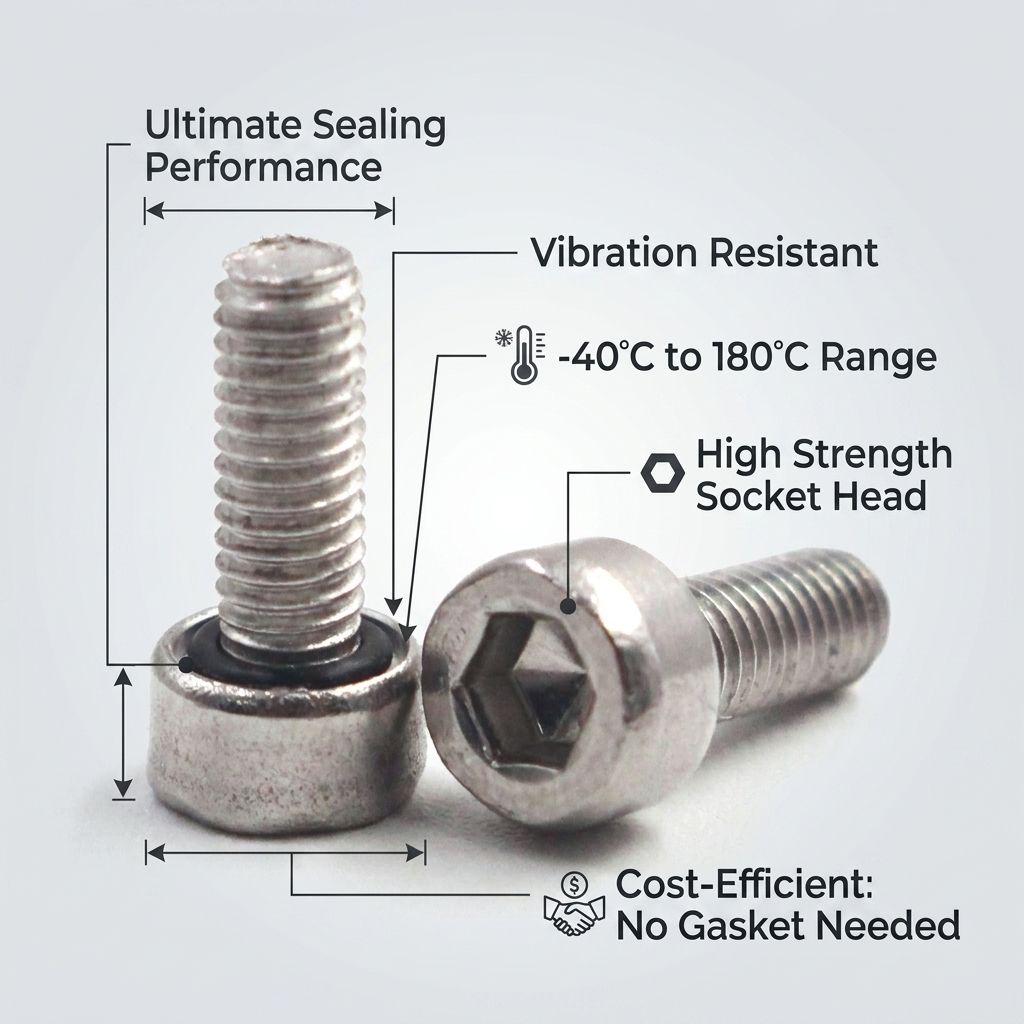

- Integrated sealing structure: Two mainstream solutions — pre‑mounted O‑ring groove design, or factory‑bonded EPDM/silicone washer. Compress when torqued, fill gaps between screw head and workpiece surface, resist water, dust, oil mist intrusion.
- Standard‑spec fastening performance: Retain regular screw mechanical clamping strength. Meet assembly torque requirements while achieving sealing performance. Suitable for machine‑thread installation, no extra gasket assembly steps.
Available Specifications
| Parameter | Options |
|---|---|
| Product | Sealing Screws |

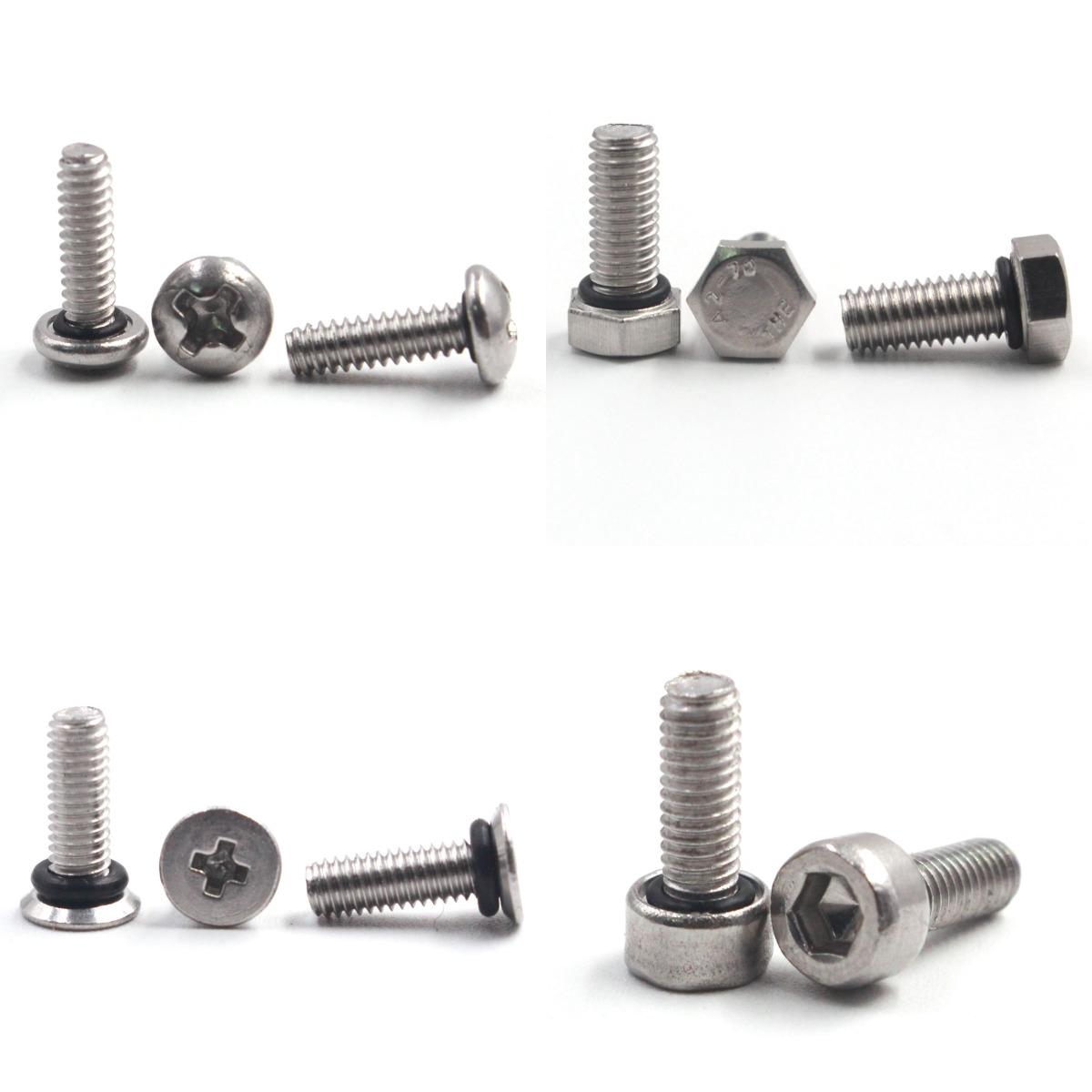

| Head Style | Pan head, flat countersunk head, hex flange head |
| Drive Style | Phillips cross‑recess, torx, hex socket |
| Screw Body Material | Carbon steel, 304 stainless steel, 316 stainless steel |
| Seal Material | EPDM rubber, silicone, NBR nitrile rubber |
| Surface Finish | Zinc‑plated, black oxide, stainless passivation |
| Size Range | M2‑M12; custom length available |
| Reference Standard | General ISO fastener norms, custom non‑standard per drawing |
Practical Application Tips
Practical notes collected from mass‑production OEM orders for Sealing Screws

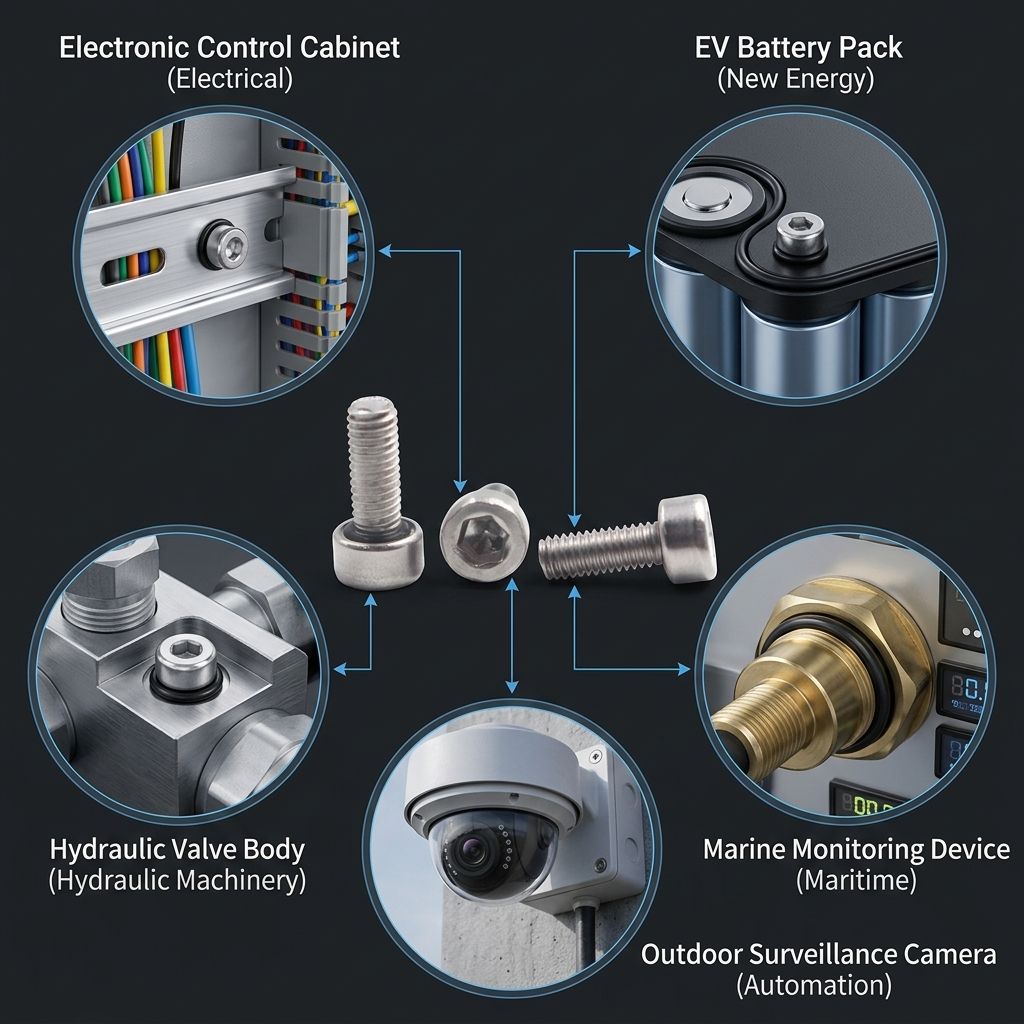

- Outdoor electronic cabinet & surveillance equipment: Select EPDM‑seal pan‑head sealing screws. Good UV‑resistance, adapt to rain and sun exposure for long‑term outdoor running.
- Marine / coastal salt‑spray equipment: Pick 316 stainless‑steel screw body with EPDM seal. Resist salt‑water corrosion; avoid carbon‑steel versions for seaside scenarios.
- Automotive & machinery oil‑mist environment: Adopt NBR nitrile‑rubber sealing compound, which stands for oil‑mist and fuel contact.
- High‑temperature working assemblies: Switch to silicone sealing washer for sustained high‑temperature operating conditions.
Custom Manufacturing Process
If off‑the‑shelf catalogue Sealing Screws cannot satisfy special dimension, head shape or sealing‑material requirements:
- Submit engineering drawing or physical sample, mark head style, thread specs, screw‑body material, sealing compound and performance requirements clearly.
- Our hardware engineering team reviews manufacturability and issues formal quotation plus realistic production lead‑time.
- Deliver pre‑production samples for real‑workpiece assembly test, to verify compression sealing performance and torque compatibility.
- Mass‑lot production will start only after sample validation passes.
Frequently Asked Questions
Q：Can ordinary screws plus loose separate rubber washer substitute Sealing Screws ?
A：Not recommended. Loose gaskets are easy to shift, drop or deform during mass‑production assembly, leading to unstable sealing yield. Integrated sealing‑screw avoids such risks.
Q：Will over‑torque damage the sealing rubber part?
A：Yes. Excessive torque will crush or crack rubber seal. Follow recommended torque range for Sealing Screws. We can provide torque reference value.
Q：Do you accept small‑batch prototype custom orders?
A：Yes, prototype small‑lot trial orders are available for assembly validation before bulk purchasing.
About Our Factory & Inquiry Guide
We are a professional custom fastener manufacturer with rich experience in integrated sealing screw production. Our production lines cover cold‑heading, thread rolling, sealing‑element assembling and full‑range in‑house quality inspection. We serve global OEM customers, equipment manufacturers and hardware distributors. We balance stable sealing performance, reasonable lead‑time and competitive bulk‑order pricing.
If you have project demands, sample requests or technical‑parameter consultation for Sealing Screws, feel free to send over your requirement details. Our sales‑engineering team will respond promptly with targeted solutions and quotations.
