Machine Screws Versatile Threaded Fasteners For Pre‑Tapped Hole Joint Assembly

Short Description:

When you work with pre‑tapped holes or matching nuts, machine screws will be your go‑to threaded fastener option. We supply standard off‑the‑shelf and custom‑built machine screws, covering various head forms, drive recesses and raw materials to fit different industrial‑grade assembly projects.

Product Detail

Product Tags

Full‑Spec Reference Table

Specification Item	Available Options
Product	machine screws

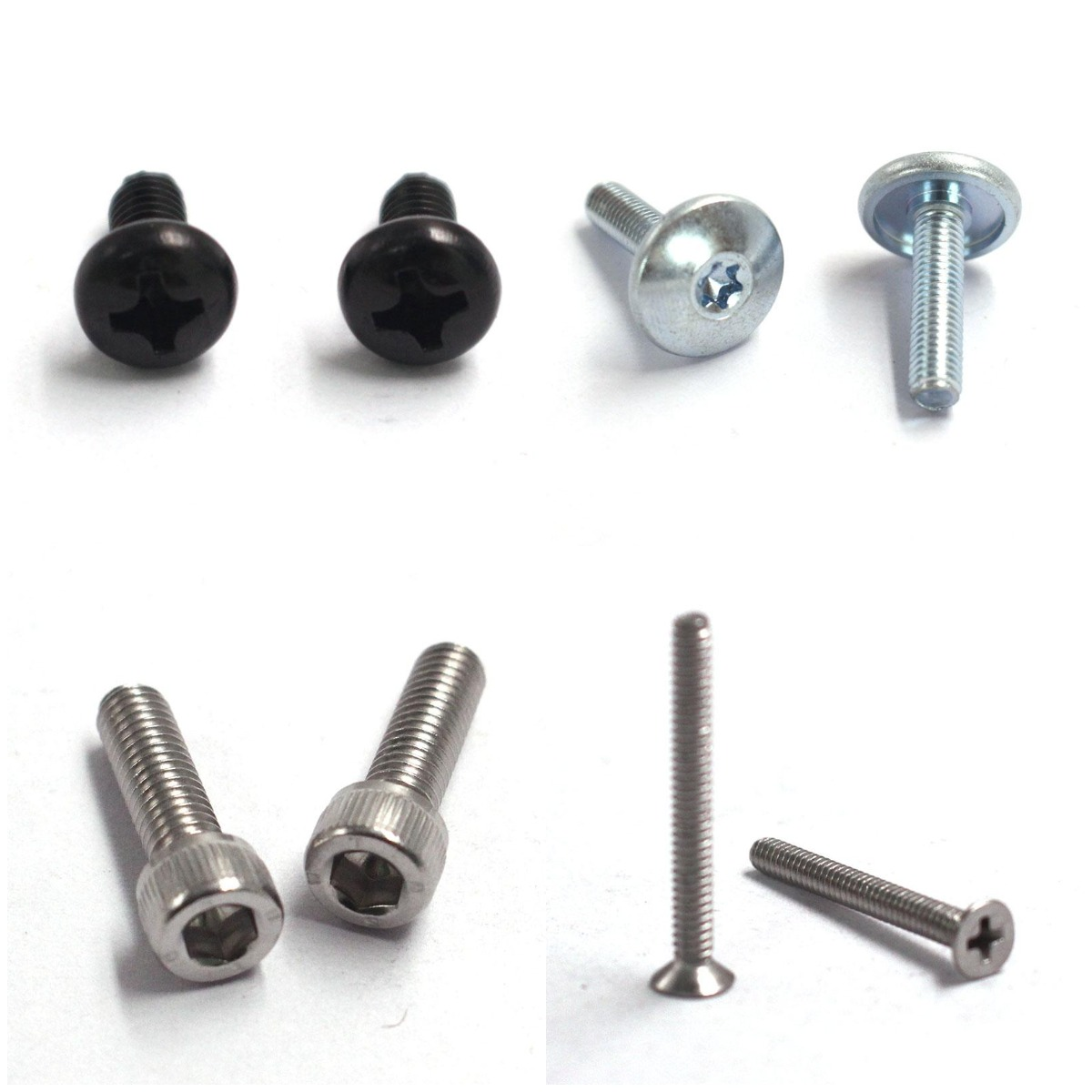

Head Variants	Pan head, countersunk flat head, socket cap, hex head, truss head
Drive Recess	Phillips, hex socket, torx, slotted / pozi
Raw Material	Carbon steel, 304 stainless steel, 316 stainless steel, brass
Surface Finish	Zinc‑plated, black oxide, nickel‑plated, stainless natural finish
Standards	DIN, ISO, ANSI, JIS metric & inch specs
Size Range	Metric M1.0‑M12, partial imperial sizes; custom by drawing or sample
Assembly Condition	Requires pre‑tapped hole or matching mating nut

Real‑World Application For machine screws

Buyers from different industries have distinct practical requirements for machine screws. We sort real‑project use‑cases for your quick reference.

Consumer electronics & PCB assembly

Pan‑head and countersunk‑head machine screws are widely used for housing, PCB board and internal component fixation. Small‑dimension parts need tight tolerance to adapt automatic screwing equipment.

General‑purpose machinery & equipment frames

Socket‑cap style machine screws handle higher torque loads. They are preferred for equipment frames, module connection points and mechanical cabinet assembly.

Electrical & terminal connection

Brass machine screws deliver good electrical conductivity. They fit terminal blocks, wiring connectors and instrument panel assembly work.

Automotive accessory & interior components

Both carbon‑steel and stainless‑steel machine screws apply to vehicle interior parts. Vibration resistance and stable thread fit are key points for this sector.

Practical Points When Selecting machine screws

Thread system confirmation Metric machine screws cannot pair with UNC / UNF inch tapped holes. Mix‑matching different thread pitches damages threads during installation. Confirm metric or imperial before placing orders.
Head form matches installation space If you need zero‑protrusion surface, pick countersunk variants and prepare matching counter‑sink bore. Pan‑head versions suit general mounting without flush‑surface requirements. Socket‑cap options work for high‑torque fastening.
Material and finish match working environment Zinc‑plated carbon steel works for dry indoor sites. Shift to stainless‑steel grades if your parts run under humid, coastal or outdoor exposure. Brass material is reserved for conductive connection scenarios.
Drive recess matches your existing tool bits Check your on‑site screwdriver / allen‑key inventory. Phillips, hex socket and torx each need corresponding tool sets. Avoid drive‑recess mismatch that causes cam‑out and low assembly efficiency.

Our Custom Workflow For machine screws

If standard catalog items can not satisfy your project demands, follow our simple custom workflow:

Submit technical drawing or physical sample, mark dimension, material, finish and special requirement.
Our engineering team reviews manufacturability and sends formal quotation plus lead‑time.
Arrange small‑batch pre‑production samples for real‑workpiece assembly testing.
Confirm sample performance, then start mass‑volume manufacturing.
