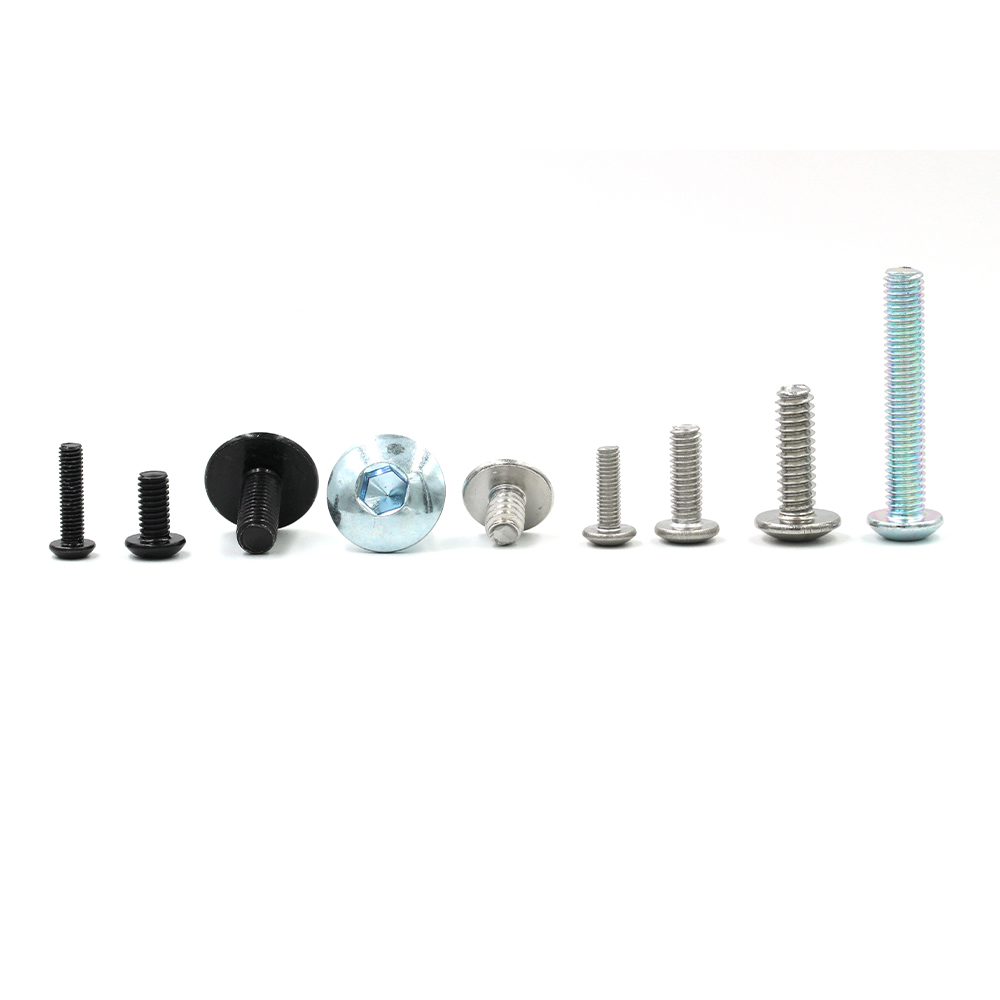

Machine Screws Solve Common Fastening Pain Points In OEM Volume Assembly
Parameter At A Glance
| Item | Specification Options |
|---|---|
| Product | machine screws |
| Available Head | Pan head, countersunk flat head, socket cap, hex head, truss head |
| Drive Option | Phillips, hex socket, torx, pozi, slotted |
| Material | Carbon steel(4.8‑10.9 grade), 304 / 316 stainless steel, brass |
| Surface Treatment | Zinc‑plated, nickel‑plated, black oxide, stainless passivated finish |
| Thread Standard | Metric DIN‑ISO, UNC / UNF inch thread |
| Dimension | Metric M1.0‑M12, partial inch sizes, custom per drawing / sample |
| Assembly Requirement | Must work with pre‑tapped hole or matched nut |
OEM Assembly Pain Points Solved By Our machine screws
Pain point 1: Cross‑threading & poor interchangeability between batches
Real trouble: Screw cannot smoothly screw‑into tapped holes; different production lots cannot replace each other, causing mixed‑stock chaos on production site.
Our solution: Thread rolling with tight tolerance control. Every production lot follows unified thread specification. Inter‑batch interchangeability is guaranteed for repeated OEM orders.
Pain point 2: Frequent jamming on automatic screwing lines
Real trouble: Bad head geometry or burrs make screws stuck in feeding rails, trigger frequent line stops and lower output.
Our solution: Strict dimensional inspection on head diameter, head height and chamfer. Burr‑free finish specially optimized for high‑speed auto‑feed assembly equipment.
Pain point 3: Premature rust under humid or coastal operating conditions
Real trouble: Ordinary carbon‑steel screws develop rust quickly after short‑term field operation, damage whole‑product reliability.
Our solution: Multiple material & finish grades for selection. Choose zinc‑plated carbon steel for dry indoor; shift to 304 /316 stainless‑steel machine screws for damp, coastal or outdoor‑exposed units.
Pain point 4: Cannot meet special structure or limited‑space demands
Real trouble: Standard catalog sizes cannot fit narrow installation space, special counter‑sink depth or non‑standard overall length.
Our solution: Flexible OEM custom capability. Adjust head shape, thread length, shank diameter and surface coating according to customer drawings or physical samples. Small‑batch pre‑production samples available for assembly validation.
Suitable Application Scenarios
- Consumer electronics OEM: cabinet, PCB and internal component fastening
- Industrial machinery OEM: equipment frames, module connection points
- Electrical hardware OEM: terminal block and conductive assembly
- Automotive interior OEM: interior plastic & metal component joint
Custom Order Process
- 1 Share your assembly pain points, drawing or sample
- 2 Our engineering team evaluates feasibility and provides targeted solution + quotation
- 3 Produce pre‑production samples for real‑workpiece testing
- 4 Confirm sample performance, proceed to mass‑production
FAQ
Q1 Will your machine screws get stuck in automatic feeding equipment?
A: Our machine screws are processed with burr‑free chamfer, with tight head‑dimension tolerance, optimized for most common auto‑feed screwing systems.
Q2 If I keep facing cross‑thread issues, can you adjust thread tolerance for my project?
A: Yes, we can adjust thread tolerance range according to your tapped‑hole actual condition upon OEM request.
Q3 Can you modify machine screws for narrow limited installation space?
A: We support custom head height, reduced‑head‑profile variants based on your drawing constraints.
