Hex Socket Set Screws | SUS304 Brass Grub Screws | Ready Stock & Custom

Product Overview

We produce these headless set screws (commonly called grub screws among our US and EU clients) via cold heading process, designed to lock parts in place inside pre-tapped holes. Once fully tightened, the whole screw sits flush under the workpiece surface — no protruding head, no extra space taken, which works perfectly for compact mechanical builds and enclosed device housings.

Every batch runs through thread go/no-go gauge inspection before packing. Threads are clean and burr-free, screw in smoothly without cross-threading, and hold stable locking force even under light vibration in long-running equipment.

Drive & Point Options

We carry all common drive and point styles to fit different assembly tools and use cases:

• Drive types: Hex socket (our top-selling style, works great with pneumatic screwdrivers for high-volume assembly), slotted, torx, external hex head

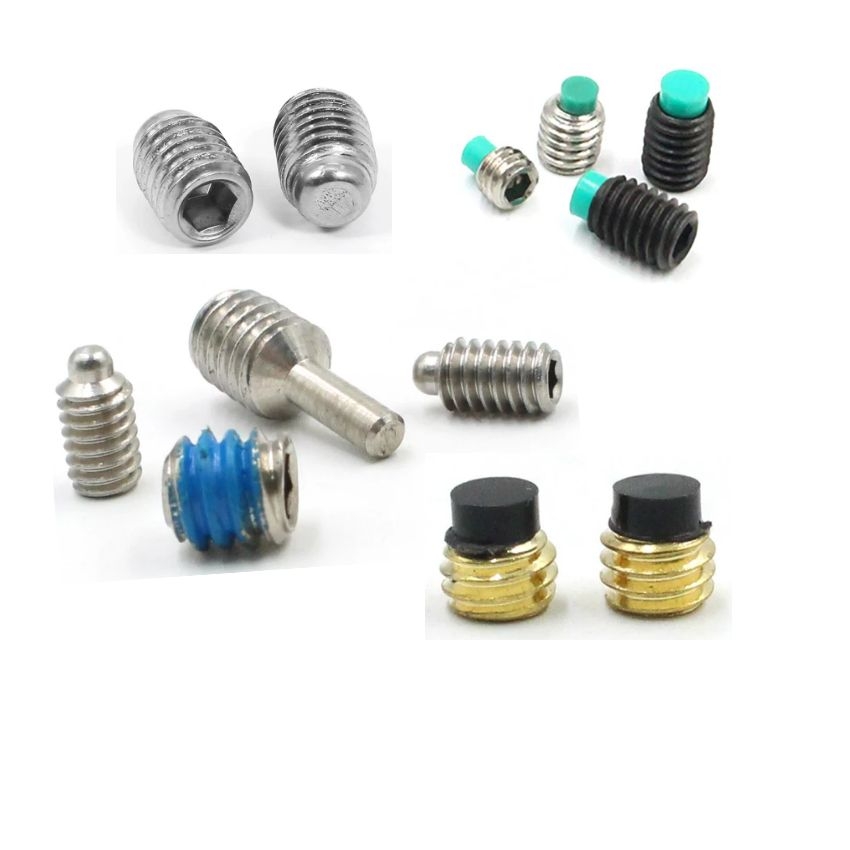

• Point styles:
  • Cup point: Our highest-volume standard model. Delivers solid holding pressure for regular shaft locking. Most ordered by machinery and pulley manufacturers.
  • Flat point: Spreads pressure evenly, barely leaves marks on soft or finely machined surfaces. Popular with electronic instrument and small device buyers.
  • Cone point: Self-centering design with high locking torque, pairs well with pre-dimpled surfaces for precise positioning. Used mostly in heavy-duty mechanical parts.
  • Dog point: Short cylindrical tip that drops into pre-drilled locating holes, for accurate axial alignment and slip-proof positioning.
  • Nylon tip: Soft nylon pad on the end, no scratches on delicate finished surfaces, plus slight vibration damping. Preferred by optical equipment and precision hardware clients.
  • Ball point / half dog point: For special light-load positioning and curved surface contact jobs.

Sizes & Production Standards

• Applicable standards: DIN 913 (flat point), DIN 914 (cone point), DIN 915 (dog point), DIN 916 (cup point), DIN 551 (slotted), ISO 4026-4029, ANSI/ASME B18.3
• Stock sizes (ready to ship in 24h):
  • Metric: M2, M3, M4, M5, M6, M8 (SUS304 cup point, lengths 3mm–25mm)
  • Full made-to-order range: M1.6 up to M12
  • Imperial: 4-40, 6-32, 10-24, 10-32, 1/4-20, 1/4-28, 3/32, 1/2-13
• Length range: 2mm–50mm (metric), 1/8″–2″ (imperial). Non-standard lengths and special thread pitches can be made from your drawings.

Materials & Surface Finishes

Material options are selected to match different working environments:

• SUS304 stainless steel (A2-70): Our most stocked material, good general corrosion resistance. Fits most outdoor cabinets, lighting fixtures and furniture hardware orders.
• SUS316 stainless steel (A4-80): Higher salt spray and chemical resistance. We supply this mostly to coastal construction, marine hardware and chemical equipment clients.
• Brass (H62): Non-magnetic, good conductivity and natural corrosion resistance. Used for electronic terminals, decorative hardware and plumbing fittings.
• Carbon steel (Grade 4.8 / 8.8): High tensile strength at low cost, for indoor mechanical structures and general assembly work.
• Alloy steel (Grade 12.9): High hardness and torque capacity, for heavy-duty load-bearing locking in industrial machinery.

Surface finish options: Plain passivation, clear zinc plating, black oxide, nickel plating, dacromet, PTFE coating, yellow zinc plating.

Typical Applications

These set screws see wide use across industries, common applications from our actual orders:

• Locking timing pulleys, gears and tool holders on rotating shafts in packaging and printing machinery
• Securing transmission parts and interior trim components in automotive aftermarket assemblies
• Positioning internal parts in precision meters, control panels and telecom devices
• Assembly of conveyor lines, robotic components and automated production equipment
• Fastening PV mounting brackets, ship accessories and outdoor power units
• Hidden fastening for door hardware, lamp fixtures and furniture joinery

About YH Fastener

YH Fastener is a set screw manufacturer based in Dongguan, Guangdong, with over 30 years of fastener production experience. We run two production bases: our Dongguan workshop handles mass production of standard stock parts, while our Lechang base focuses on custom non-standard orders and in-house heat treatment.

Equipped with multi-station cold heading machines and CNC lathes on site, we can turn around custom samples in roughly 7 working days. Every batch goes through 100% inspection with thread gauges, hardness testers and salt spray test equipment before shipment. We accept OEM/ODM orders from customer drawings or physical samples.
