Custom Flat Head Phillips Step Self Tapping Screws Non Standard Precision Fasteners

Short Description:

Product Detail

Product Tags

Stop screw over driving issues with our flat head phillips step self tapping screw

We chat with many product designers and shop floor supervisors every month. A recurring problem they run into comes from ordinary tapping screws. Different workers hold tools differently. Even using the same electric driver, output torque never stays consistent. It takes just a little extra push to crack plastic posts or punch thin shell panels. Our flat head phillips step self tapping screw was made exactly for this real trouble seen on assembly lines. There is a raised shoulder on the screw shank. Once this shoulder touches the mating face, the screw cannot go deeper no matter how much force is applied. This simple physical stop helps keep assembly results much more stable across batches.

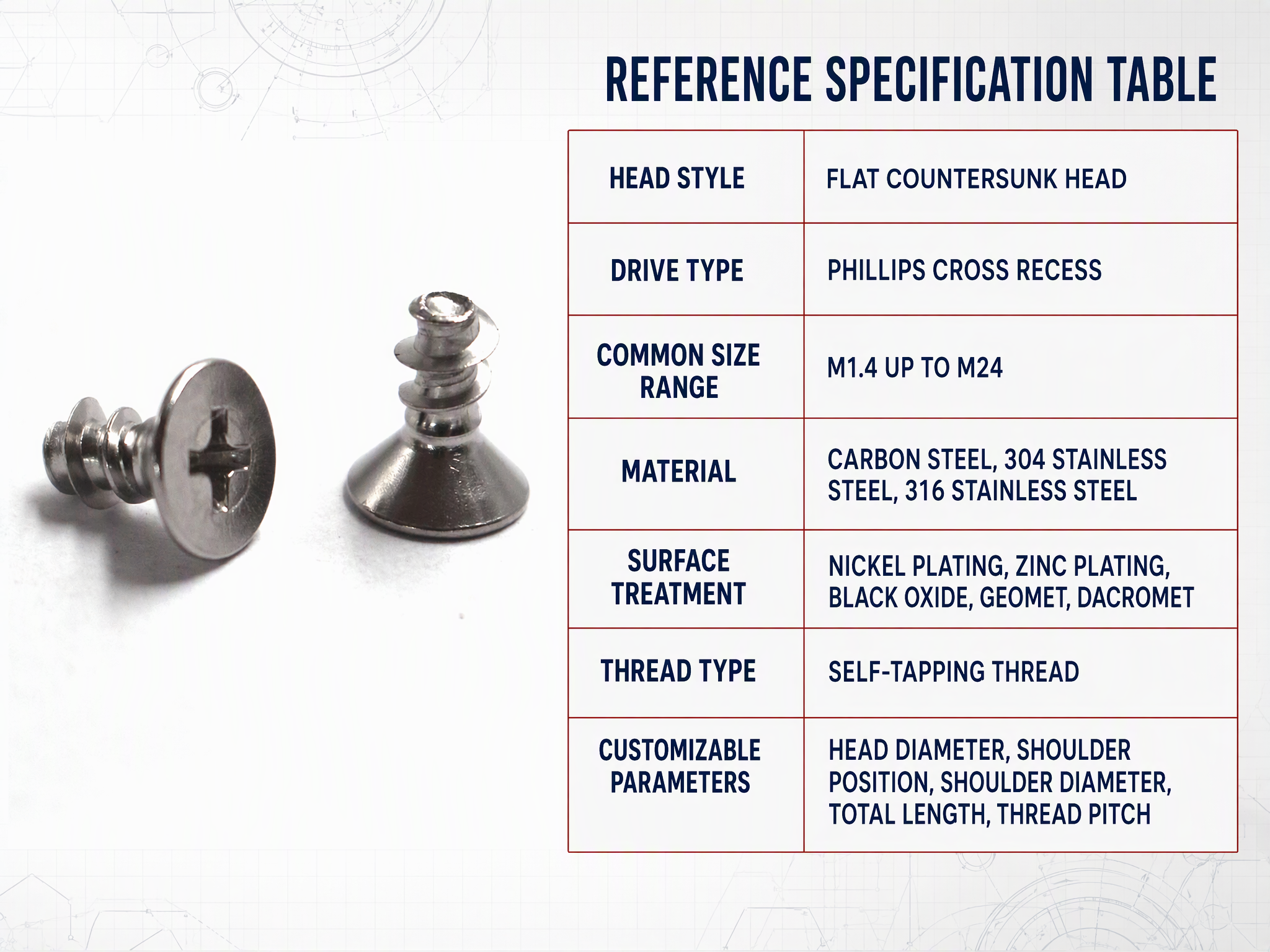

Reference Specification Table

Item	Available Options
Head Style	Flat Countersunk Head
Drive Type	Phillips Cross Recess
Common Size Range	M1.4 up to M24
Material	Carbon Steel, 304 Stainless Steel, 316 Stainless Steel
Surface Treatment	Nickel Plating, Zinc Plating, Black Oxide, Geomet, Dacromet
Thread Type	Self Tapping Thread
Customizable Parameters	Head Diameter, Shoulder Position, Shoulder Diameter, Total Length, Thread Pitch

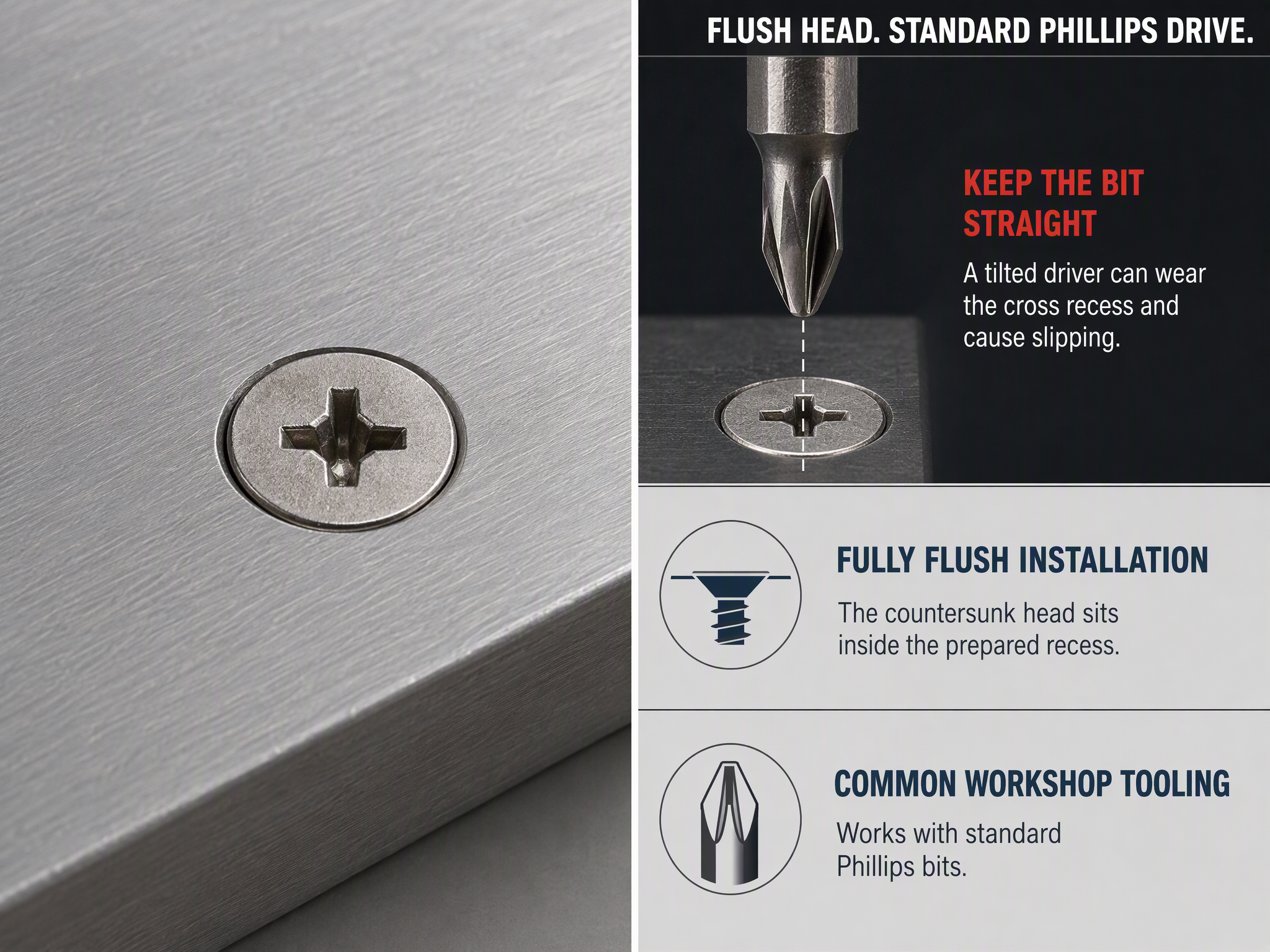

Flat head and phillips drive match common workshop tools

After full tightening, the flat countersunk head sits fully inside the countersink. Nothing sticks out to block covers, brackets or other parts fitted later on. The phillips cross recess works with standard bits most workshops already stock. You won’t need to buy special tooling or adjust your whole production flow just for these fasteners. We always remind our customers to keep bits lined up straight. If tilted while driving, the cross slot will wear fast and slip easily after repeated use.

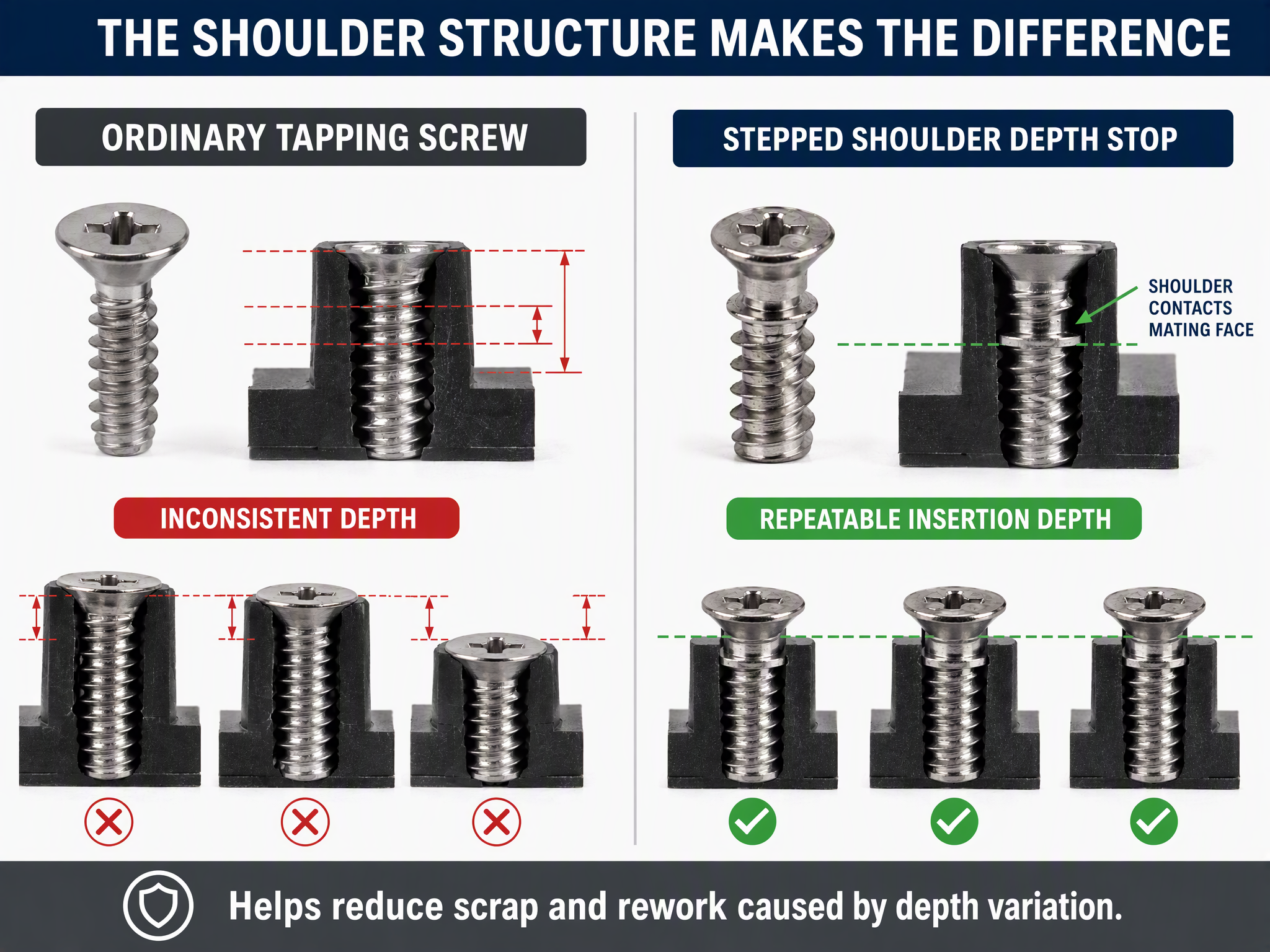

The shoulder structure is what makes this screw different

Lots of customers choose this screw mainly for the limiting shoulder feature. It removes heavy reliance on workers’ personal feel to judge how far to tighten. Each finished piece ends up with nearly the same insertion depth, batch by batch. Controlled depth helps cut scrap and extra rework time. This advantage matters more for big volume orders, where tiny differences add up and create big losses. We adjust shoulder size and position one at a time following each customer’s drawing, instead of sticking to fixed standard sizes.

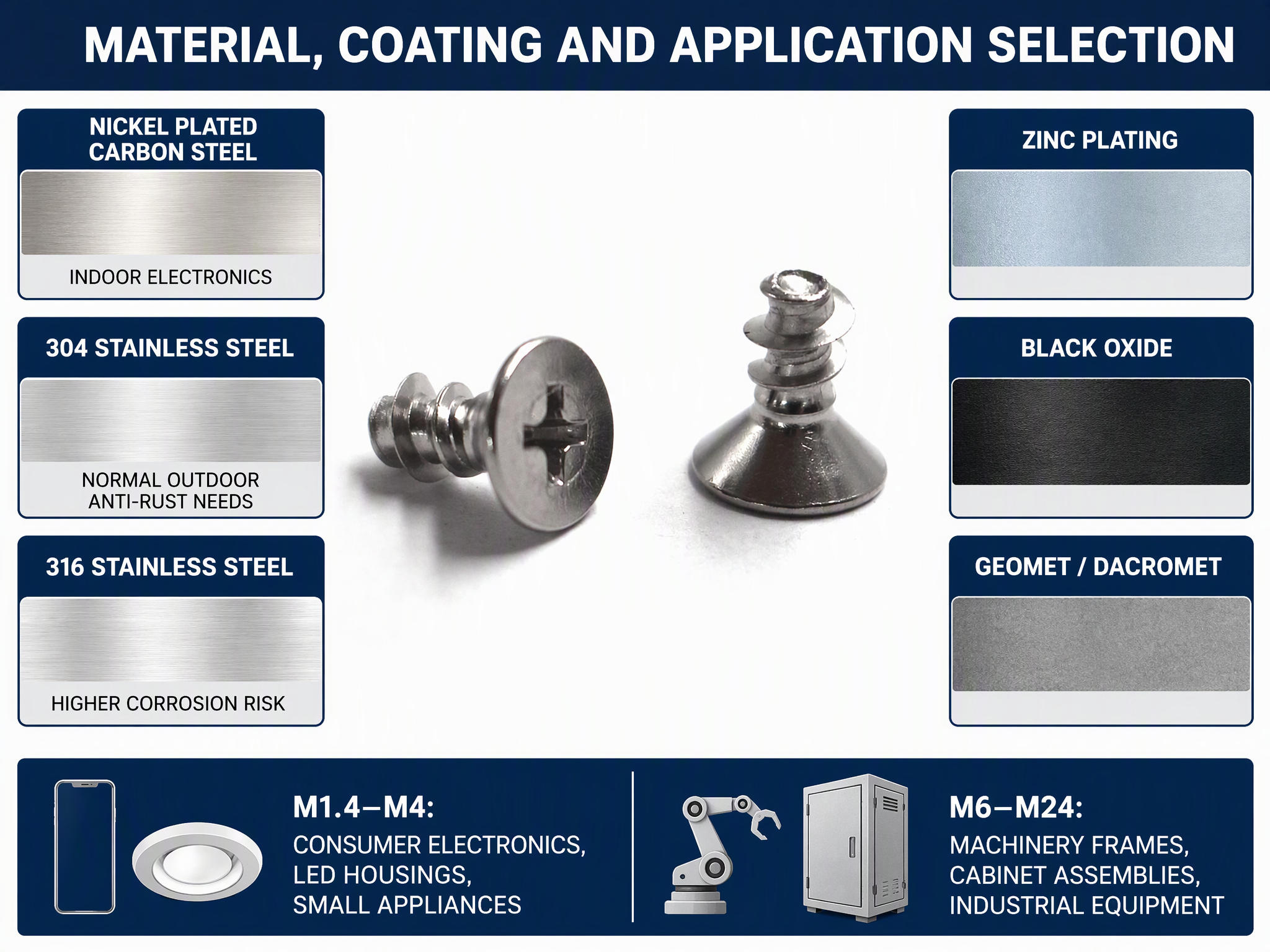

Choose material and coating based on your actual working environment

We offer several material picks to suit different use cases. Nickel plated carbon steel remains a popular option for indoor electronic builds. Its bright clean surface meets regular appearance requirements and offers basic rust protection. If the product sits outdoors or stays in consistently damp space, stainless steel works better. 304 handles normal anti-rust needs, while 316 fits settings with stronger corrosion risk. We also offer zinc plating, black oxide, Geomet and Dacromet coatings. Talk with our team about your budget and corrosion needs before locking your final choice.

Where users apply these step tapping screws

The flat head phillips step self tapping screw gets used in many different industries. Small sizes M1.4 to M4 are commonly found in consumer electronics, LED lamp housings, small home appliances and plastic support frames. Larger sizes from M6 to M24 are built for heavy duty work, including machinery frames, cabinet assemblies and industrial equipment. Any project needing flush installation and fixed screw depth can benefit a lot from this design.

Custom production service from YH Fastener

We make these step tapping screws inside our own factory, built strictly according to customer drawings. When standard sizes don’t fit your assembly layout, we can change head width, shoulder dimensions, total length and thread pitch as requested. Samples can be sent out before mass production. You can test fit samples on your prototypes and check all details before bulk shipment starts. Material test reports and RoHS certificates can be provided once your order is confirmed.

Get quotation and technical advice from our team

If you’re unsure which size or material fits your project, send over your drawings and share notes about working conditions. Tell us the base material the screw fastens into, panel thickness, anti-rust requirements and whether you need a fully flush surface. Our technical team will sort out suitable plans and send a formal quotation with clear lead time for your check.

Frequently Asked Questions

1. What is the main function of the stepped shoulder?

The shoulder acts as a depth stopper. It stops over-driving and prevents thin sheets and plastic posts from cracking.

2. Can this screw form threads by itself?

Yes, it is a self tapping screw. It cuts threads directly on pre-drilled holes in plastic or thin metal sheet.

3. Can shoulder position and diameter be adjusted?

Sure, all shoulder related dimensions can be customized based on your engineering drawing.

4. Is nickel plated steel suitable for outdoor use?

Nickel plating only provides limited rust resistance. Stainless steel or high-performance coating works better for wet outdoor environments.

5. What size range can you produce?

We manufacture this screw from M1.4 up to M24, covering tiny electronic fasteners and large industrial hardware.
