Custom Cap Head Pin Torx Security Screws Non Standard Tamper Proof Fasteners

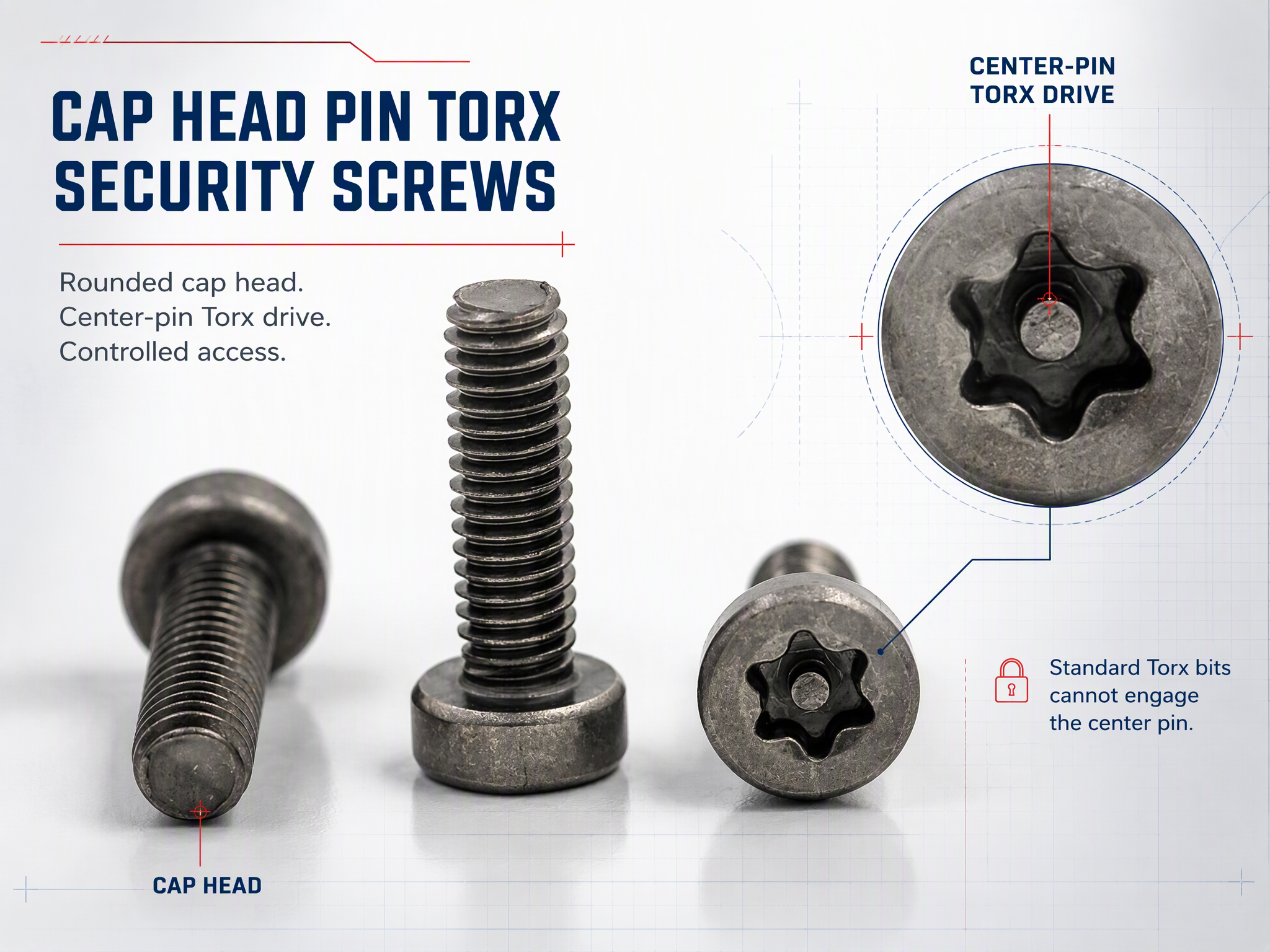

We hear from equipment makers and cabinet fitters nearly every week. Their core need is simple: they need strong fasteners to stop unauthorized disassembly on finished goods. Our cap head pin torx security screw handles this practical demand really well. It comes with a smooth rounded cap head, and its torx recess has a solid pin sitting right at the center. Standard torx bits cannot catch onto this special drive shape. Without the matching dedicated security bit, outsiders will struggle to loosen the screw. This design works perfectly for assembled hardware you want to protect from unwanted tampering.

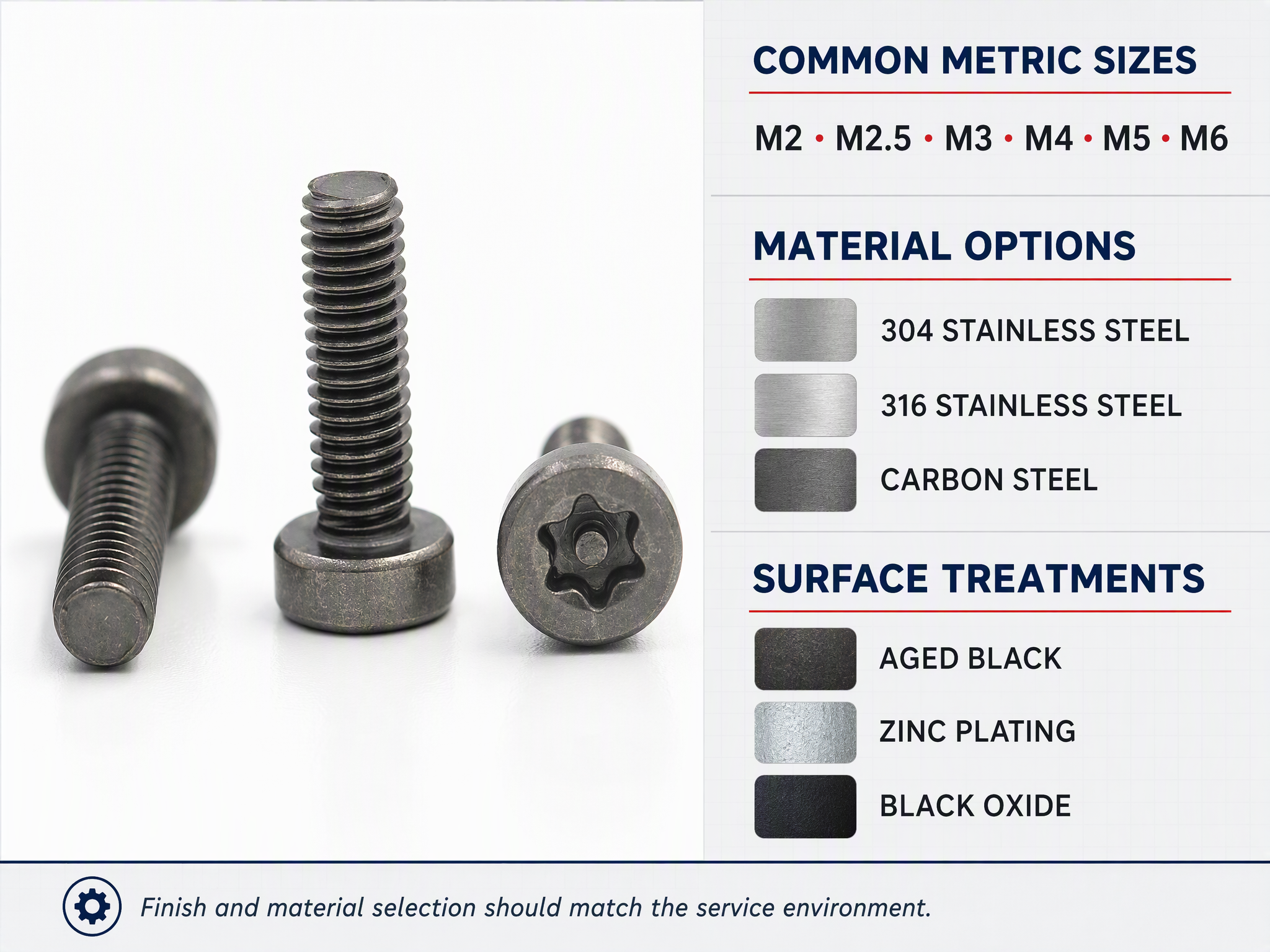

We stock a wide range of these cap head pin torx security screw inside our warehouse. Popular metric sizes M2, M2.5, M3, M4, M5, M6 are ready for quick dispatch once orders land. Go for 304 or 316 stainless steel if corrosion resistance is your main concern. Carbon steel is a budget-friendly pick for dry indoor projects. The aged black finish shown in the sample photo remains one of our top surface options. It delivers a rugged industrial texture while offering basic rust protection. Zinc plating and black oxide finishes can also be arranged on request.

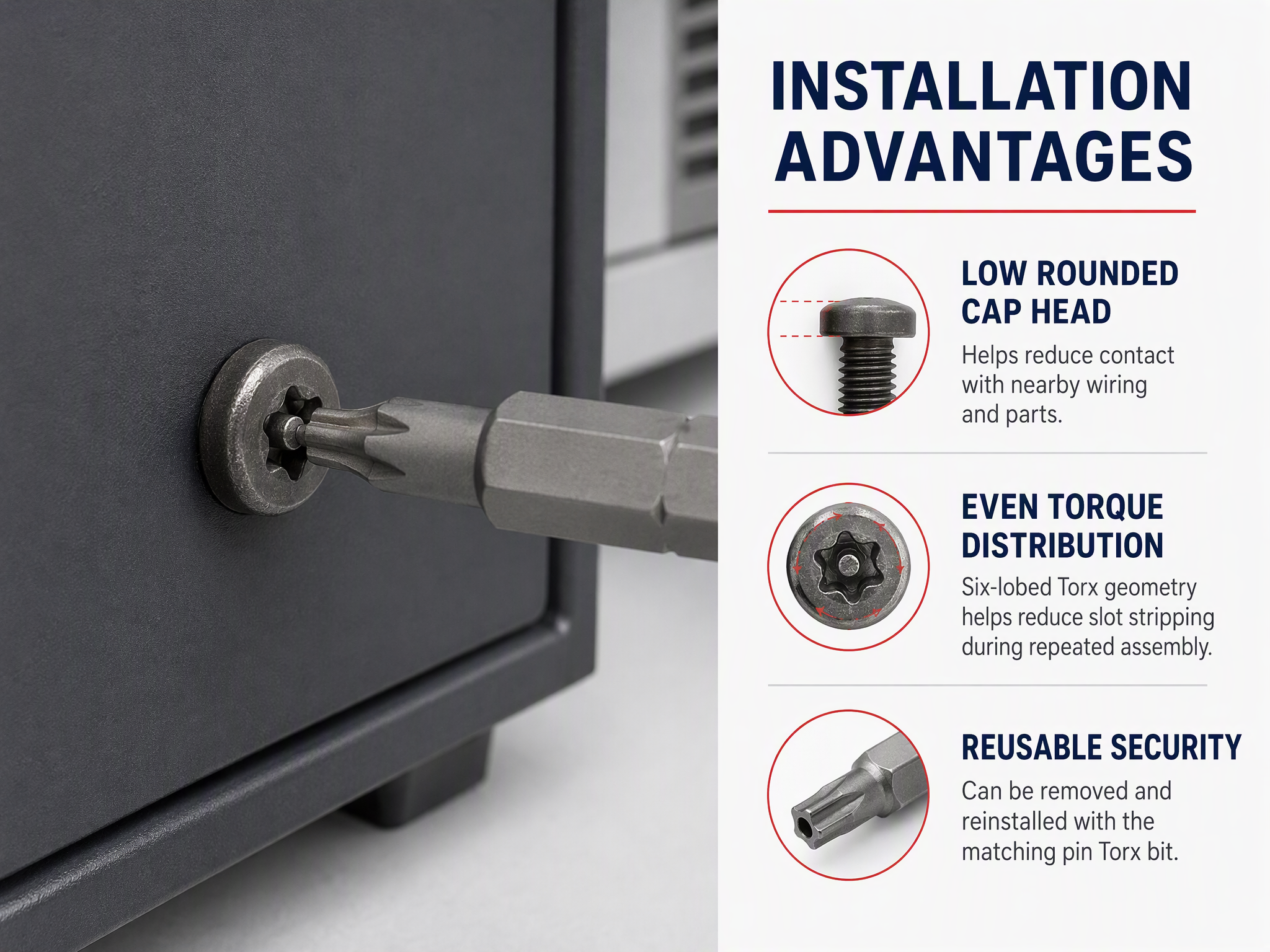

When tightened fully, this low rounded cap head will not snag loose wires or scratch nearby parts inside your assembly. The six-lobed torx recess spreads tightening force evenly across the contact surface. This cuts the chance of slot stripping when technicians take the unit apart and put it back together many times. Unlike one-way tamper screws which only allow a single installation, this pin torx variant can be removed repeatedly. You just need your team to keep the matching security bits properly stored. This reusable feature makes it a solid choice for equipment scheduled for regular inspection and servicing.

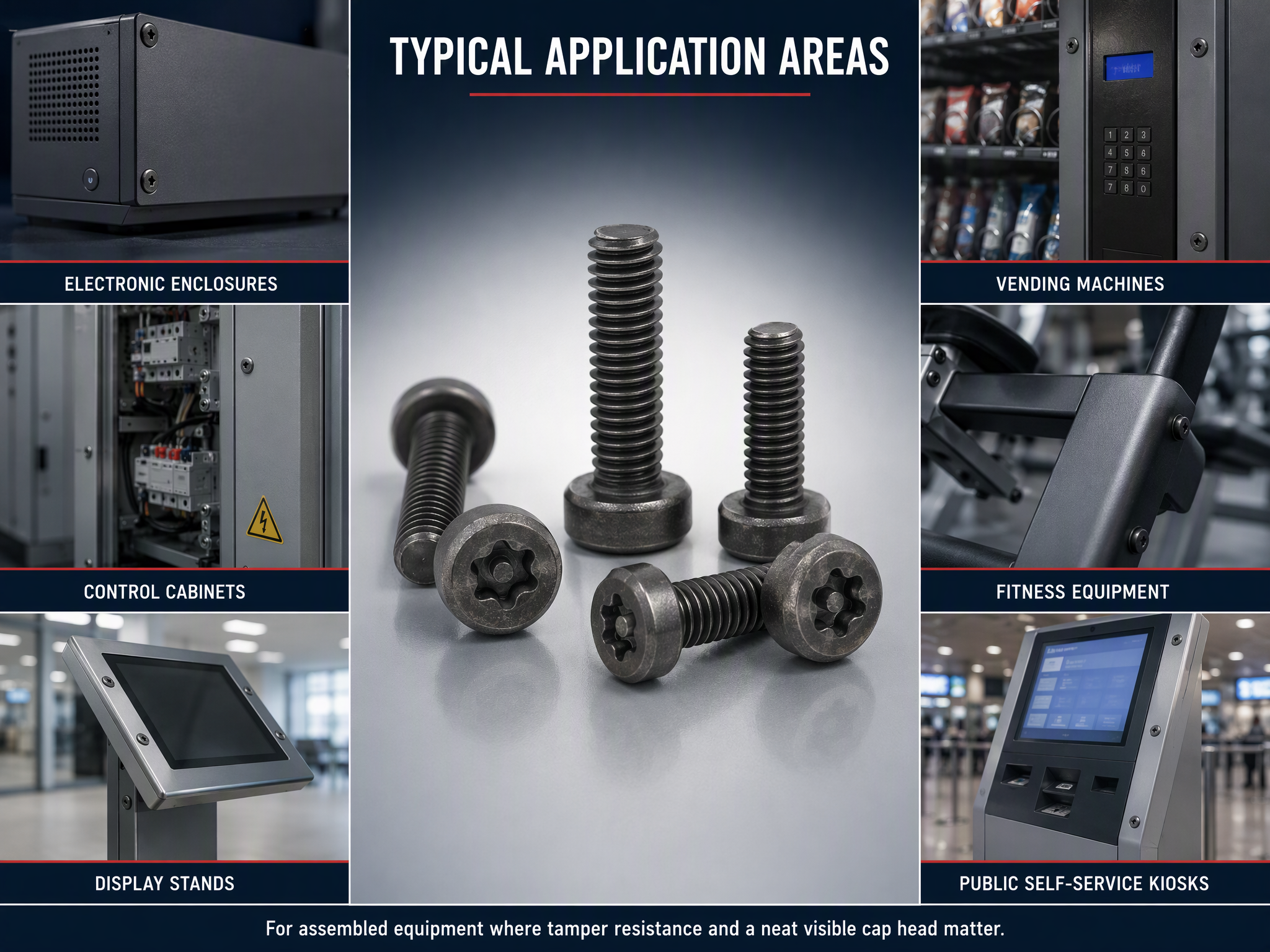

Our customers mount the cap head pin torx security screw on electronic enclosures, control cabinets, display stands, vending machines, fitness gear and public self-service kiosks. Manufacturers rely on it to shield internal wiring and delicate components from unauthorized opening. Its simple round cap head also looks tidy on exposed panels where the visual finish of your product matters.

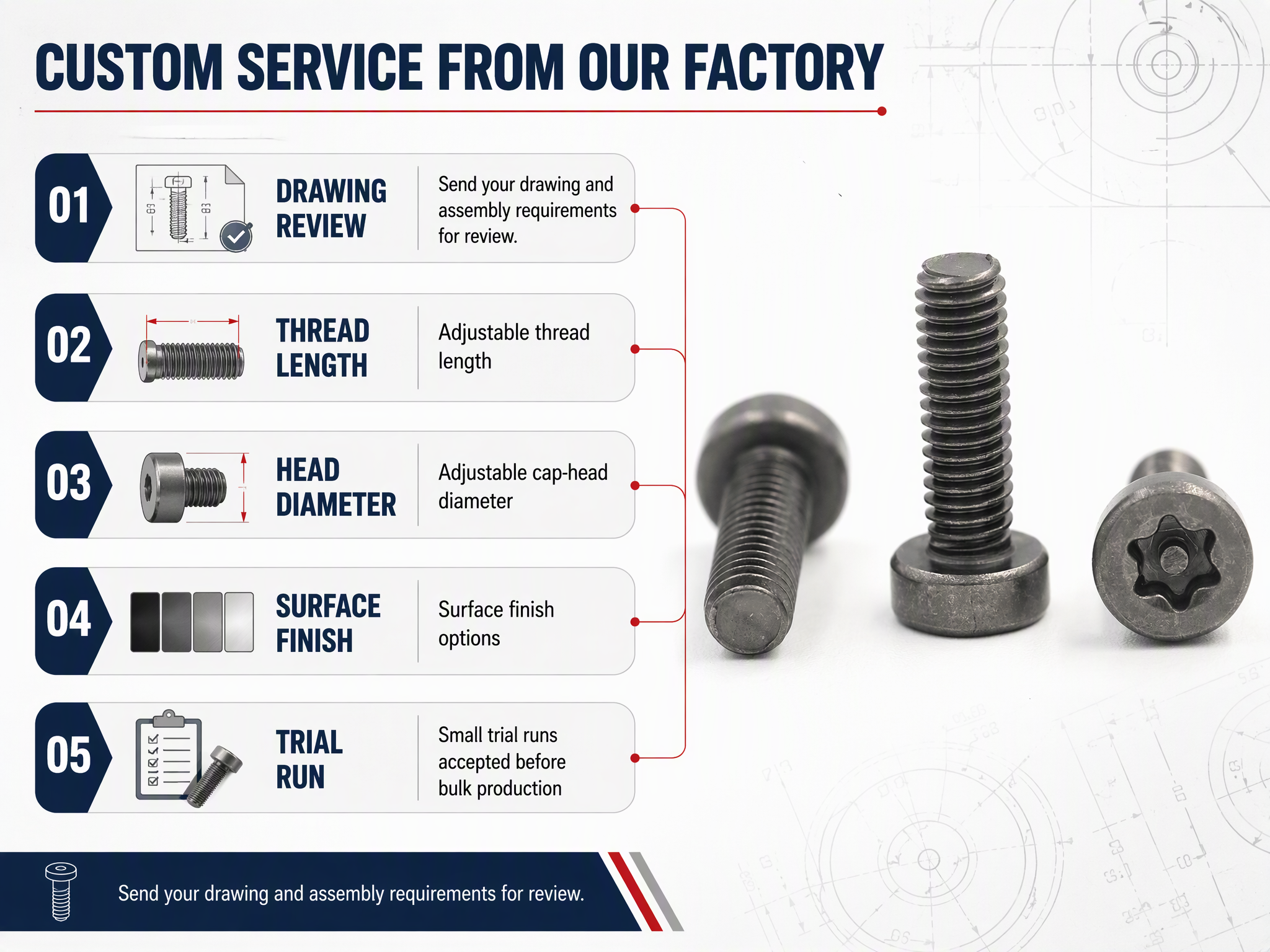

YH Fastener produces these security fasteners in our own workshop. If standard stock specs do not line up with your engineering drawing, we can adjust thread length, head diameter and surface finish to create your custom cap head pin torx security screw. Small trial runs are welcome before you lock in bulk orders. Material test sheets and RoHS compliance documents can be supplied once your purchase order is confirmed.
