Shoulder Screws
A shoulder screw, also known as a shoulder bolt, is a type of fastener with a distinct construction featuring a cylindrical shoulder section between the head and the threaded portion. The shoulder is a precise, unthreaded part that serves as a pivot, axle, or spacer, providing accurate alignment and support for rotating or sliding components. Its design allows for precise positioning and load distribution, making it a crucial component in various mechanical assemblies.
Types of Shoulder Screws
Shoulder screws come in a variety of types, each tailored to specific application requirements and design considerations. Here are some common types:

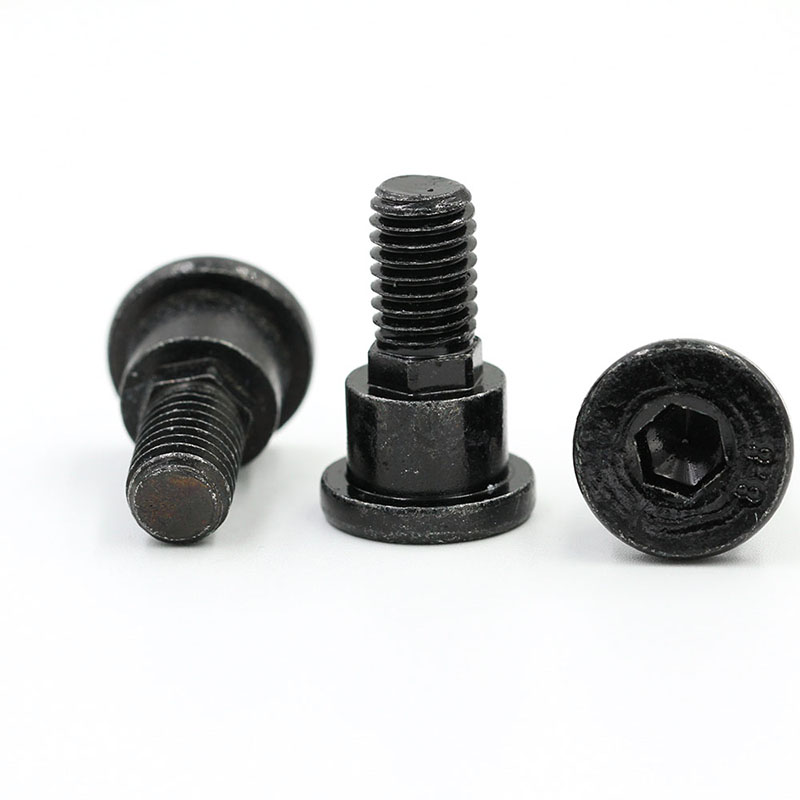

1.Socket Head Shoulder Screws
Socket-driven, offering high torque. Suitable for low-profile head needs in machinery and tooling applications.

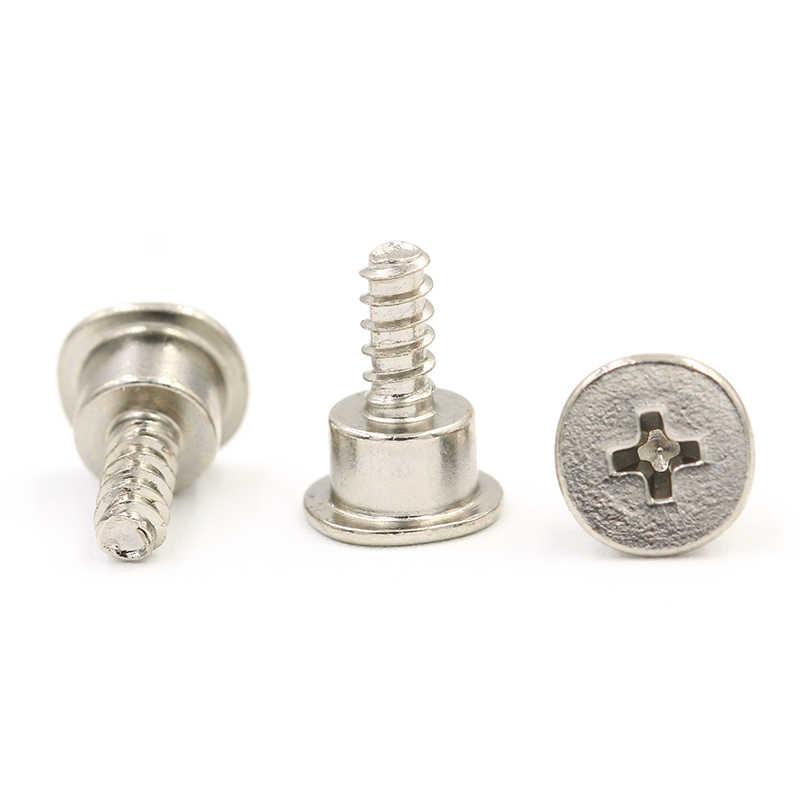

2.Cross Head Shoulder Screws
With cross drive, enable easy screwdriver use, fitting quick assembly/disassembly in household appliances, electronics.

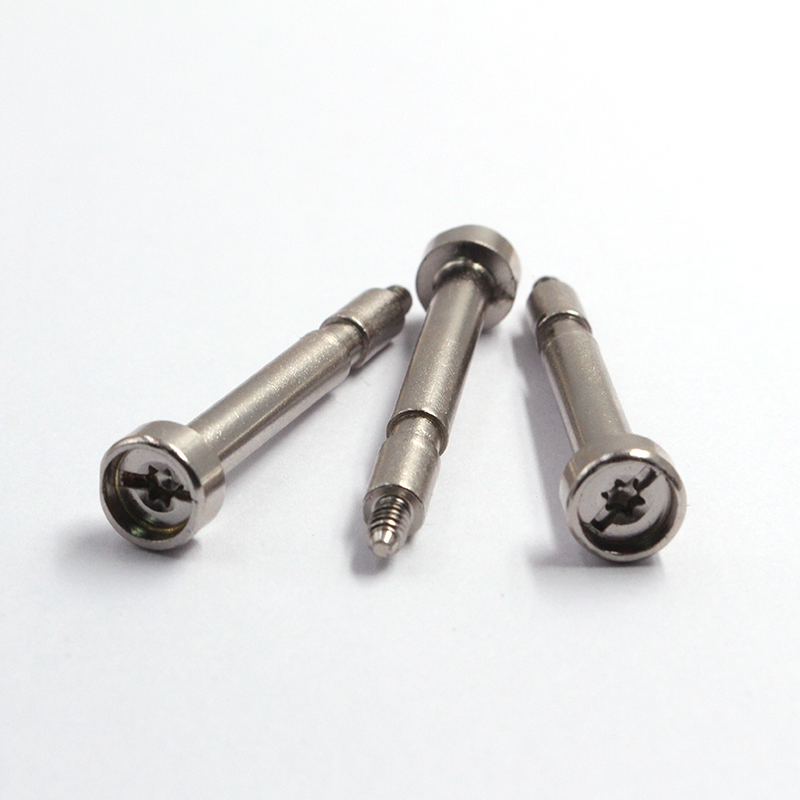

3.Slotted Torx Shoulder Screws
Slotted - Torx - driven, ensuring torque. Ideal for applications needing this dual - slot head in equipment and precision work.

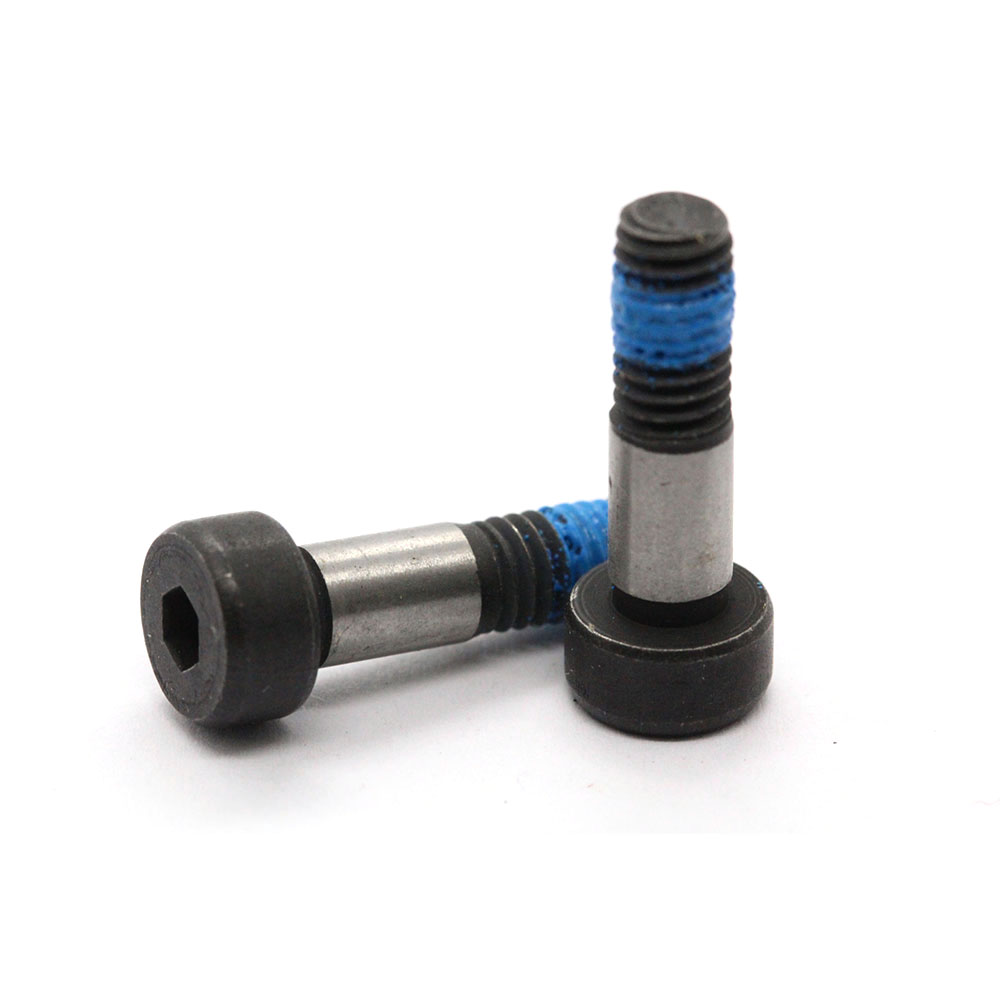

4.Anti-loosening Shoulder Screws
Anti-loosening designed, ensuring stable fastening. Suitable for vibration-prone needs in automotive and electrical equipment applications.
5.Precision Shoulder Screws
Precision-engineered, ensuring exact fits. Ideal for high - accuracy needs in instrumentation and micro - mechanical applications.
These types of shoulder screws can be further customized in terms of material (such as stainless steel, carbon steel, and alloy steel), shoulder diameter and length, thread type (metric or imperial), and surface treatment (like zinc plating, nickel plating, and black oxide) to meet the specific needs of various applications.
Applications of Shoulder Screws
Shoulder screws are widely utilized in scenarios that demand precise alignment, rotational or sliding movement, and reliable load-bearing. Key applications include:
1.Mechanical Equipment
Applications: Pulleys, gears, linkages, and cam followers.
Function: Provide a stable pivot point for rotating components, ensuring smooth movement and accurate positioning (e.g., socket head shoulder screws in machine tools).
2.Automotive Industry
Applications: Suspension systems, steering components, and door hinges.
Function: Offer precise alignment and support, withstanding vibration and load (e.g., hex head shoulder screws in suspension linkages).
3.Aerospace and Aviation
Applications: Aircraft control systems, engine components, and landing gear.
Function: Ensure high precision and reliability in extreme environments, withstanding high temperatures and pressures (e.g., high-strength alloy shoulder screws in engine parts).
4.Medical Devices
Applications: Surgical instruments, diagnostic equipment, and patient beds.
Function: Provide smooth movement and precise positioning, often requiring corrosion resistance and biocompatibility (e.g., stainless steel shoulder screws in surgical tools).
5.Electronics and Precision Instruments
Applications: Optical equipment, measuring instruments, and robotics.
Function: Offer accurate alignment for delicate components, ensuring minimal clearance and reliable operation (e.g., flat head shoulder screws in optical lenses).
How To Order Custom Shoulder Screws
At Yuhuang, the process of ordering custom shoulder screws is simple and efficient:
1.Specification Definition: Clarify material type, shoulder diameter and length, threaded portion specifications (diameter, length, and thread type), head design, and any special surface treatments required for your application./p>
2.Consultation Initiation: Reach out to our team to review your requirements or schedule a technical discussion. Our experts will provide professional advice to optimize the design of the shoulder screws for your specific needs.
3.Order Confirmation: Finalize details such as quantity, delivery time, and pricing. We’ll commence production immediately upon approval, ensuring strict adherence to your specifications.
4.Timely Fulfillment: Your order is prioritized for on-schedule delivery, ensuring alignment with project deadlines through our efficient production and logistics processes
Our customers also frequently buy:
Machine Screw
Self tapping Screw
Sealing Screw
Sems ScrewFAQ
1. Q: What is a shoulder screw?
A: A shoulder screw is a fastener with a cylindrical, unthreaded shoulder between the head and threaded portion, used for alignment, pivoting, or spacing components.
2. Q: What are the key features of shoulder screws?
A: They have a precise shoulder for accurate positioning, a threaded section for secure fastening, and a head for tool engagement, providing both alignment and clamping functions.
3. Q: What materials are shoulder screws made of?
A: Shoulder screws can be made from various materials including stainless steel, carbon steel, alloy steel, and sometimes non-metallic materials like nylon, depending on the application requirements.
