1 Why Standard Screws Are Not Enough for Waterproof Applications
Many engineers and procurement teams only discover sealing problems after mass assembly: products fail pressure tests, or customers report failures caused by moisture ingress.
Traditional solutions such as liquid sealants, rubber washers, or excessive tightening may not provide stable sealing performance over time.
The reason is that standard screws are mainly designed for mechanical fastening, not waterproof protection. Under vibration, temperature changes, or surface irregularities, small gaps may allow water or moisture to pass through.
This is why many engineers choose O-Ring sealing screws, also known as self-sealing screws or waterproof sealing screws, for applications requiring improved sealing reliability.
2 Why Do Traditional Sealing Methods Fail?
Before selecting sealing fasteners, it is important to understand common failure points:
Sealant Displacement
Liquid sealants may be unevenly distributed or damaged during screw installation, creating potential leakage paths.
Rubber Washer Deformation
Standard rubber washers may lose elasticity over long-term compression, temperature changes, or environmental exposure.
Surface Irregularities
If the mating surface is uneven, a standard screw head may not create consistent sealing pressure.
3 How O-Ring Sealing Screws Improve Waterproof Performance

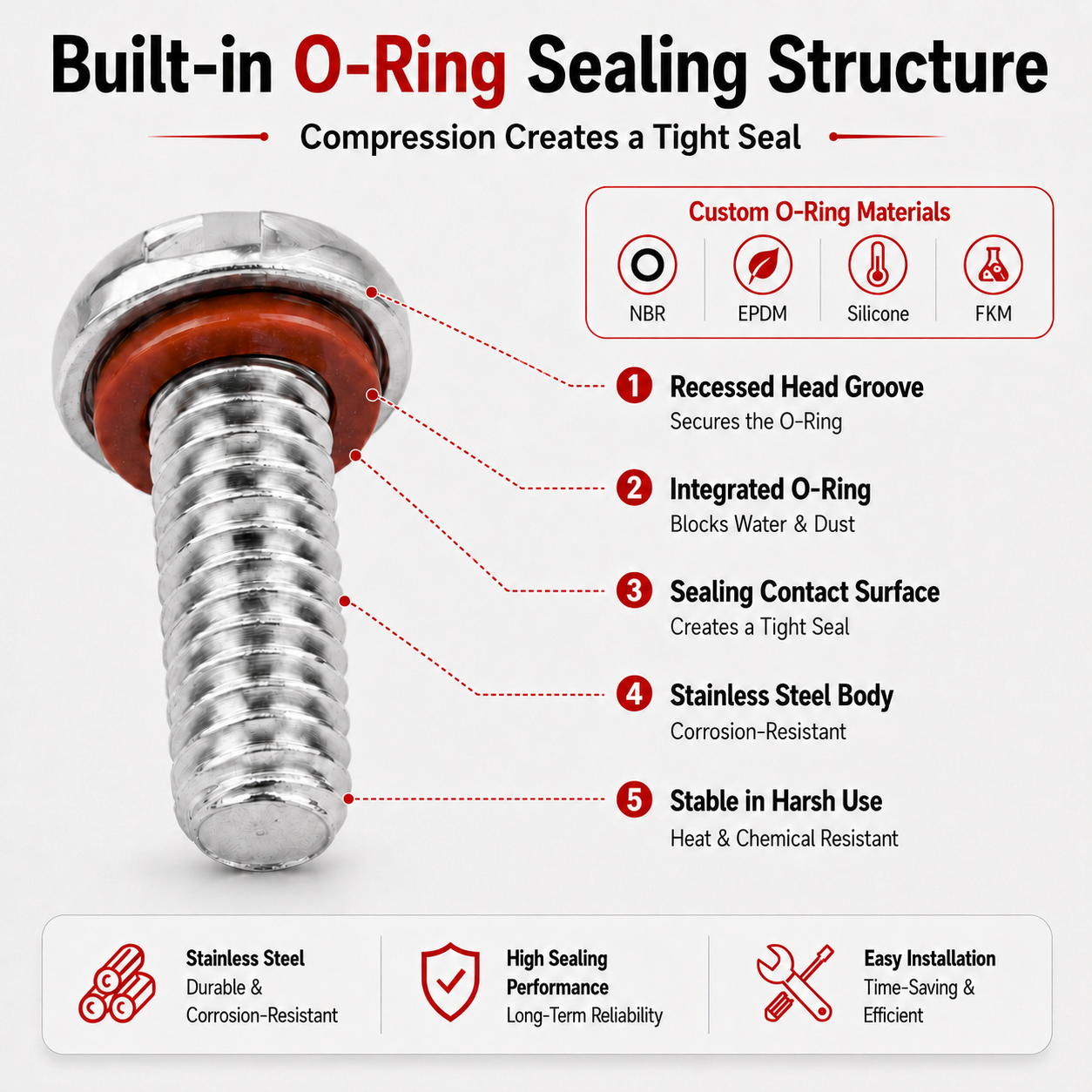

A high-performance O-Ring sealing screw features a precision groove under the screw head to hold the O-ring in position.
When tightened, the O-ring is compressed between the screw head and the mating surface, creating a controlled sealing contact area.
Compared with traditional sealing methods, waterproof sealing screws provide:
- More stable sealing performance
- Better resistance to vibration
- Reduced dependence on external sealants
- Easier assembly process
How to Choose the Right O-Ring Material?
The correct O-ring material depends on temperature, chemical exposure, and application environment.
| Material | Temperature Range | Best For | Application |
|---|---|---|---|
| NBR | -40°C to 120°C | Oil and fuel resistance | Automotive and industrial equipment |
| Silicone | -60°C to 200°C | Extreme temperature applications | Medical and food equipment |
| EPDM | -50°C to 150°C | Weather, ozone and steam resistance | Outdoor lighting and HVAC |
| FKM (Viton) | -20°C to 200°C | Chemical and high-temperature resistance | Chemical processing applications |
At Yuhuang, we provide material recommendations based on customer application requirements.
Key Factors for Reliable Sealing Performance
For custom sealing screws, engineers should focus on three important factors:
A. Groove Design
The O-ring groove must be designed according to the O-ring size, material hardness, and required compression level.
Incorrect groove dimensions may cause excessive deformation or insufficient sealing pressure.
B. Torque Control
Over-tightening does not always improve sealing performance. Excessive torque may damage the O-ring or affect screw performance.
Proper torque control helps maintain consistent sealing results.
C. Surface Finish and Tolerance
The sealing surface and groove dimensions directly affect sealing consistency.
Yuhuang controls critical dimensions according to customer drawings and application requirements to ensure stable quality.

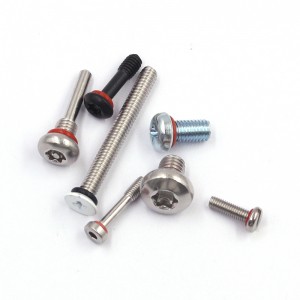

Custom O-Ring Sealing Screw Solutions from Yuhuang
For applications requiring reliable waterproof fastening, choosing the right supplier is important. Yuhuang provides:
Custom Designs
- Pan Head
- Countersunk Head
- Button Head
- Hex Socket Head
- Torx Drive
Material Options
- Stainless Steel 304/316
- Carbon Steel
- Brass
Surface Treatments
- Zinc Plating
- Nickel Plating
- Passivation
- Black Oxide
Quality Support

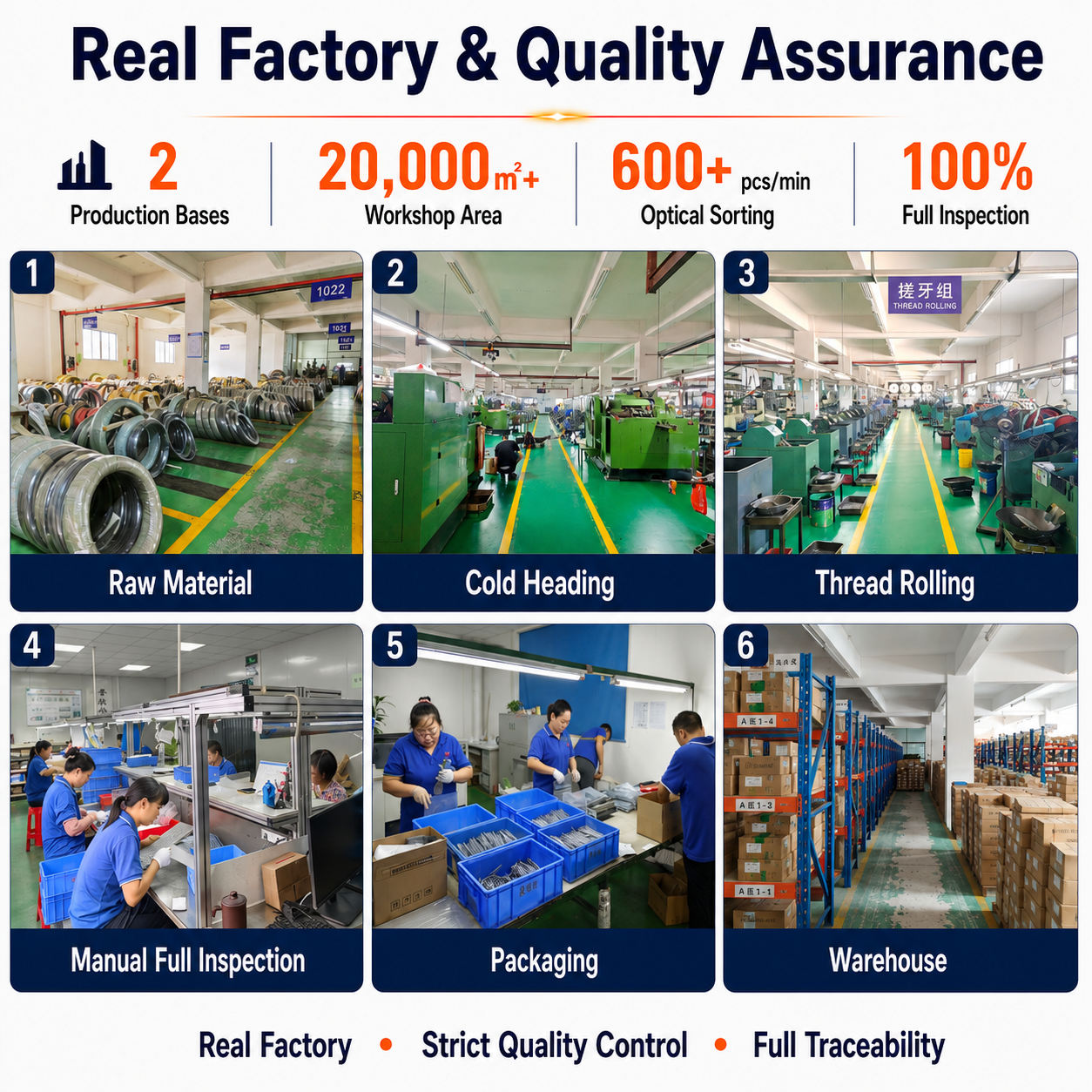

Production is supported by:
With experience in custom fastener manufacturing, Yuhuang supports customers with customized waterproof screws and sealing fastener solutions.
