Public‑facing equipment and industrial enclosures always face risks of unauthorized disassembly and man‑made vandalism. Ordinary cross‑recessed or standard torx machine screws can be removed with common hand tools easily, which brings high maintenance cost for equipment operators. More and more engineering designers turn to professional security screws to solve long‑term anti‑tampering requirements. Among multiple anti‑tamper fastener types, cap‑head torx pin security screws gain wide recognition for high torque‑bearing performance and stable anti‑theft capability.
Structural Advantages Of Cap‑Head Torx Pin Security Screws

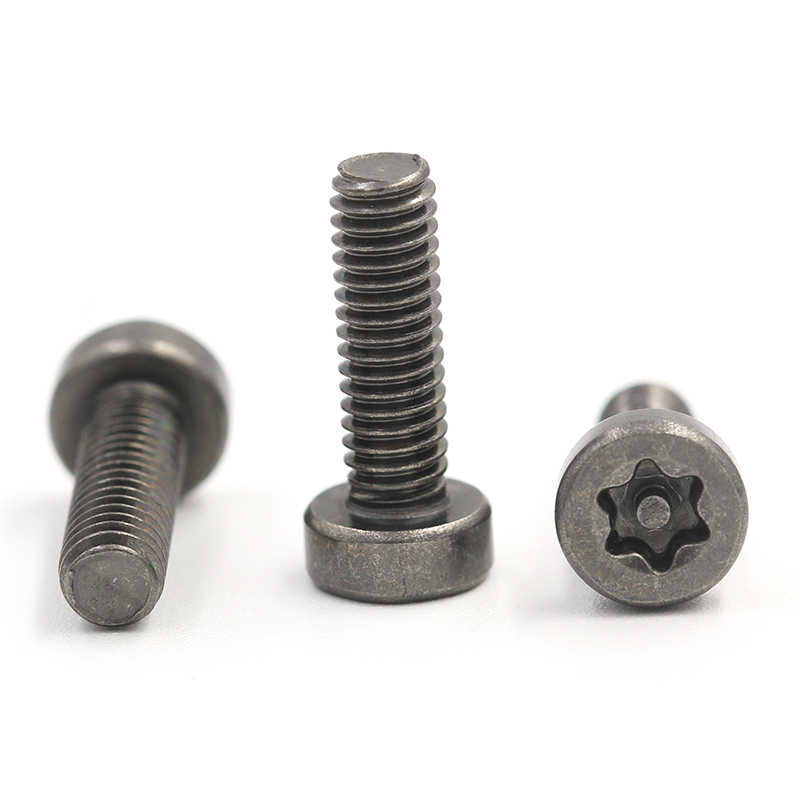

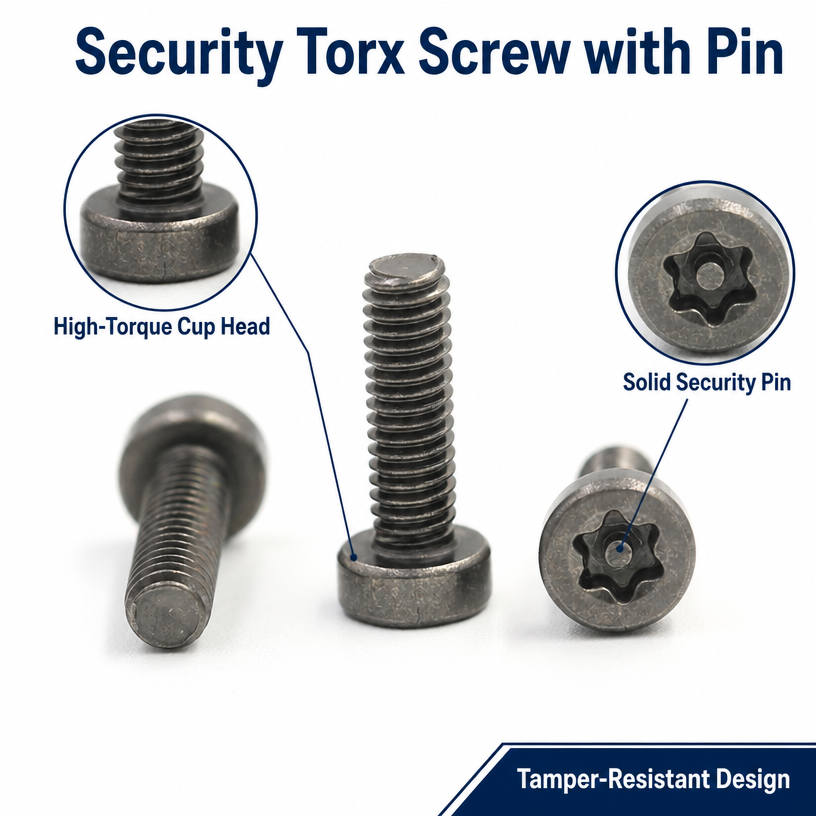

Different from button‑head security screws with rounded dome top, cap‑head adopts straight cylindrical sidewall structure. It distributes tightening force evenly and avoids head failure under high‑torque assembly scenarios. The built‑in solid center pin inside torx recess forms physical obstruction. Ordinary torx bits cannot engage, only dedicated hollow tamper‑proof torx bits can complete installation and removal. This physical barrier greatly raises the threshold of illegal disassembly, suitable for equipment that needs long‑term on‑site anti‑vandal protection.
Material & Finish Selection Guide For Different Working Conditions
For indoor cabinet and mechanical equipment projects, carbon‑steel 8.8 version with black‑oxide finish keeps good cost‑performance balance. For conventional urban outdoor public facilities, SUS304 passivated variant is the mainstream choice. When projects are located in coastal, seaside and high‑humidity environments, SUS316 passivated cap‑head torx pin security screws shall be prioritized to resist chloride corrosion and extend whole‑life service cycle. For high‑vibration automation production lines, high‑strength 10.9‑grade carbon‑steel material is recommended.
Typical Application Scenarios In Engineering Projects
At present cap‑head torx pin security screws are widely adopted in many engineering fields: traffic signal control cabinets, new‑energy charging‑pile housings, vending‑machine panels, industrial‑automation equipment shells, outdoor monitoring enclosures and shared‑device assemblies. Engineering feedback shows that adopting this type of tamper‑resistant fastener can effectively reduce equipment loss caused by man‑made disassembly, and lower the after‑sales maintenance workload for project operators.
Factory Supply Capability For Batch & Custom Project
YH Fastener keeps mature production capacity for cap‑head torx pin security screws. Common metric specifications are in stock for quick delivery. We support custom modification for thread length, head dimension and special surface treatment according to engineering drawings or physical samples. Both small‑batch prototype trial‑run and large‑volume project bulk orders are acceptable. Every shipment can provide material test documents to satisfy industrial‑project acceptance standards.
Procurement Suggestion
When selecting cap‑head torx pin security screws for anti‑vandal projects, buyers need to confirm assembly hole size, required torque value and on‑site environmental corrosion level in advance. Confirm whether supporting hollow security torx bits need to be delivered together. Send your project specification list to obtain tailored fastener proposal and factory quotation.
Post time: Aug-13-2026
