Machine screws are fasteners designed to assemble components through a matching internal thread, such as a tapped hole, nut, or threaded insert. The most useful way to understand the types of machine screws is to compare their size expression, head geometry, drive, washer arrangement, and intended assembly. This guide reviews common machine screws types for engineers and buyers without treating one configuration as suitable for every application.

What Defines a Machine Screw?

Unlike a self-tapping screw, a machine screw normally depends on an existing mating thread. The drawing should define the nominal diameter, thread specification, length, head, drive, material, finish, and any washer or sealing requirement. Yu-huang Electronics presents a broader machine screws range for applications in equipment, electronics, machinery, and other assemblies where the joint design determines the appropriate configuration.

A size may be expressed in metric form, such as an M-size designation, or through an imperial diameter and thread description. The exact size and tolerance remain application-dependent and should be confirmed by the drawing rather than inferred from a product name.

Size and Drive Comparison Table

Machine screw configuration	Size expression to confirm	Head or drive options	Typical application direction
Cross-recessed machine screw	Nominal diameter, thread, and length	Phillips or another cross recess; pan or flat head	General equipment, electronics, and sheet assemblies with a prepared thread
Hex socket screw	Diameter, thread, length, and socket depth	Cylindrical or low-profile head with internal hex drive	Assemblies requiring in-line tool access and controlled seating
Pan head machine screw	Diameter, thread, length, and bearing area	Rounded pan head with selected drive	General fastening where head clearance and bearing surface suit the joint
Flat head machine screw	Diameter, thread, length, and countersink details	Countersunk flat head with selected drive	Covers or panels designed for a more flush surface
SEMS machine screw	Screw dimensions plus washer type and position	Selected head and drive with captive washer	Production assemblies where pre-assembled washer handling is useful

The table provides selection directions, not fixed performance values. Final dimensions, tolerances, materials, and applications should be defined by the engineering drawing.

How Do Head and Drive Choices Affect Assembly?

For a cross-recessed design, review driver fit, access, alignment, and the risk of recess damage during installation. Cross recessed machine screws can be specified in stainless steel or carbon steel configurations, subject to the project environment and drawing.

A hex socket screw may be preferred when the tool approaches the fastener along the screw axis. A pan head screw may suit a joint that needs a rounded head and defined bearing area. Where a more flush surface is required, flat head machine screws should be matched with the correct countersink and mating material.

How Are Machine Screws Different from Self-Tapping Screws?

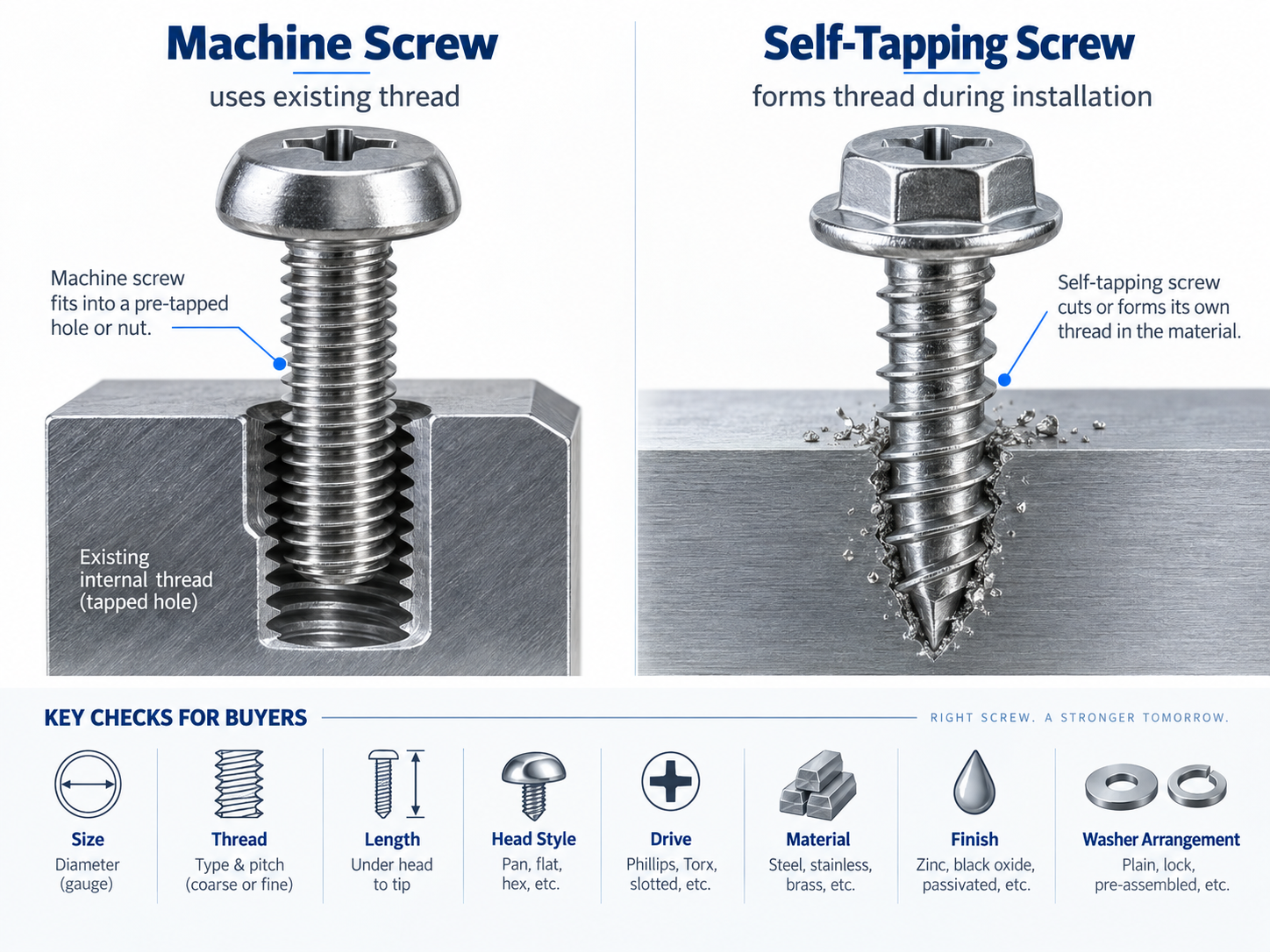

The main distinction is the source of the mating thread. A machine screw enters an existing internal thread, while a self-tapping screw cuts or forms a thread during installation, depending on its design and substrate. A self-tapping variant belongs to the latter group and should not be substituted for a machine screw without reviewing the joint design.

When Should You Specify SEMS or Washer Configurations?

Some machine screws types include captive washers. A stainless steel Phillips pan-head SEMS machine screw can be evaluated when the washer needs to remain attached during handling. A double SEMS machine screw may suit a design requiring a specific washer arrangement. Flat and spring washer combinations can also be reviewed through SEMS combination screws.

What Should Buyers Confirm Before Ordering?

Confirm the thread standard, nominal size, length, head style, drive profile, material, surface finish, washer arrangement, packaging, and installation tool. Also clarify the mating component, service access, environment, and whether the part is a machine screw or a self-tapping variant.

For non-standard requirements, Yu-huang Electronics supports custom fasteners through drawing- and sample-based OEM/ODM development, including DFM review, sample confirmation, production, and quality traceability. To discuss a special head, thread, material, finish, or washer combination, Contact the Engineering Team with your drawing or sample.
