A SEMS screw combines a machine screw with one or more captive washers, so the fastening set arrives pre-assembled and ready for installation. Compared with a separate screw and loose washer, this configuration can reduce component handling and simplify assembly. However, loose washers remain useful when a project needs flexibility in washer selection, field replacement, or a special joint stack-up. The right choice depends on the enclosure design, installation process, service requirements, and specified performance criteria.

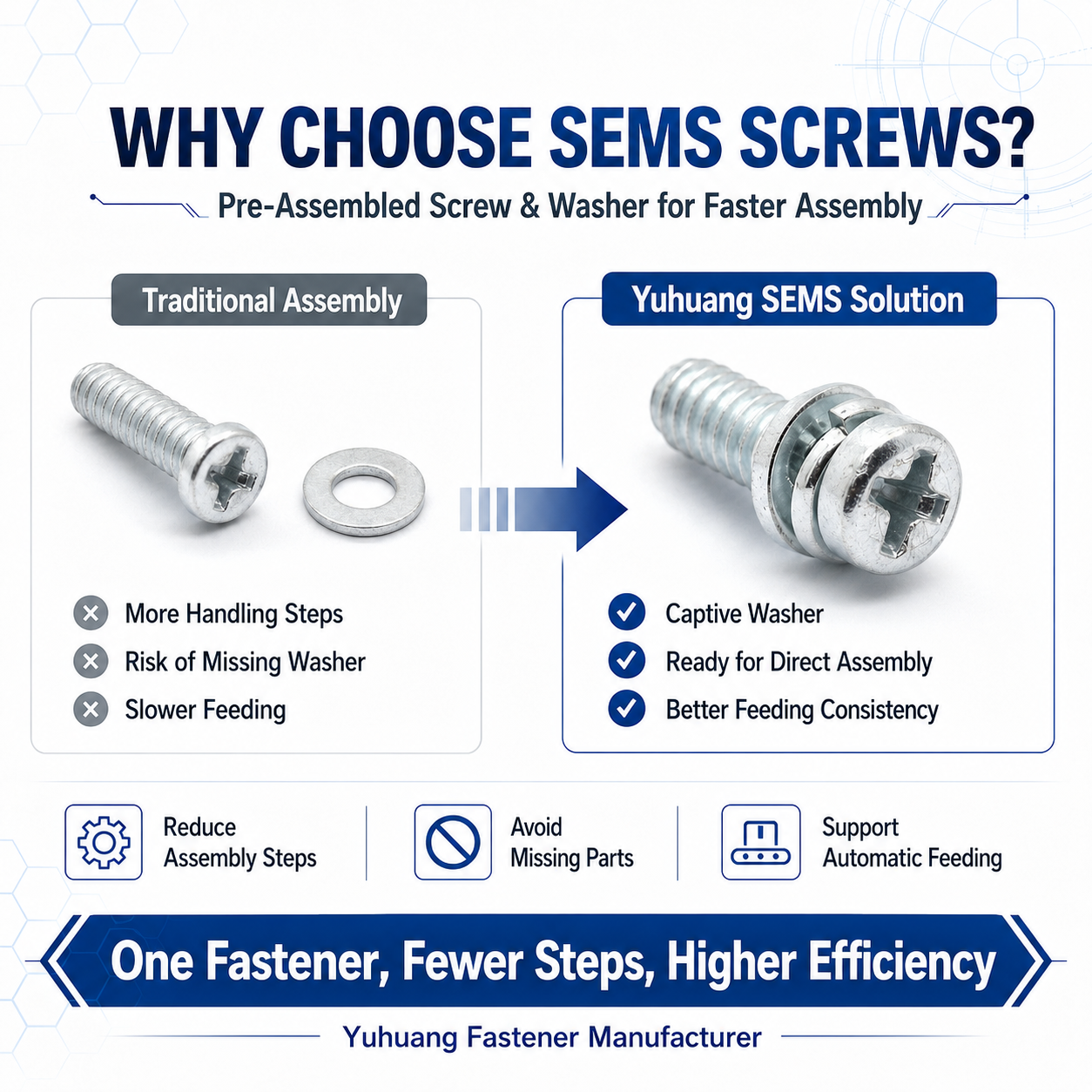

What Is the Difference Between SEMS Screws and Loose Washers?
A pre-assembled fastener keeps the washer on the screw during storage, feeding, and installation. Yu-huang Electronics provides a range of SEMS screws for applications where the screw and washer need to function as one handling unit. A typical screw with washer can help distribute load beneath the head while avoiding a separate washer-picking step.
By contrast, loose washers are supplied independently. This approach lets engineers change the washer material, thickness, outside diameter, or type without changing the screw. It may suit low-volume maintenance, frequently revised assemblies, or designs that use different washers at different fastening points. The trade-off is an additional component to handle, count, feed, and keep aligned during installation.
When Should You Choose a Pan Head SEMS Screw?
A pan head SEMS screw is often considered when a project needs a practical machine-screw head, a captive washer, and a repeatable installation sequence. The integrated washer can remain attached to the screw through packaging and assembly, which may help reduce loose-part handling in production. A double SEMS pan-head design may be evaluated when the joint requires more than one captive washer, subject to the drawing and stack-up requirements.
Head style, drive type, screw material, washer arrangement, and available tool clearance should be reviewed together. For corrosion-sensitive assemblies, engineers can discuss stainless steel SEMS screws and OEM service rather than selecting material from the fastener name alone. The final selection should follow the enclosure material, environment, assembly method, and applicable inspection plan.
When Are Loose Washers the Better Option?
Loose washers may be more suitable when the joint is still in development or when a service team must replace the washer separately. They also allow the buyer to combine a screw with a flat washer, spring washer, or another washer type according to the joint design. For example, flat and spring washer SEMS screws illustrate how washer functions can be combined, while a wave washer SEMS screw may be reviewed when the assembly calls for a different spring effect.
The practical question is whether the project values pre-assembled handling or modular component choice. Neither configuration should be selected without checking the mating surfaces, clamping area, thread engagement, service access, and installation tooling.
Which Production Factors Should Engineers Review?
For production approval, compare the complete assembly rather than only the unit price of the fastener. Review part feeding, operator handling, washer orientation, packaging, tool access, joint clearance, and the risk of missing or misplaced loose components. The screw head, washer profile, material, finish, and thread specification should also match the drawing and the intended machine screw applications.
For non-standard assemblies, a supplier should be able to review drawings or samples and advise on dimensions, thread forms, materials, finishes, and washer combinations. Yu-huang Electronics supports custom SEMS fasteners through an OEM/ODM process that can include DFM review, sample confirmation, production, and quality traceability.
Request a SEMS Screw Review for Your Assembly
SEMS screws can simplify handling when the washer arrangement is known and repeatable. Loose washers can provide greater flexibility when the joint is changing or requires separate component control. If your project needs a custom head, thread, material, finish, or washer configuration, send the drawing, sample, and assembly requirements for review. Request a SEMS screw quotation from Yu-huang Electronics to discuss a drawing-based option for your production process.
