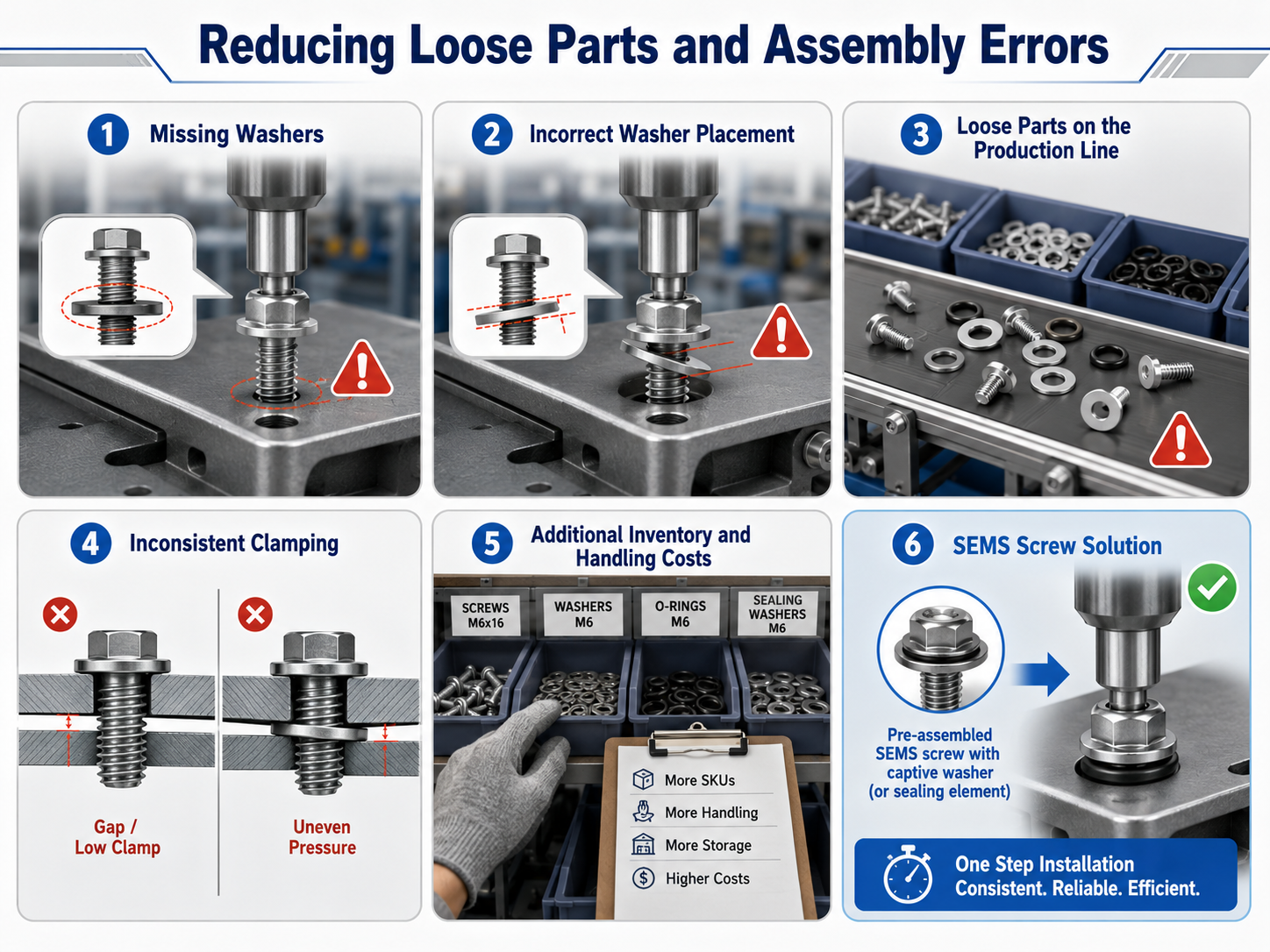

1. Reducing Loose Parts and Assembly Errors
In automotive electronics, household appliances, industrial control panels and other high-volume production lines, small parts such as screws, washers and sealing elements can become a major source of inefficiency.
When washers are installed separately, operators or automated systems must handle more components. This increases assembly time and creates several risks:
- •Missing washers
- •Incorrect washer placement
- •Loose parts on the production line
- •Inconsistent clamping
- •Additional inventory and handling costs
SEMS screws solve this problem by combining a screw with one or more captive washers. Because the washer is pre-assembled, the complete fastener can be installed in one step.
When sealing is also required, the same integrated design concept can be applied to sealing fasteners using O-rings, rubber washers or specialized sealing gaskets.
2. Why Choose Integrated Fastener Assemblies?
Compared with separately installed screws, washers and sealing components, integrated fasteners offer several practical advantages.
Faster Assembly
A pre-assembled fastener reduces the number of components that workers or automated equipment must handle. This shortens the assembly process and improves production-line efficiency.
Reduced Risk of Missing Parts
Captive washers remain attached to the screw under normal handling and assembly conditions. This helps prevent errors caused by missing washers or incorrectly installed sealing elements.
More Consistent Load Distribution
A flat washer increases the bearing area under the screw head, helping distribute clamping force and reduce damage to the mating surface. (Note: vibration resistance may need additional locking features).
Simplified Inventory Management
Using one integrated fastener instead of several separate components can reduce the number of part numbers that must be purchased, stored and supplied.
More Controlled Sealing
When a sealing washer or O-ring is integrated, the sealing element is positioned more consistently, reducing dependence on manual application of sealants.

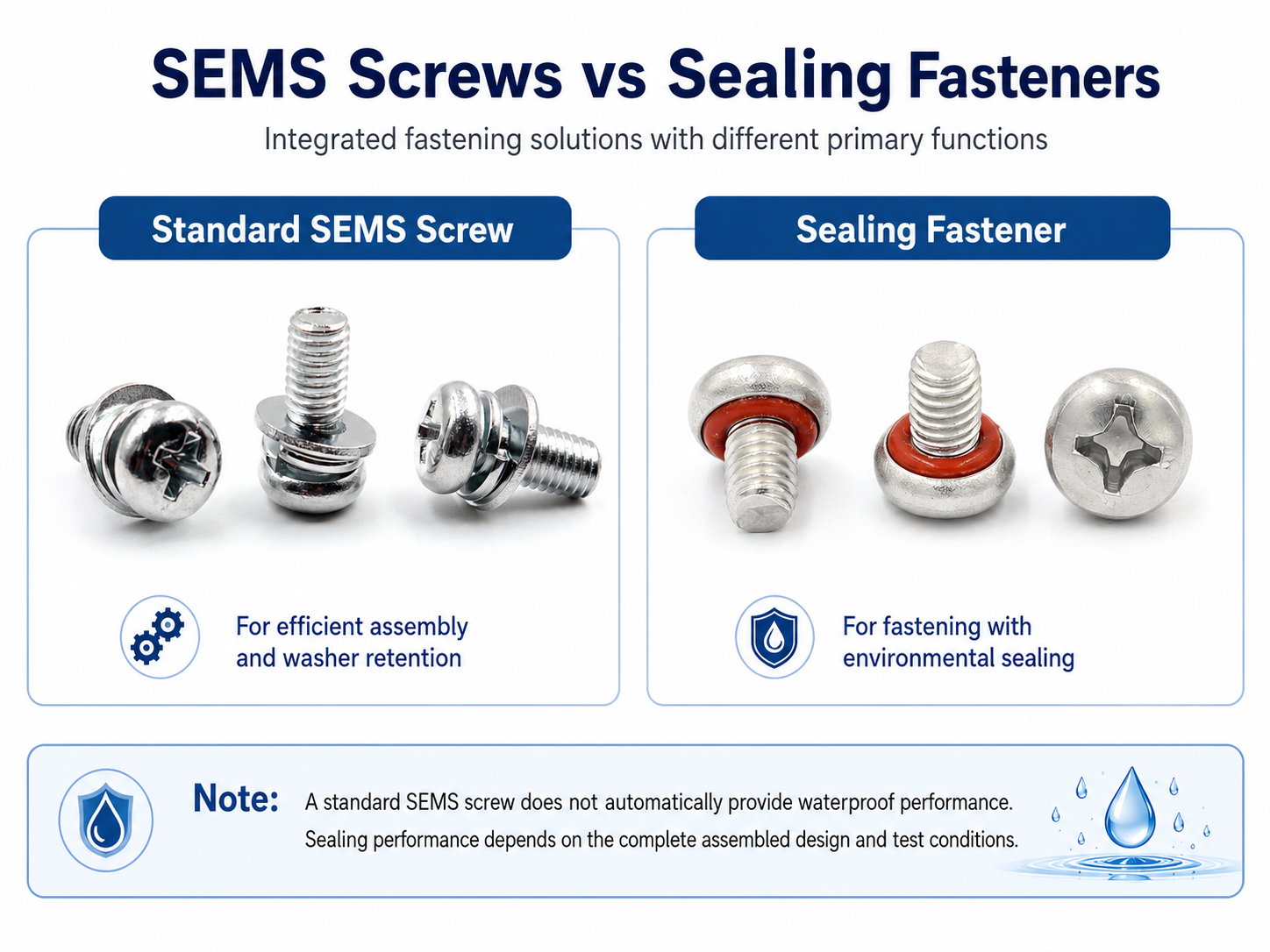

3. SEMS Screws and Sealing Fasteners Serve Different Functions
SEMS screws and sealing fasteners are both integrated fastening solutions, but their primary functions are different.
| Feature | Standard SEMS Screw | Sealing Fastener |
|---|---|---|
| Primary purpose | Faster assembly and washer retention | Fastening combined with environmental sealing |
| Typical washer | Flat, spring or tooth washer | O-ring, rubber washer or sealing gasket |
| Main benefit | Reduces loose parts and missing washers | Helps reduce moisture, dust or fluid ingress |
| Typical applications | Appliances, electronics and control panels | Outdoor enclosures, sensors and industrial equipment |
A conventional SEMS screw does not automatically provide waterproof performance. Similarly, a sealing fastener should not be described as IP67 or IP68 by itself unless the complete assembled enclosure has passed the applicable ingress-protection test.
For projects requiring both efficient installation and sealing protection, Yuhuang can develop customized fasteners that combine captive washer structures with suitable sealing elements.
4. Key Engineering Factors
The performance of an integrated fastener depends on more than simply attaching a washer or O-ring to a screw.
Washer Selection
Different washer types serve different purposes. Flat washers are mainly used to distribute load and protect the contact surface. Spring washers and tooth washers may provide additional resistance to rotation or loosening.
- Joint material
- Required clamping force
- Vibration conditions
- Electrical requirements
- Available installation space
O-Ring Groove Design
For O-ring sealing screws, the groove must provide suitable space and compression. Incorrect groove-to-O-ring volume ratio can cause insufficient sealing, seal extrusion, or reduced service life.
Installation Torque
Over-tightening does not always improve sealing performance and may damage the O-ring or deform the sealing surface. Suitable torque depends on material, size, and joint structure.
Material and Surface Treatment
Yuhuang supports materials including: Stainless Steel 304, Stainless Steel 316, Carbon Steel, and Brass. Surface treatments include Zinc Plating, Nickel Plating, Passivation, Black Oxide, etc.

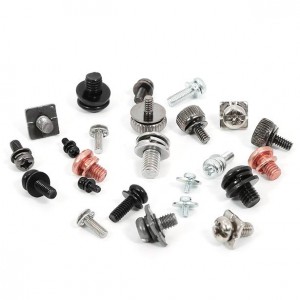

Custom SEMS Screws and Sealing Fasteners from Yuhuang
Since 1998, Yuhuang has manufactured standard and custom fasteners for different industrial applications. Our customization capabilities include:
- Screw sizes from M0.8 to M24
- Flat, spring and tooth washer combinations
- O-ring and sealing-washer assemblies
- Custom head, drive, thread and groove designs
- Stainless steel, carbon steel and brass
- Production according to drawings or samples
Quality-control support can include:
Material verification, dimensional inspection, hardness testing, torque testing, salt-spray testing, and sealing or pressure verification when specified.
Frequently Asked Questions
Q1: How can I achieve both high assembly speed and reliable sealing?
A: Use an integrated sealing fastener. By combining a captive washer, sealing washer or O-ring into one screw assembly, Yuhuang can reduce secondary sealing operations, shorten assembly time and improve sealing consistency.
Q2: How do I prevent missing or fallen washers during mass production?
A: Use a customized SEMS screw with a captive washer structure. The washer is assembled before thread rolling, allowing it to remain captive under normal handling and assembly conditions.
Q3: Why is my current waterproof sealing screw still leaking?
A: Leakage may result from an incorrect groove-to-O-ring volume ratio, incompatible elastomer material, unsuitable compression, improper torque or an uneven mating surface. Yuhuang can help optimize the sealing structure.
Q4: Can you optimize a fastener design that is too complex or costly to produce?
A: Yes. Our DFM team can review your drawing and recommend adjustments to the head style, groove geometry, washer structure, material or manufacturing process to make it more practical to manufacture.
Q5: What is required for a fast technical evaluation and quotation?
A: Please provide: A 2D or 3D drawing (or physical sample); Operating temperature, fluid type and pressure; Required material, surface treatment and quantity; and the current assembly or sealing problem.
