In many industrial products, a small leakage problem can cause a major failure. Outdoor electronic housings, automotive components, battery systems, and industrial equipment often need protection against water, dust, oil, and moisture.
Many engineers discover that the leakage does not come from the housing itself, but from the screw installation points. Standard screws create a possible path between the fastener and the mounting surface, allowing moisture or fluid to enter over time.
A properly designed Sealing Screw with O-Ring helps solve this problem by integrating a sealing element into the fastener structure, providing a more reliable barrier without adding complex sealing components.
How Does a Sealing Screw Work?

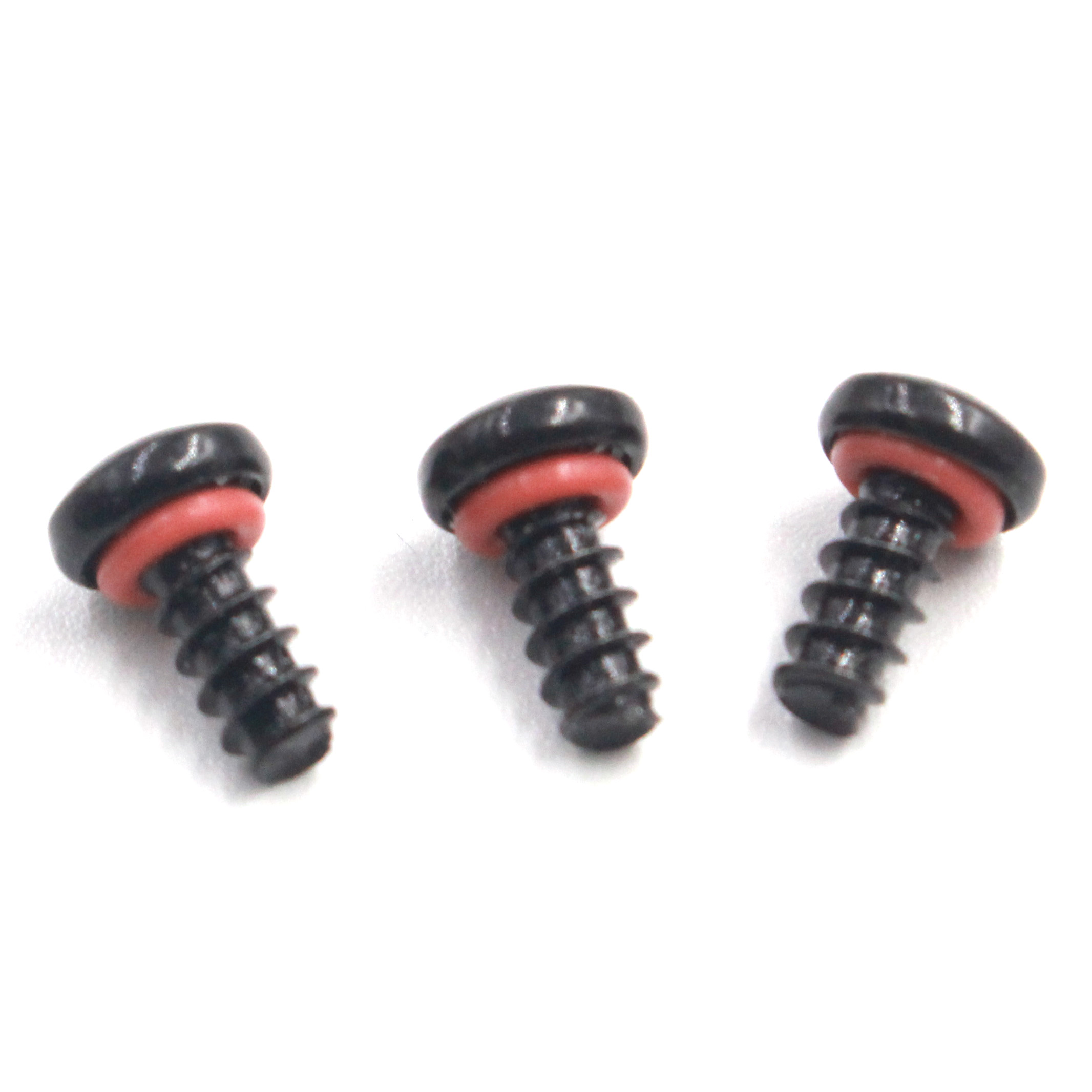

Unlike standard screws, a sealing screw is designed with a special groove or undercut area below the screw head. An elastomer O-Ring is installed into this groove and remains fixed during assembly.
When the screw reaches the correct installation torque, the O-Ring compresses against the mating surface. This compression creates a sealing barrier around the screw entry point and helps prevent water, dust, or fluid from entering the assembly.
The sealing performance depends on several factors, including:
- O-Ring material
- Groove design
- Compression level
- Surface condition
- Installation torque
A well-designed sealing screw is not only about adding an O-Ring. The entire fastening system needs to be matched correctly.
How to Choose the Right O-Ring Material?
Selecting the correct O-Ring material is one of the most important steps when choosing a waterproof screw.
Different environments require different sealing materials:
| O-Ring Material | Suitable Applications |
|---|---|
| NBR | Oil, fuel, hydraulic systems |
| EPDM | Outdoor equipment, water, weather exposure |
| Silicone | Wide temperature ranges and special environments |
| FKM | Chemicals, high temperature, demanding applications |
For example, EPDM provides excellent resistance to water and outdoor weather conditions, but it is not recommended for applications involving mineral oils.
NBR performs well in oil-related environments, while FKM is often selected for high-temperature or chemical applications.
Choosing the wrong O-Ring material is one of the most common reasons for sealing failure.
What Should Buyers Consider Before Ordering Sealing Screws?
Many customers focus only on screw size, but sealing performance depends on several additional factors.
1 Application Environment
Buyers should consider:
- Exposure to water or humidity
- Temperature range
- Chemical contact
- Outdoor or indoor installation
- Required protection level
A sealing screw used in an outdoor electrical enclosure may require a different design from a sealing fastener used in automotive fluid systems.
2 Screw Material Selection
The screw material also affects long-term reliability.
Common options include:
- Stainless Steel 304
- Stainless Steel 316
- Carbon Steel
- Alloy Steel
Stainless steel sealing screws are often selected for outdoor and corrosive environments because they provide better corrosion resistance.
Carbon steel sealing screws are commonly used in applications where higher strength and cost efficiency are important.
3 Installation Torque Control
Over-tightening does not always improve sealing performance.
Excessive torque may:
- Damage the O-Ring
- Deform the sealing groove
- Reduce sealing consistency
Proper torque control allows the O-Ring to achieve suitable compression without causing damage.
4 Groove and Surface Quality
The O-Ring groove needs accurate dimensions to maintain stable compression.
If the groove is too shallow, the O-Ring may be damaged during installation.
If the groove is too deep, the O-Ring may not receive enough compression to create an effective seal.
The mating surface quality also affects sealing performance because surface defects can create leakage paths.

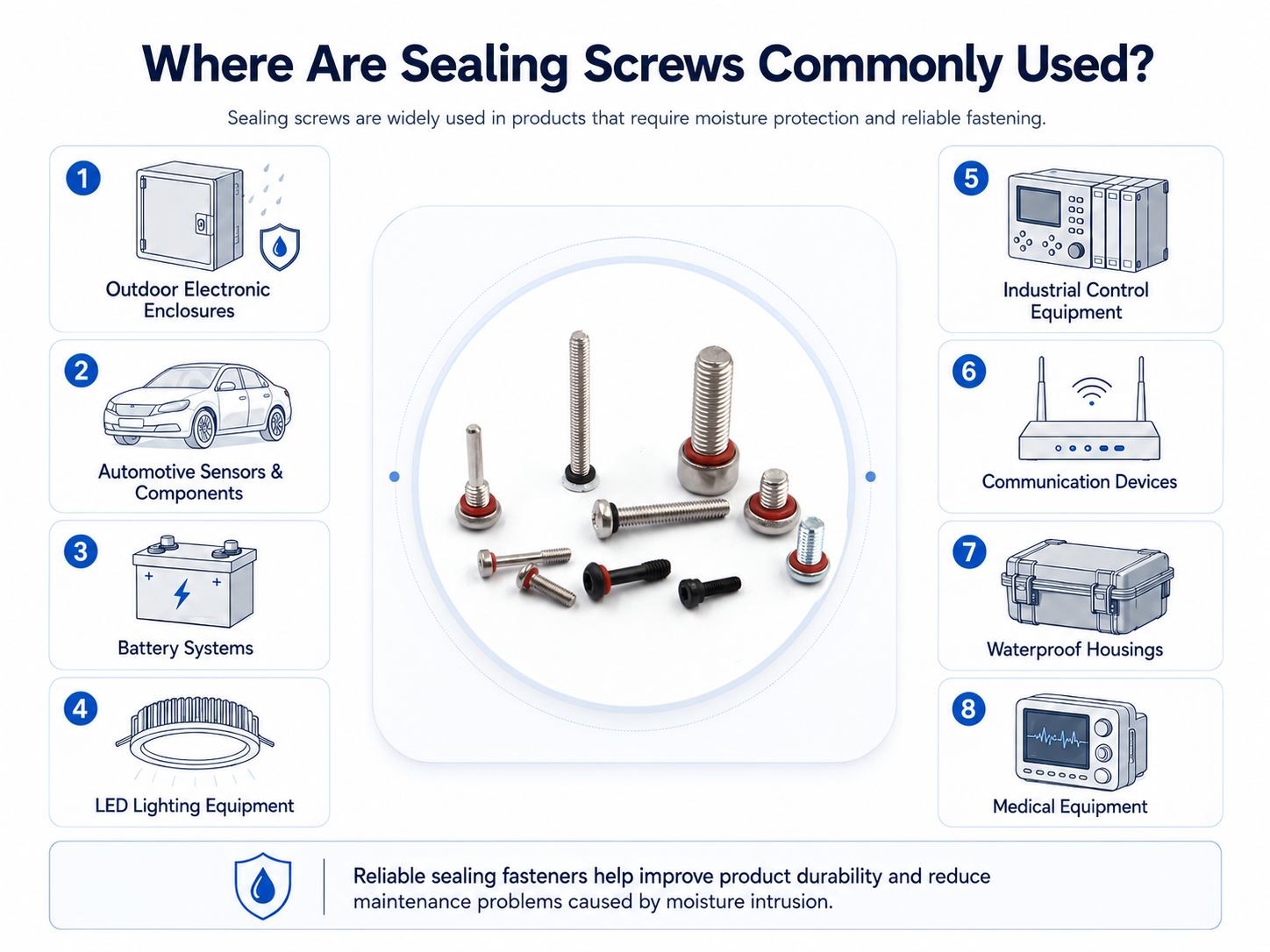

Where Are Sealing Screws Commonly Used?
Sealing screws are widely used in products that require moisture protection and reliable fastening.
Common applications include:
In these applications, a reliable sealing fastener helps improve product durability and reduce maintenance problems caused by moisture intrusion.
Custom Sealing Screw Manufacturing Solutions
Yuhuang provides customized Sealing Screws, O-Ring Screws, and Waterproof Fasteners based on customer drawings, samples, and application requirements.
Our capabilities include:
- Stainless steel, carbon steel, and alloy steel materials
- Multiple head and drive designs
- NBR, EPDM, Silicone, and FKM O-Ring options
- Customized dimensions and sealing structures
- Dimensional inspection and performance verification
From small precision sealing screws for electronic devices to larger sealing fasteners for industrial equipment, we help customers develop reliable fastening solutions for different environments.
