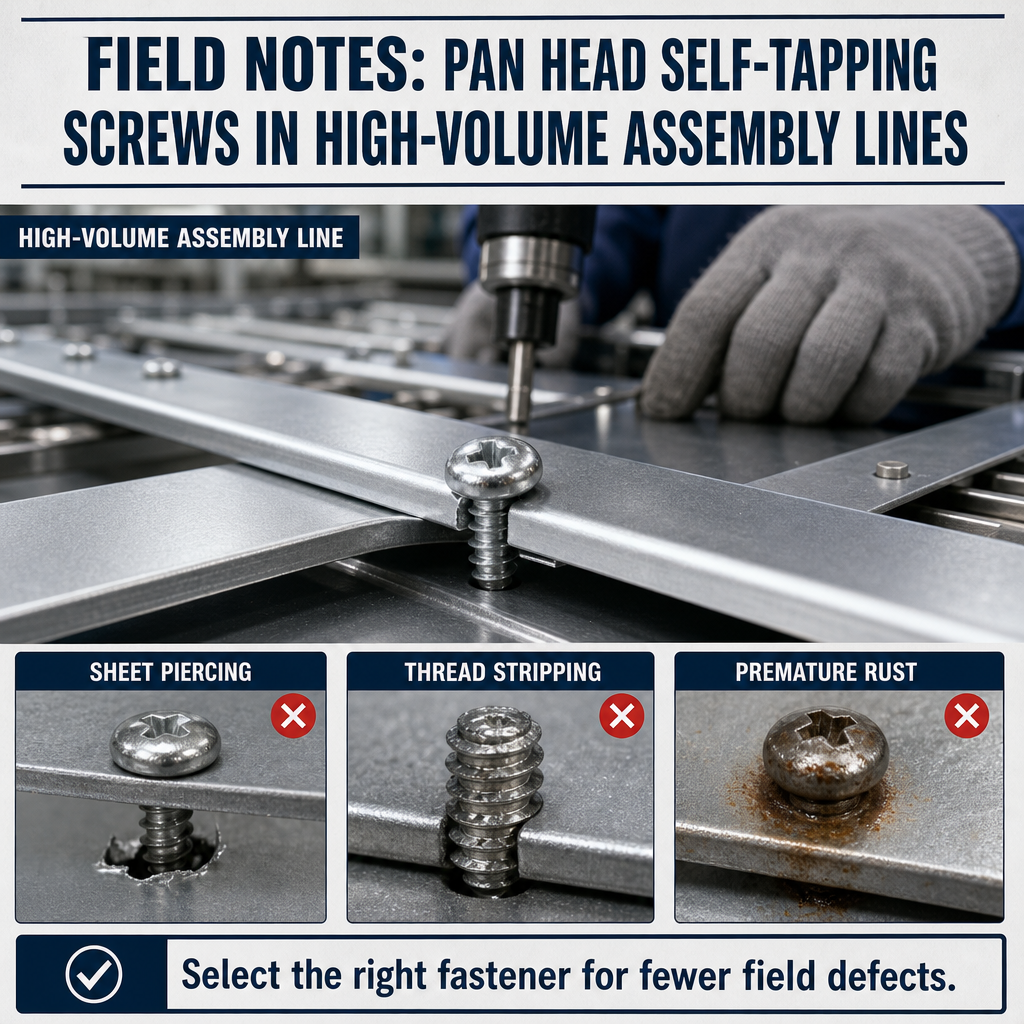

Assembly crews frequently run into headaches securing thin metal sheets. Common pain points include sheet piercing, thread stripping and premature rust after going into service. Selecting suitable self tapping screw can resolve most of these field‑level defects.

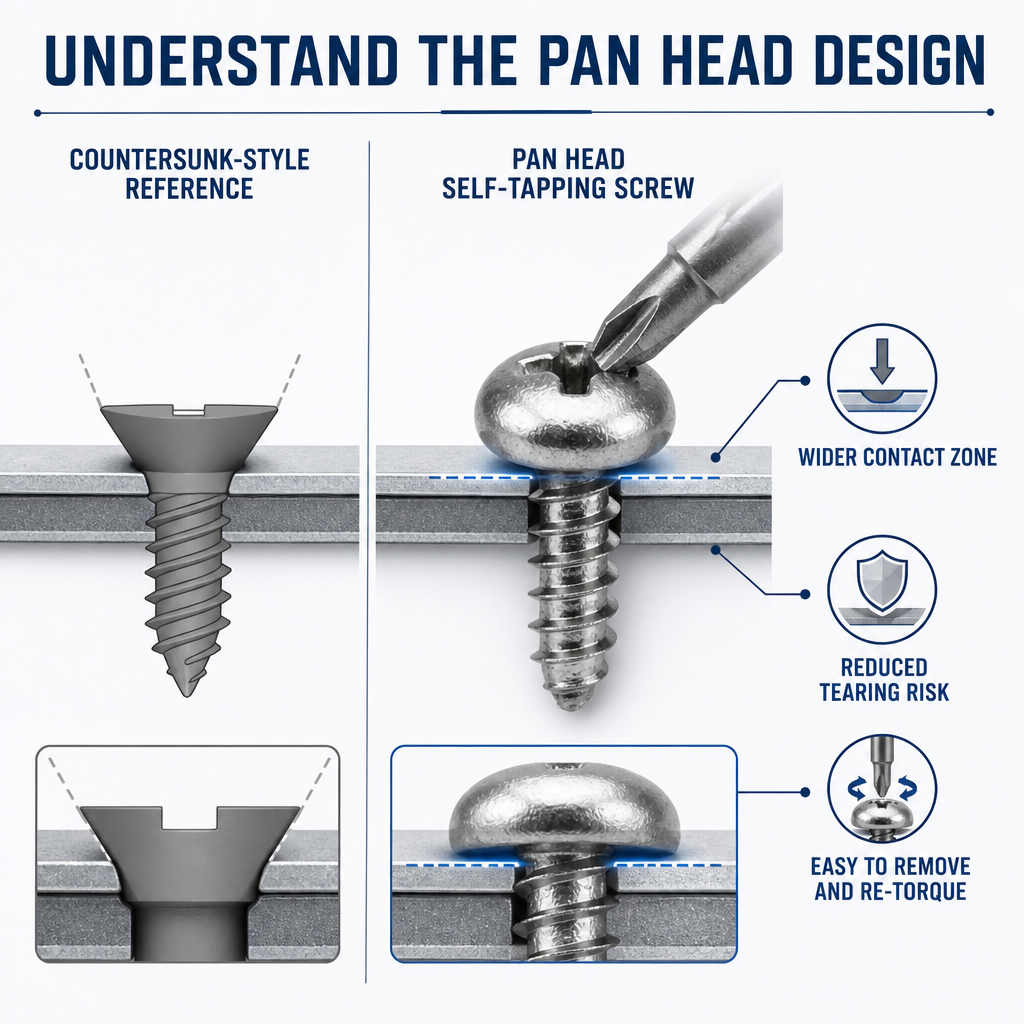

Understand The Advantage Of Pan Head Design
Unlike countersunk‑style fasteners, self tapping screw spread clamping load via wider contact zone. This cuts tearing risk for thin sheets and works fine where flush surface finish is not required. Technicians can remove and re‑torque these screws easily during product audit or component swap‑out.

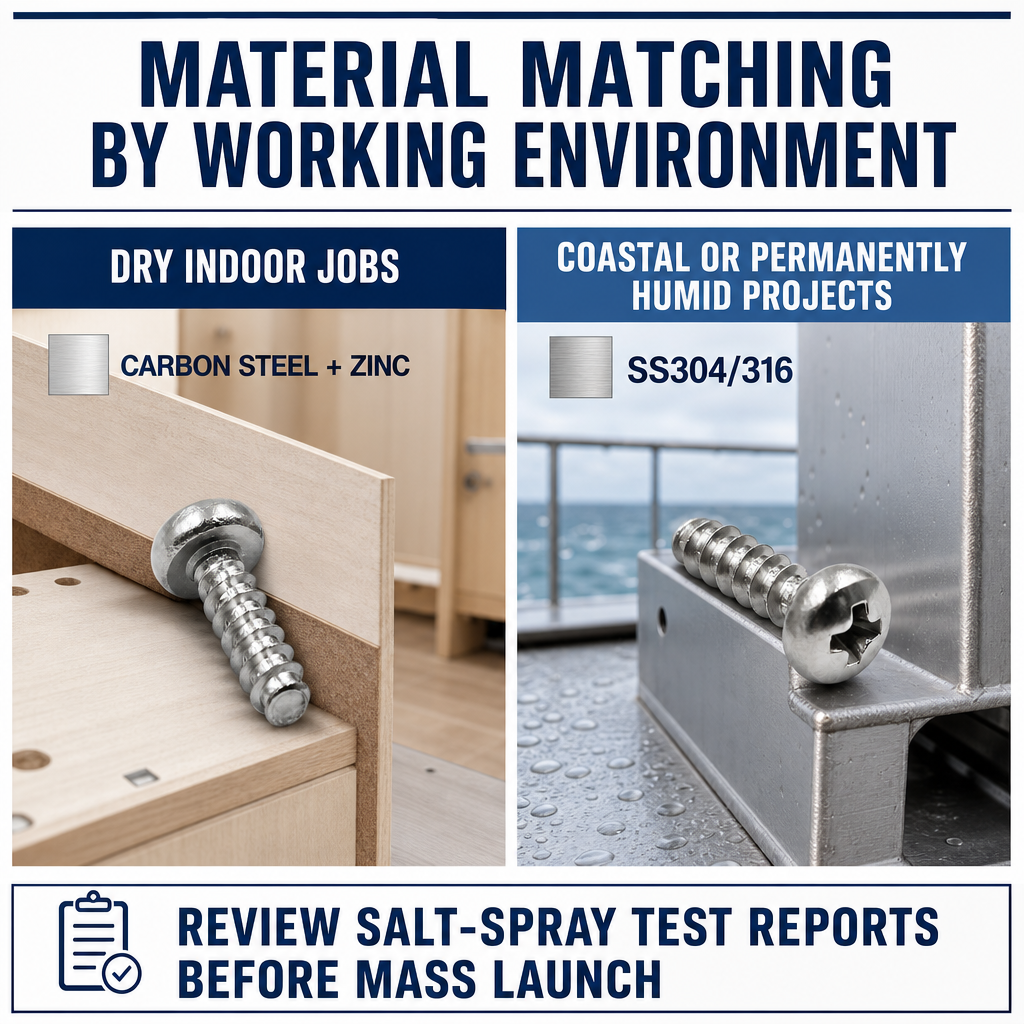

Material Matching By Working Environment
Carbon‑steel pan‑head units deliver cost benefits for dry‑indoor jobs such as cabinet and furniture build‑ups. Zinc plating delivers baseline anti‑corrosion performance. Projects located coastal or permanently humid ought to specify self tapping screw grade 304 or 316. Always review salt‑spray test reports before mass launch for moisture‑exposed equipment.

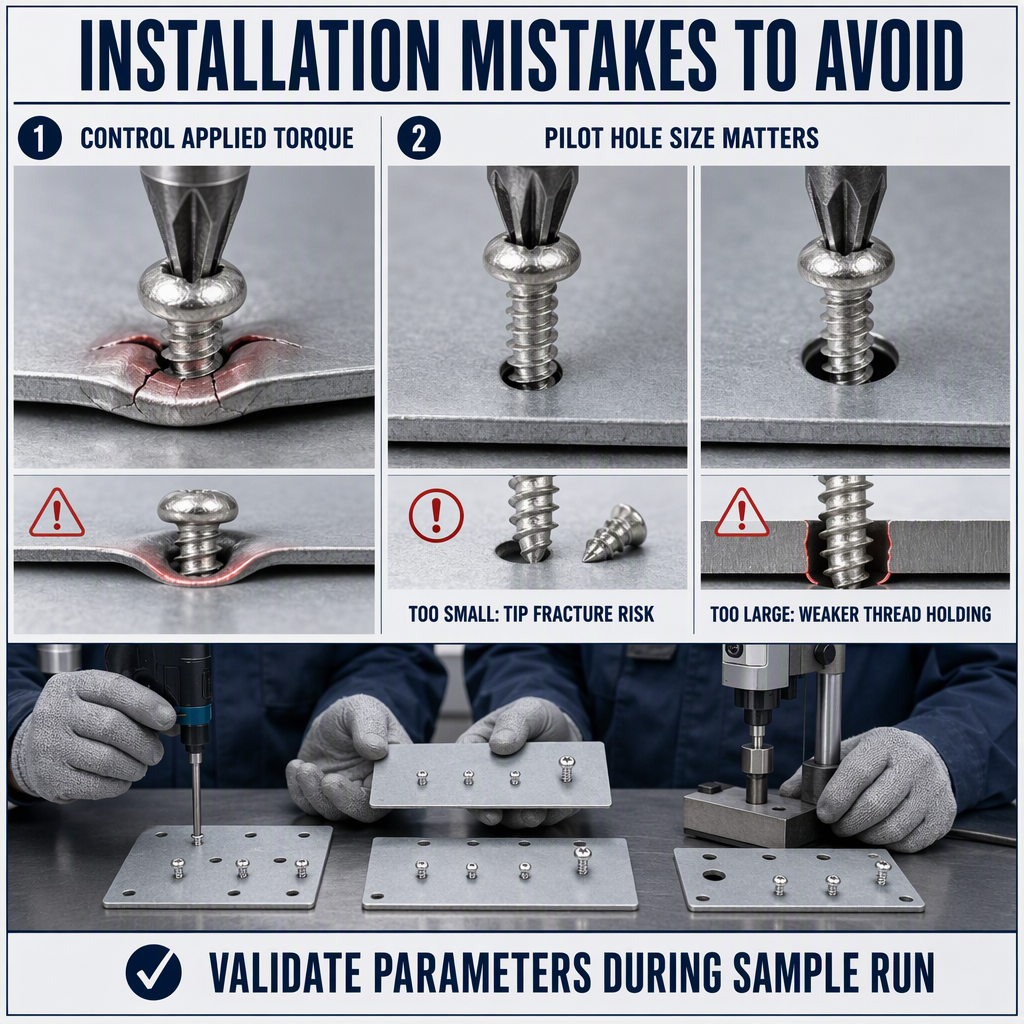

Installation Mistakes To Avoid
Excessive applied torque tops the list for sheet‑related damage. Operators must lock proper torque limits on electric screwdriver equipment. Pilot‑hole dimension also matters greatly: undersized holes risk tip fracture while oversized openings weaken formed‑thread holding strength. Our technical staff regularly help customers validate pilot‑hole parameters in sample‑run phase.
While placing large purchase orders, confirm standard compliance, heat‑treatment rules and surface‑coating requirements up‑front. Custom head marking and modified thread profile are achievable for branded finished goods. Always complete physical sample validation on your actual workpiece substrate. When project conditions demand special‑spec custom fastener, our engineering team evaluates optimal thread form and surface treatment options.
We focus on custom‑built fastener solutions serving global industrial purchasers. Our facility produces standard DIN / ISO fasteners plus fully non‑custom screw items. Every lot receives strict quality screening to satisfy cross‑border import specifications.
Reach out with your project details for material guidance, pilot‑hole reference or custom modification consultation. Our engineers deliver practical assembly‑oriented suggestions。
