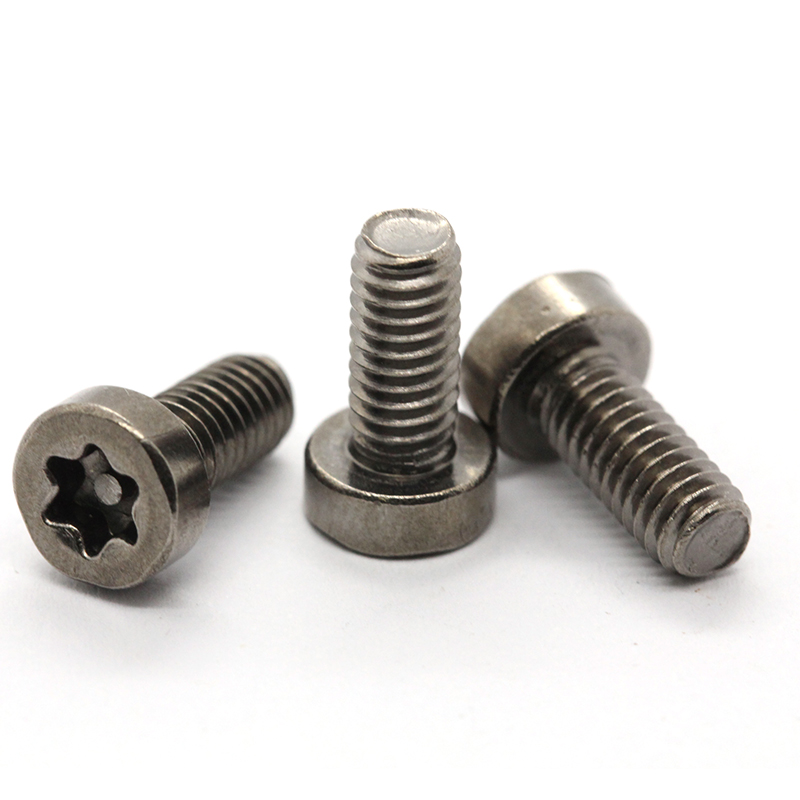

Torx Socket Cap Security Screws with Pin | High-Grade Tamper Proof Fasteners |

Brief Overview

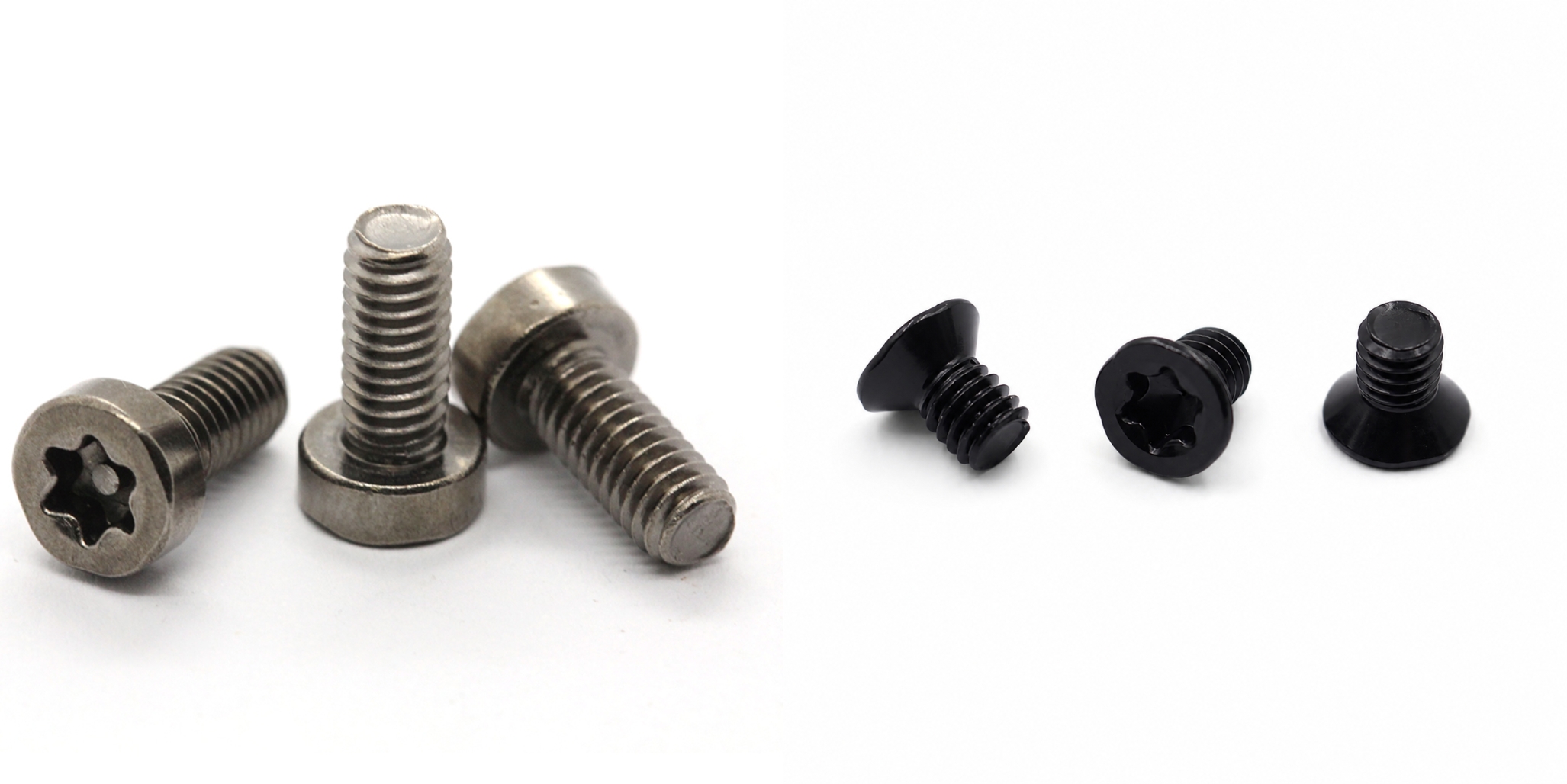

High-security outdoor facilities such as power cabinets, rail transit equipment and high-end security devices face higher risks of unauthorized disassembly, internal component theft and vandalism. Standard hex or ordinary Torx screws can be loosened with common tools, failing to meet premium anti-theft requirements. Our torx socket cap head security screws adopt a 6-lobe Torx drive with a solid central tamper-proof pin, which can only be installed and removed with matching hollow-tip Torx security wrenches. The larger contact area of Torx groove delivers higher torque transmission without stripping, combined with 304/316 stainless steel corrosion-resistant materials, providing upgraded anti-tamper and anti-theft performance for long-term outdoor operation, suitable for all high-security public and industrial facility scenarios.

Main Application Scenarios

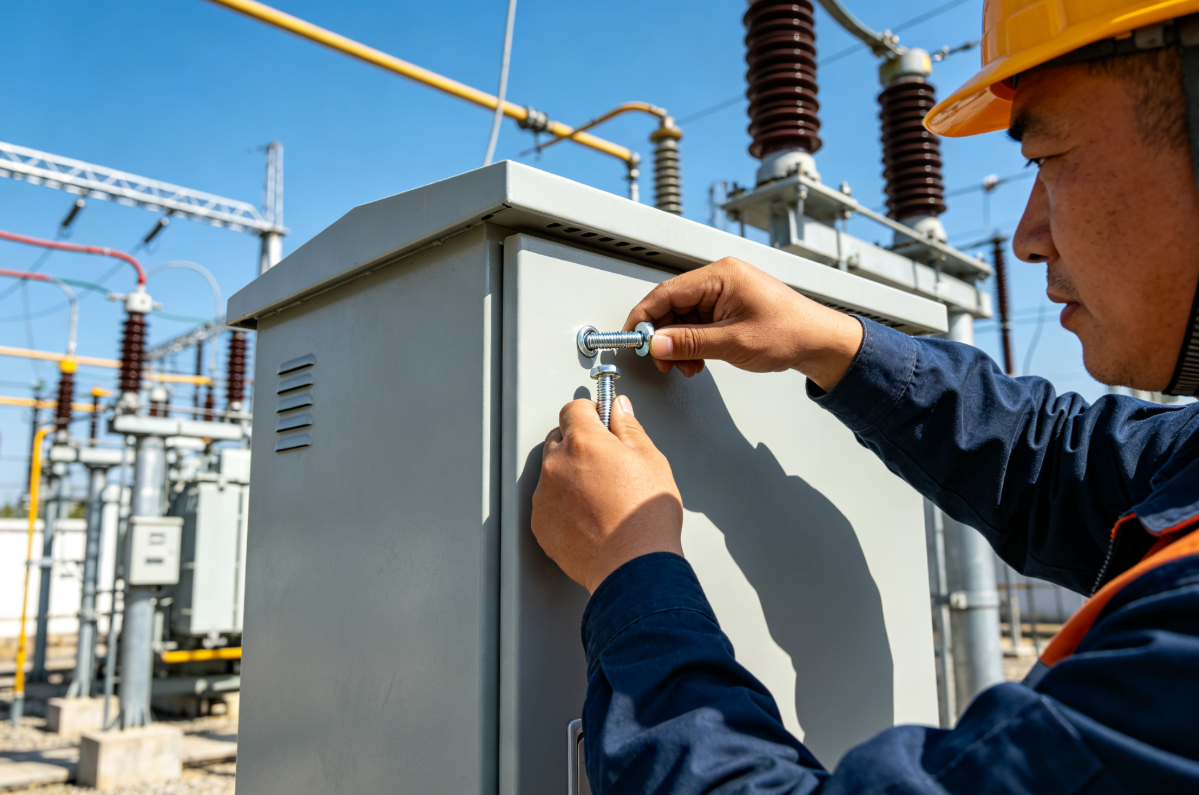

1. Power Grid Facilities & Outdoor Electrical Cabinets

Widely used for outdoor distribution cabinets, power transformer boxes, grid monitoring equipment and street lamp control boxes.

Working Requirements

High-grade tamper-proof structure to prevent unauthorized disassembly and copper part theft
High torque bearing capacity for heavy-duty fastening of electrical equipment
Weather and corrosion resistance for all-year outdoor exposure

Matching Product

304 stainless steel torx socket cap security screws with pin, M5-M8 mainstream sizes, passivated finish with 72-hour salt spray resistance. Optional nylon locking patch for vibration-proof performance.

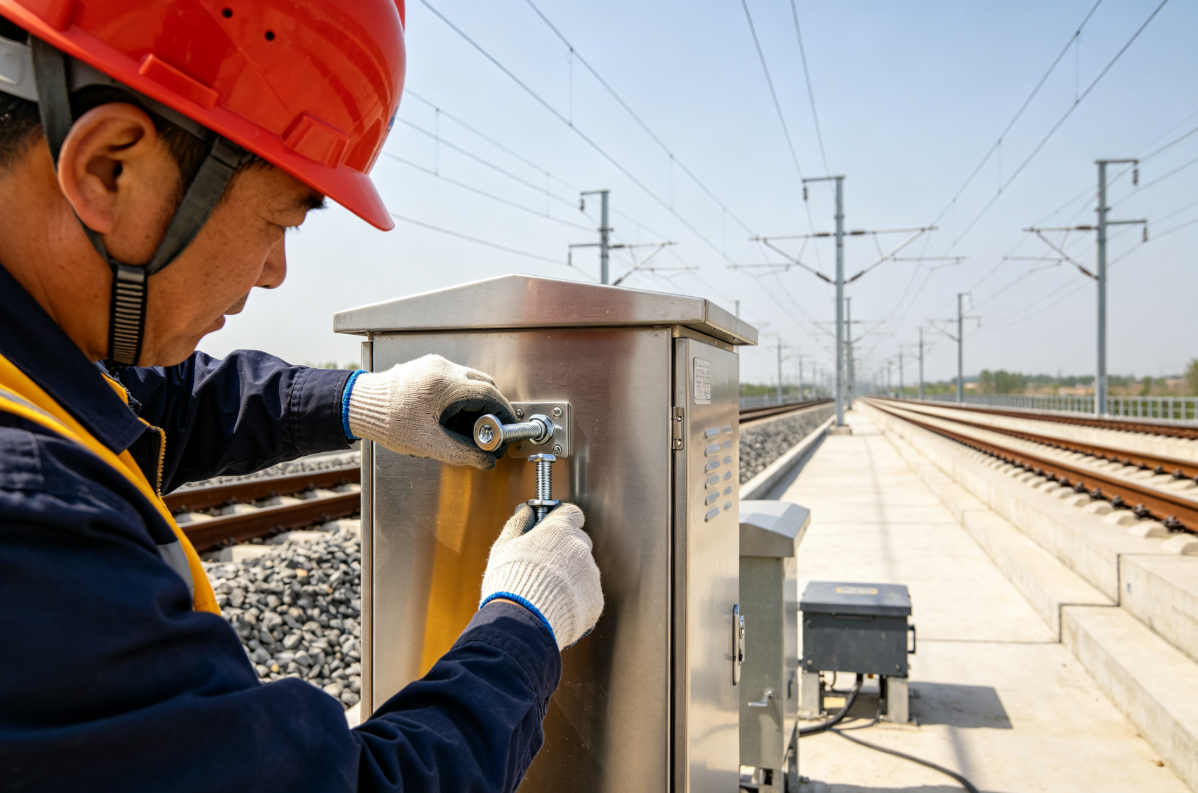

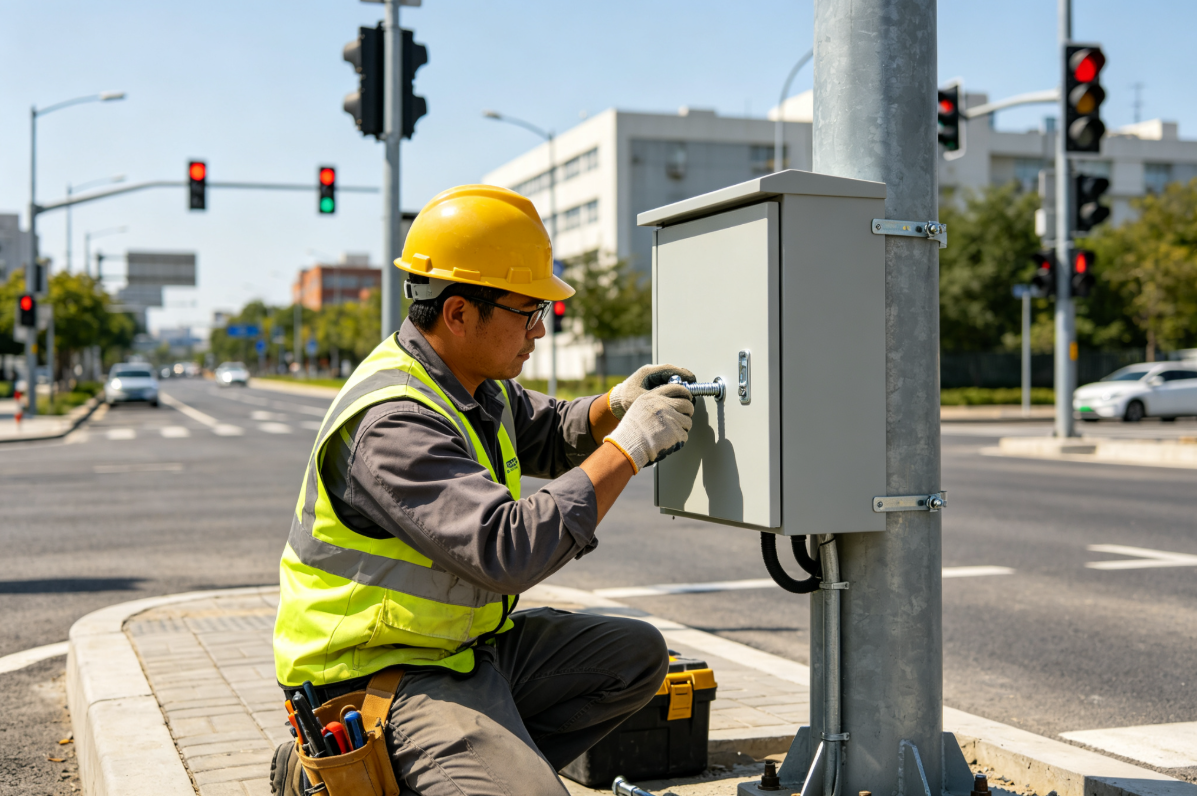

2. Rail Transit & Municipal High-Security Facilities

Suitable for subway station facilities, high-speed railway roadside equipment, urban traffic signal cabinets and barrier-free facilities.

Working Requirements

High anti-theft level to avoid malicious damage to public traffic facilities
Stable thread performance under long-term vibration from vehicle operation
Uniform batch precision for standardized engineering installation

Matching Product

Carbon steel black oxide / dacromet torx security screws for inland areas, 316 stainless steel for coastal high-salt sections. M6-M10 standard sizes, full thread rolling processing for stable locking force.

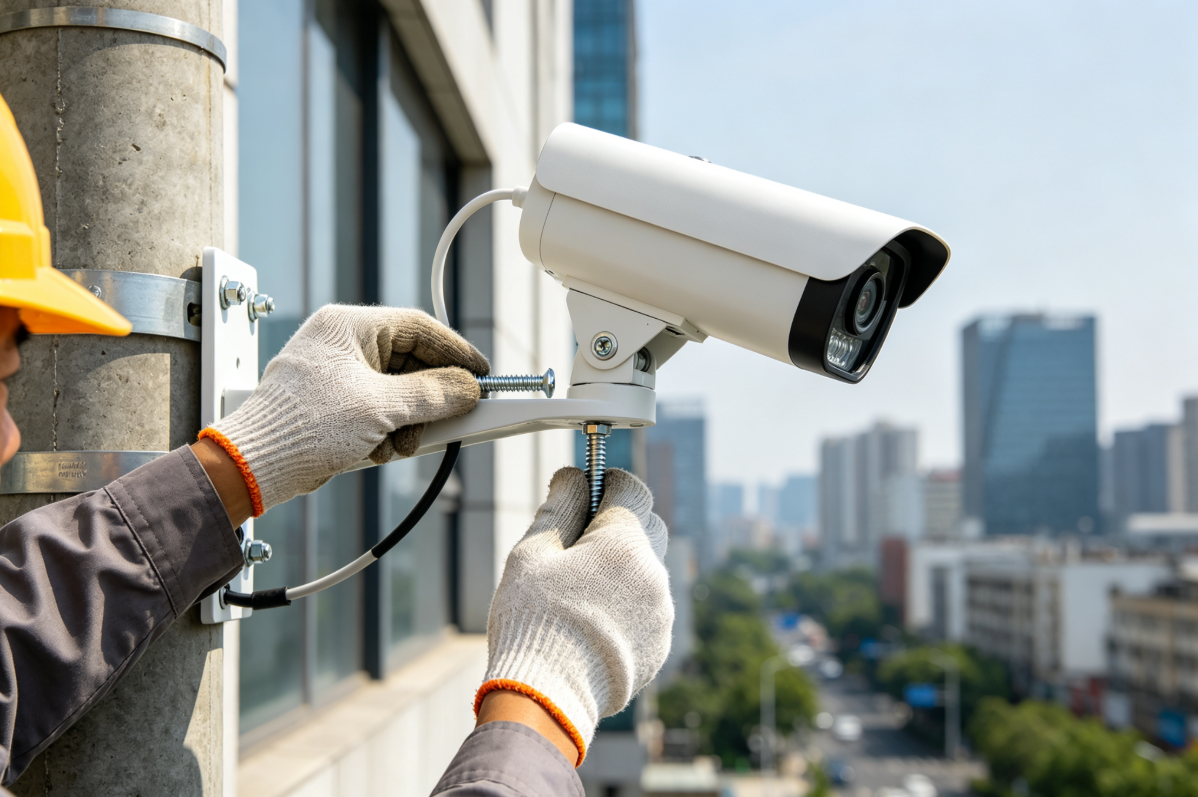

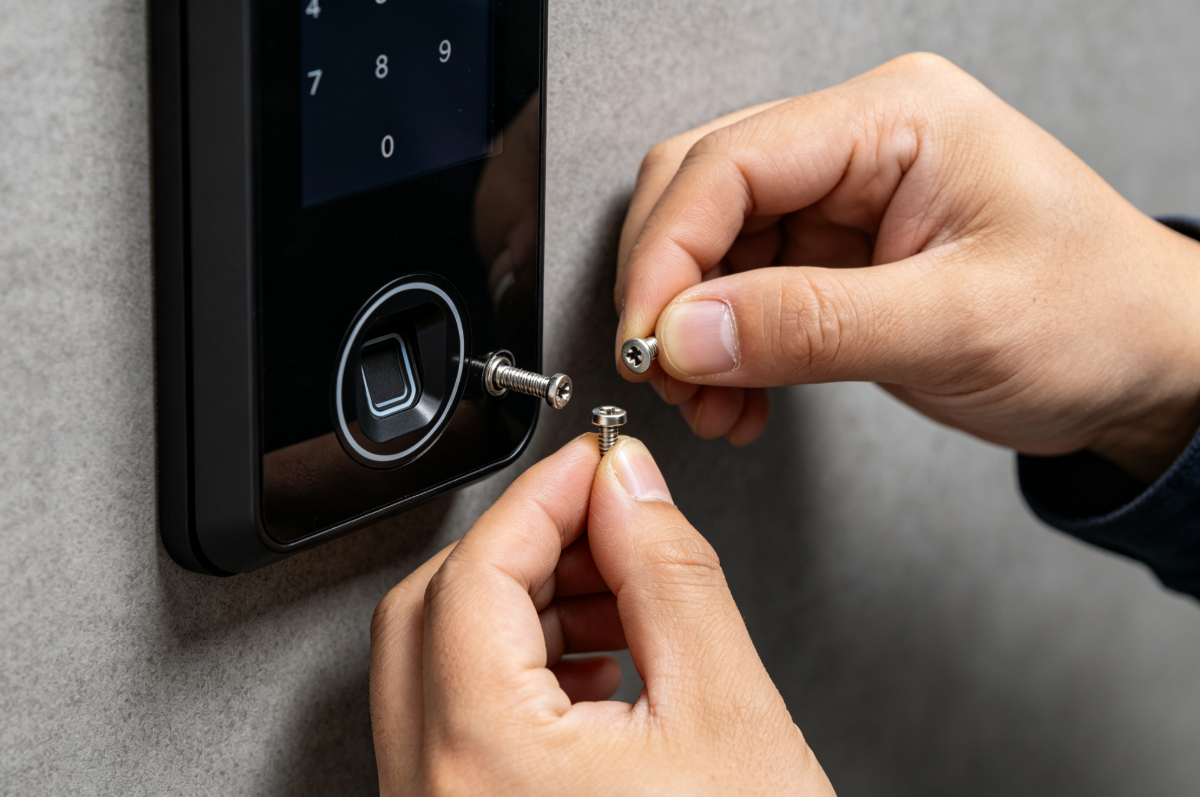

3. High-End Security & Access Control System Enclosures

Applied to high-level surveillance camera brackets, biometric access control panels, alarm system host cabinets and security door lock bodies.

Working Requirements

Low-profile flush cap head to match high-end equipment appearance
No stripping during repeated installation and maintenance
Non-magnetic material option for sensitive electronic components

Matching Product

Mini M3-M6 torx socket cap pin security screws, 304 stainless steel natural finish. Standard cap head dimensions compatible with common counterbore holes of security equipment.

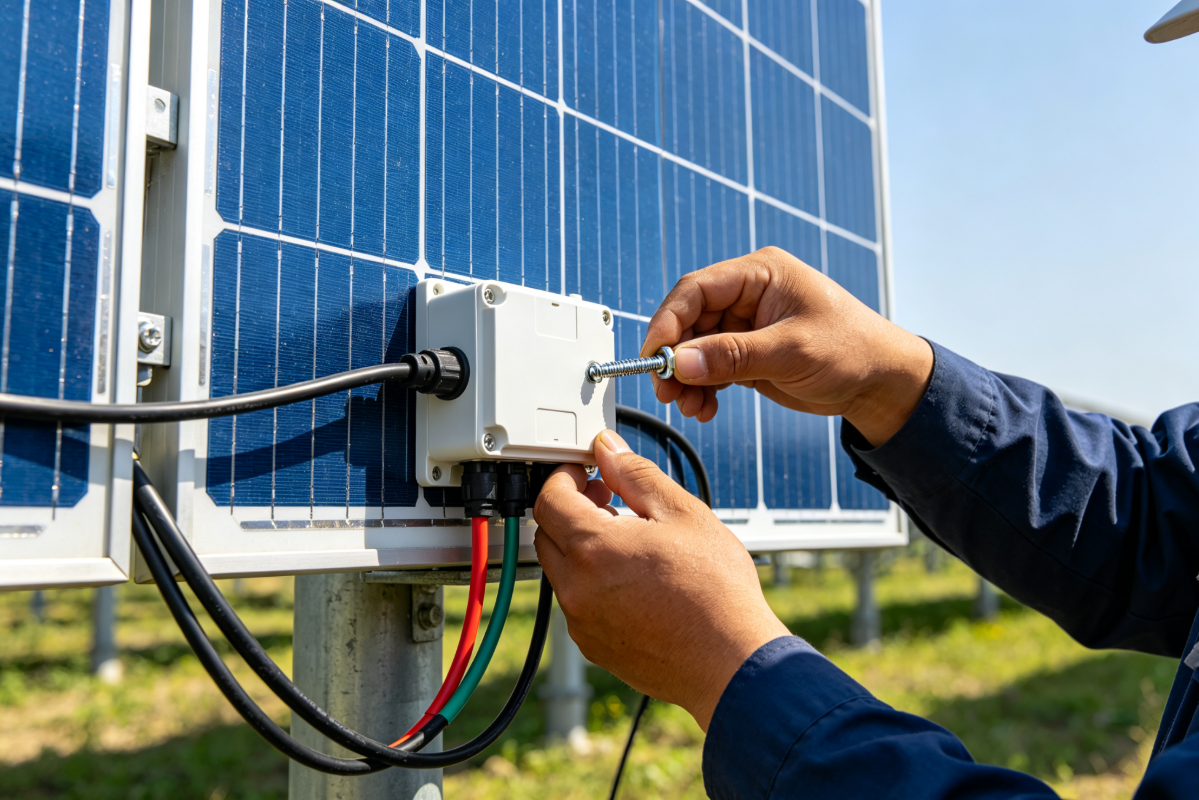

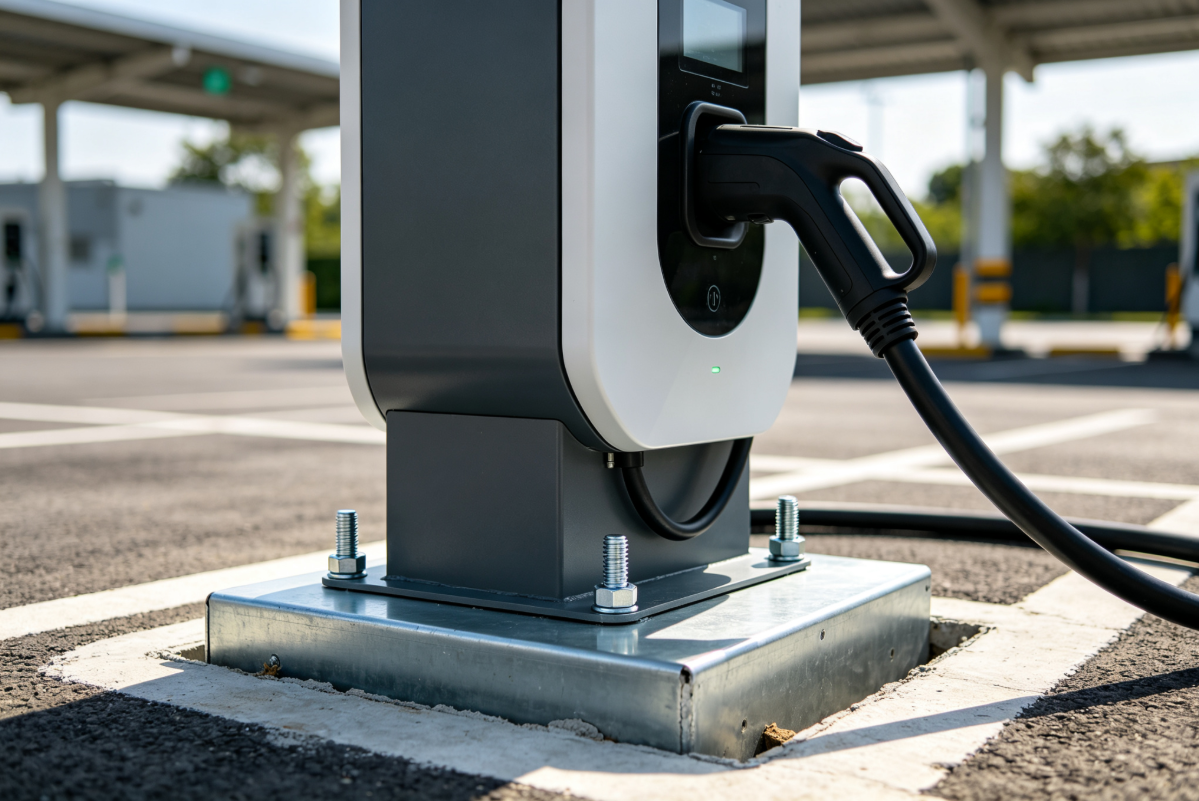

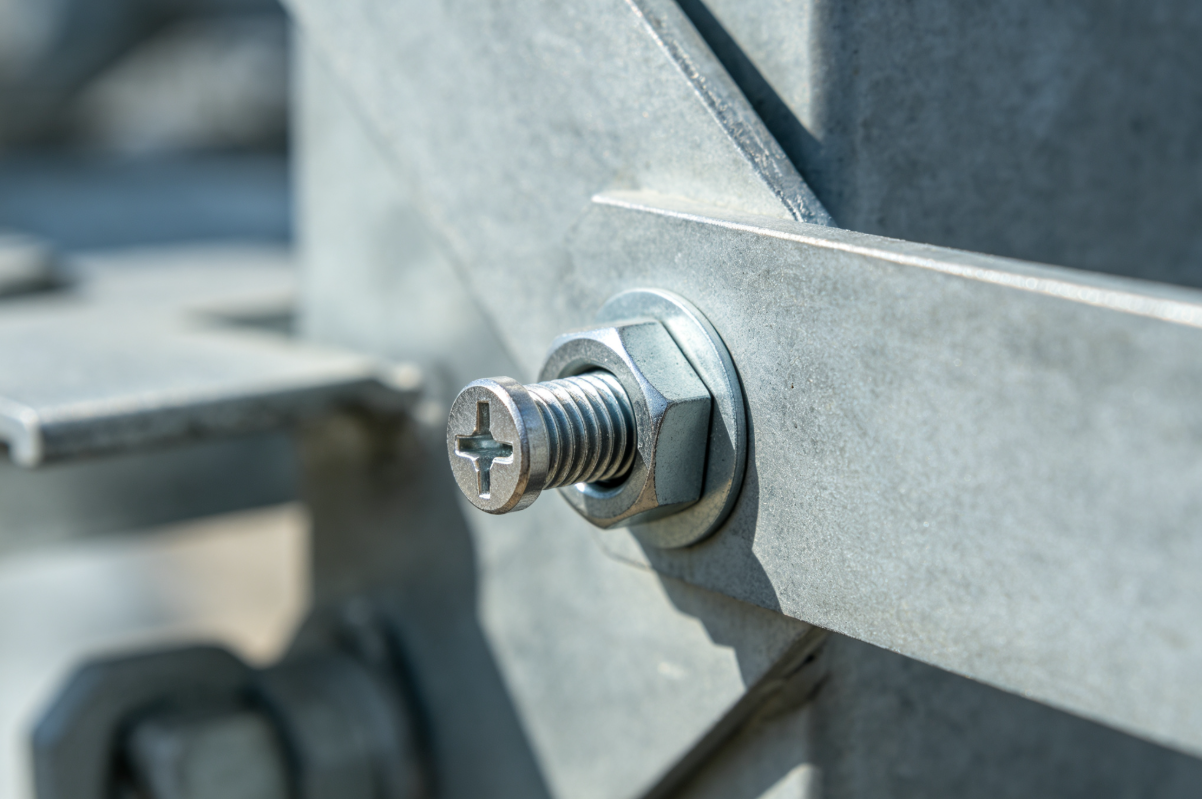

4. New Energy Outdoor Equipment & Charging Facilities

For outdoor photovoltaic bracket junction boxes, public charging piles, energy storage cabinets and wind power auxiliary equipment.

Working Requirements

Anti-theft disassembly to reduce core component loss of new energy assets
Corrosion resistance for outdoor open-air and coastal new energy stations
Durable thread for long-term maintenance and overhaul

Matching Product

304/316 stainless steel torx cap security screws, M4-M10 sizes. Dacromet finish option for ultra-long corrosion resistance in harsh outdoor environments.

Core Advantages of Premium Torx Pin Security Screws

Upgraded Structural Tamper-Proof Design

The combination of 6-lobe Torx groove and solid central anti-tamper pin forms a dual anti-disassembly structure, which cannot be twisted by ordinary hex wrenches, flat screwdrivers or standard Torx tools. The anti-tamper pin is integrally formed with the screw head, with high torque resistance and no easy breakage, achieving a higher security level than ordinary hex security screws.

High Torque Transmission & No Stripping

The Torx drive has 6-point uniform force contact, with larger contact area than hex drive, which can bear higher tightening torque without slipping or stripping the groove. It is more suitable for heavy-load and high-torque fastening scenarios of industrial and electrical equipment.

Multi-Material Corrosion Resistance Options

Available in 304 stainless steel, 316 stainless steel and medium carbon steel (grade 8.8), matching indoor dry, general outdoor and coastal heavy corrosion scenarios respectively, with long service life and low later maintenance cost.

Standard Dimension Compatibility

Cap head diameter and height fully comply with relevant industrial standards. It can directly replace ordinary torx socket cap screws without modifying installation holes, with strong universality and low replacement cost for equipment upgrading.

Production Specifications

Material: SUS304 stainless steel, SUS316 stainless steel, medium carbon steel (grade 4.8 / 8.8)
Thread Sizes: Metric M2–M12, imperial #4-40 to 3/8″-16, customizable non-standard pitches
Head Type: Standard torx socket cap head, low profile cap head optional
Drive Type: Pin-in Torx socket tamper proof drive
Surface Finish: Passivation, black oxide, white/color zinc plating, nickel plating, dacromet
Custom Service: Laser marking, custom lengths, nylon locking patch, OEM packaging

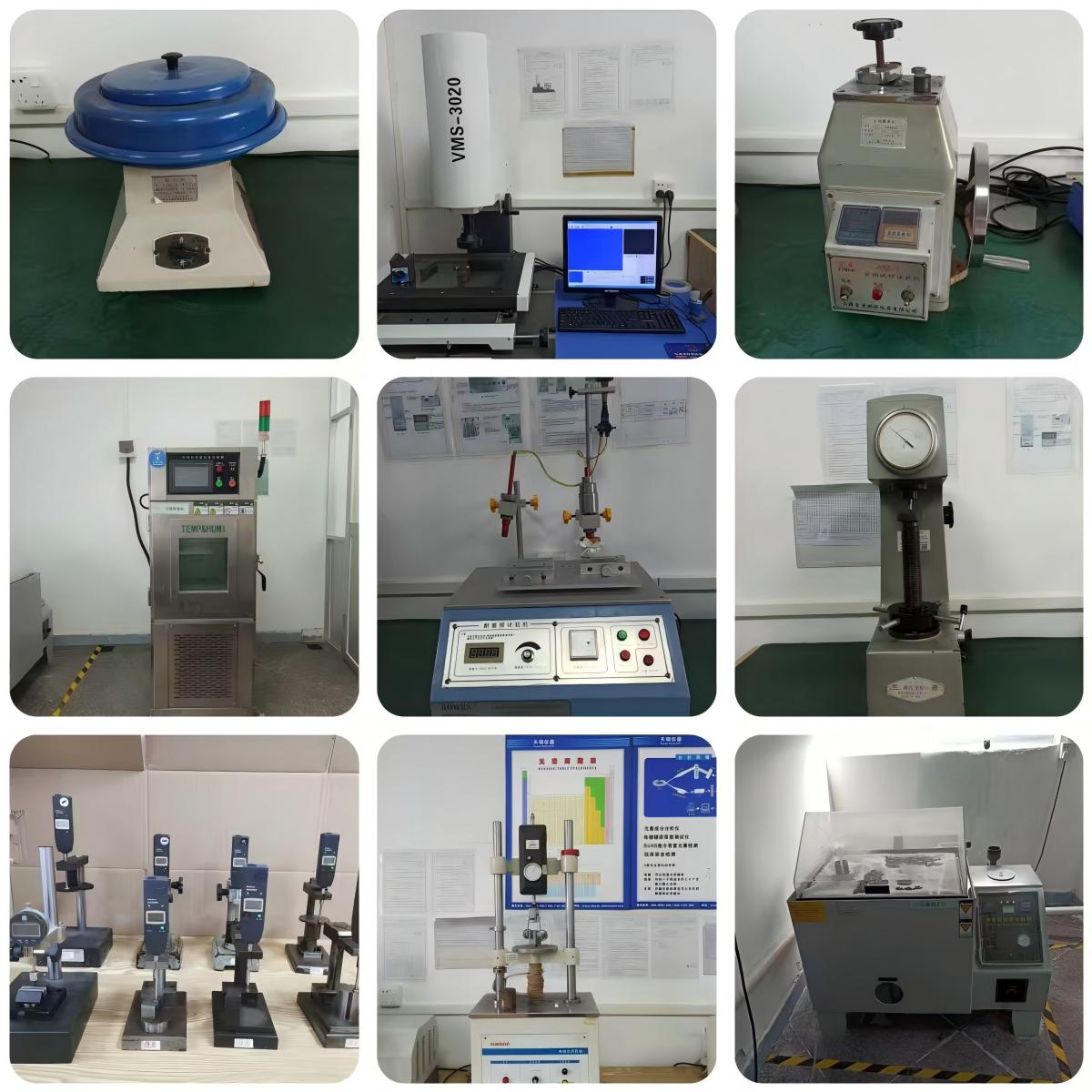

Strict Quality Inspection

Raw material spectral composition testing to verify material grade and chemical composition

In-process patrol inspection every 2 hours for head size, anti-tamper pin coaxiality and thread tolerance

100% automatic optical inspection for surface defects, groove integrity and thread quality

Torque, tensile and salt spray corrosion tests to verify mechanical and anti-corrosion performance

Certifications: ISO9001, RoHS, REACH

Factory Strength

With over 30 years of professional precision fastener manufacturing experience, YH Fastener focuses on R&D and mass production of high-grade security fasteners. Our factory is equipped with 22 sets of automatic cold heading equipment and 18 high-precision thread rolling machines, with a daily output of 1.1 million security screws. We maintain more than 850 sets of ready-made molds for conventional sizes, supporting fast sampling and stable mass production for global power, rail transit, security and new energy industry customers.

Practical Application Case

A regional power grid equipment supplier upgraded the fastening hardware of outdoor distribution cabinets. Previously, ordinary hex screws were frequently disassembled illegally, leading to frequent theft of internal copper components and high operation loss. We supplied M6×25 304 stainless steel torx socket cap security screws with pin, together with matched special installation wrenches for the project.

Specifications Supplied:

M6×25 torx socket cap security screw with pin, 304 stainless steel passivated finish
1.5mm diameter anti-tamper pin, torque resistance up to 10N·m without pin breakage
72-hour salt spray resistance for outdoor power facilities

Result:

After 8 months of on-site deployment across 1200 outdoor cabinets, zero unauthorized disassembly and internal component theft incidents were recorded. The customer’s annual operation and maintenance cost for distribution cabinets dropped by 72%, and a repeat order of 180,000 pieces was placed for the whole region’s cabinet upgrade project.

Summary

Torx socket cap head security screws with pin are high-grade anti-disassembly fasteners for high-security public and industrial facilities. Our complete size range and multi-material options cover power grid, rail transit, high-end security and new energy application scenarios. We support custom specifications, sample trials and bulk OEM orders for global customers.

Submit online inquiry to get customized security fastening solutions and free samples. Share your application scenario, required size, material and estimated order quantity, our sales team will reply with detailed quotation and targeted solution within 12 working hours.
