Modern security alarm and anti-theft devices including smoke detectors, gas sensors, infrared detectors, perimeter grating and outdoor siren alarms put forward strict fastening requirements. Thin ABS plastic housings, thin aluminum panels and metal mounting brackets are vulnerable to cracking, loosening and rust under long-term outdoor vibration and humid weather. Ordinary separate flat washers easily fall off during mass assembly, causing low production efficiency and frequent false alarm failures.

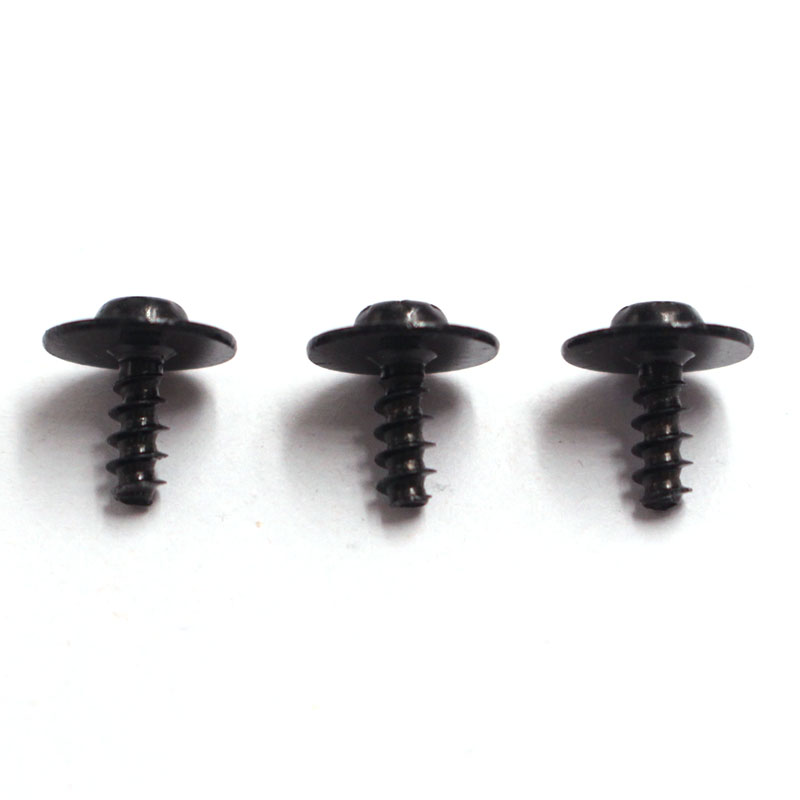

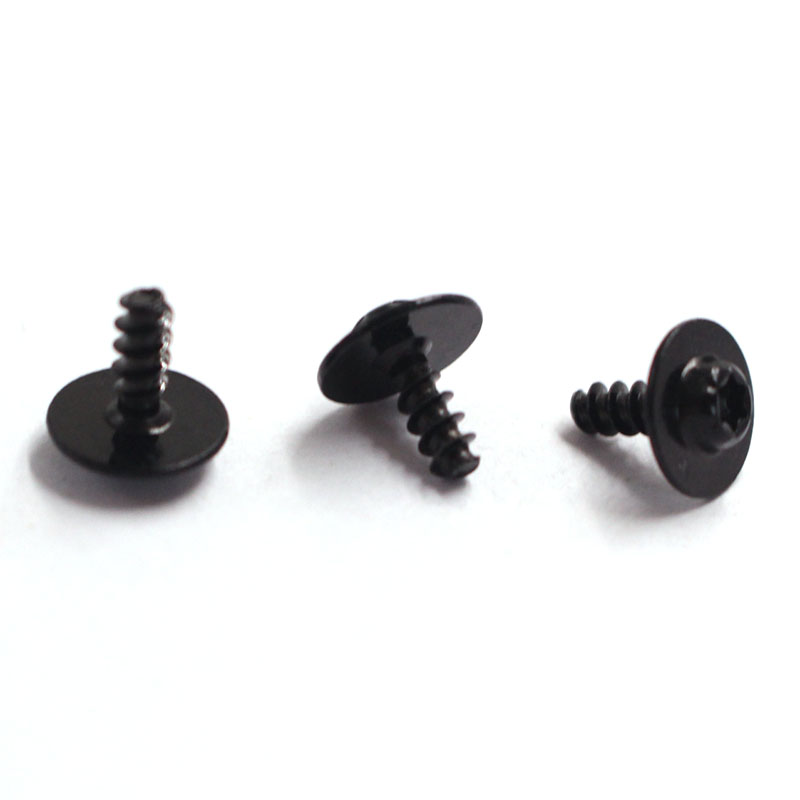

Our PAN WASHER HEAD Self Tapping Screw integrates pan head and flat washer into one-piece structure, becoming the standard fastener for over 90% indoor and outdoor alarm anti-theft equipment. It solves core industry pain points of shell cracking, loose fasteners, rust failure and low assembly efficiency, delivering stable clamping performance for indoor household alarms, commercial public anti-theft devices and industrial explosion-proof alarm cabinets.
1. Inner Housing Fastening For General Alarm Devices

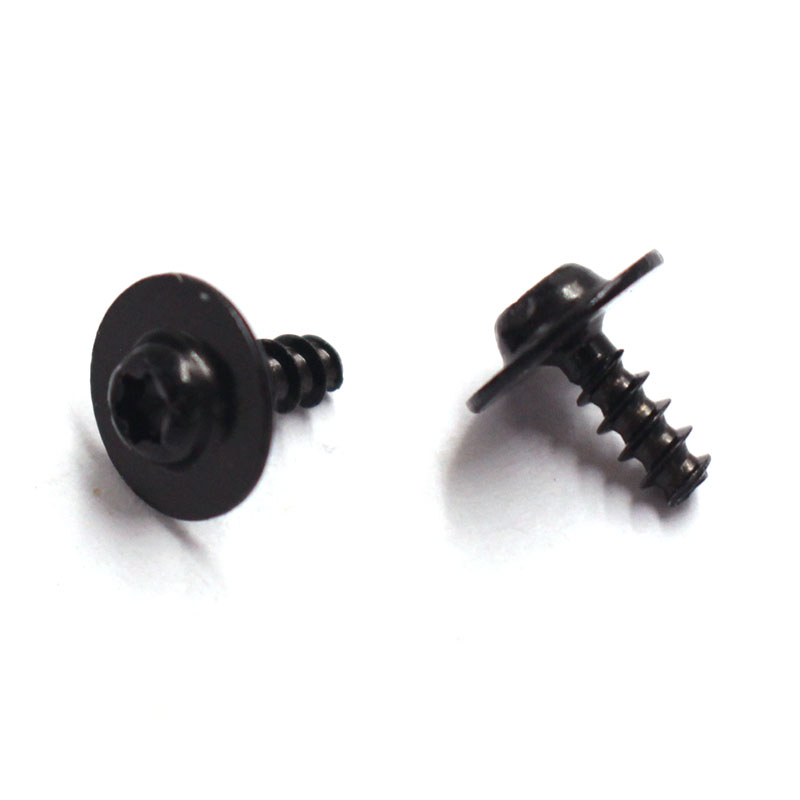

Cross recessed PAN WASHER HEAD Self Tapping Screw serves as the mainstream matching fastener for smoke alarms, gas detectors, infrared human body sensors, window magnetic contacts, alarm main unit shells and perimeter grating casings.
Working Requirements
- Uniform pressure distribution to avoid indentation and cracking on thin plastic housings
- Sharp self-tapping thread for direct locking on ABS plastic and thin aluminum without pre-drilling holes
- Stable clamping force against long-term wind vibration to eliminate false alarms
- High assembly efficiency for automatic production lines without separate washer placement
Matching Product
Indoor alarm equipment adopts carbon steel versions with blue white zinc or black zinc plating, specifications ST2.3, ST2.6, ST3, ST3.5, ST3.9 with length ranging from 6mm to 16mm.
Outdoor waterproof detectors and open-air perimeter alarms select 304 stainless steel PAN WASHER HEAD Self Tapping Screw, passing over 500 hours salt spray test for long-term anti-corrosion performance.
2. Outdoor Wall Mount And Metal Bracket Fixing

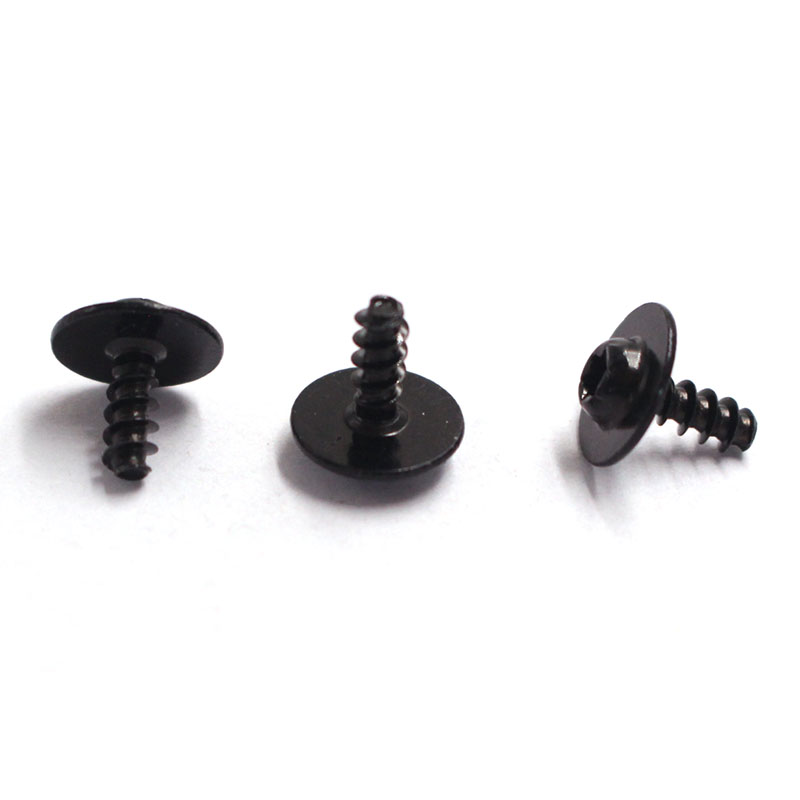

Extended-size stainless steel PAN WASHER HEAD Self Tapping Screw ST4.2, ST4.8 is specially developed for outdoor infrared photoelectric beams, electronic fence frames, waterproof siren metal brackets and outdoor detector base installation. ST4.2×25mm to ST4.2×40mm models can be matched with expansion tubes for wall pre-buried fixation.
Working Requirements
- Strong tensile force for outdoor metal bracket long-term load bearing
- Excellent rust resistance under rain, dust and temperature fluctuation
- Integrated washer prevents bracket loose after long-term vibration
Matching Product
Long size 304 stainless steel pan washer head tapping screw with complete thread rolling for deep bite on iron and aluminum sheet metal.
3. Tamper-Proof Fastening For Commercial Public Security Equipment

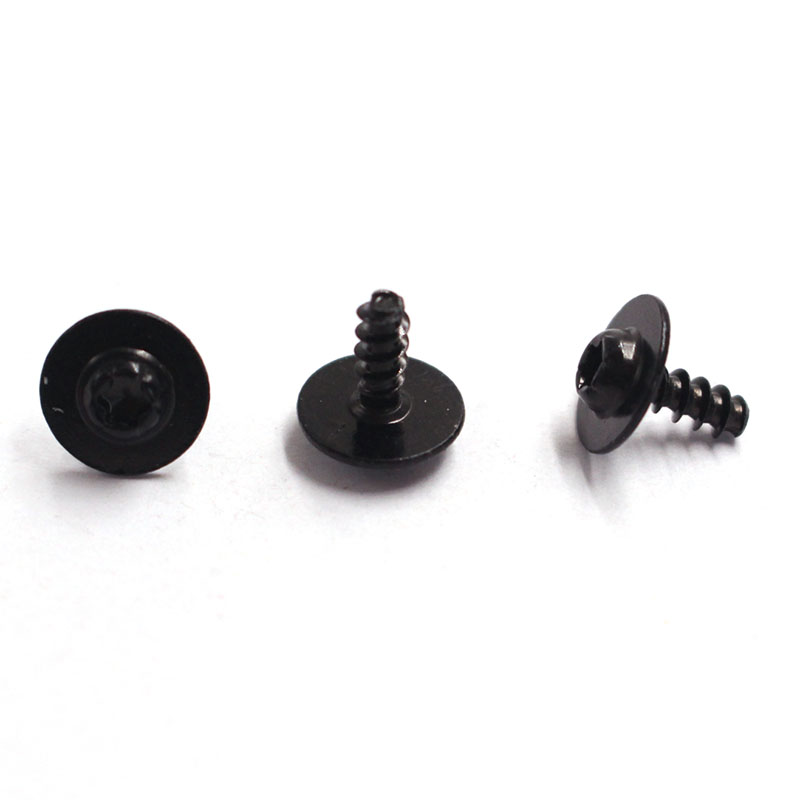

Torx pin type PAN WASHER HEAD Self Tapping Screw is designed for anti-disassembly demand of shop smoke detectors, community public alarm hosts and outdoor perimeter detectors. Built-in pin structure cannot be disassembled by standard screwdrivers to stop man-made damage to anti-theft alarm systems.
Working Requirements
- Tamper resistant torx pin drive for public area anti-vandal protection
- Integrated washer to protect thin device shell from crushing during locking
- Outdoor stainless steel material for long service life in open environment
Matching Product
Torx pin stainless steel PAN WASHER HEAD Self Tapping Screw, retaining all advantages of one-piece washer while adding anti-theft performance.
4. Heavy-Duty Fastening For Explosion-Proof Industrial Alarm Cabinets
Large-specification PAN WASHER HEAD Self Tapping Screw ST5.5, ST6.3 made of 304 stainless steel matches industrial explosion-proof detectors and heavy alarm control cabinets. For thick sheet metal cabinet sealing, matched pan head hex flange machine screws are provided as supplementary options.
Working Requirements
- Large bearing surface for uniform locking force on thick metal plates
- High corrosion resistance for humid factory explosion-proof environments
- High torque resistance to maintain cabinet sealing tightness
Matching Product
Oversize stainless steel integrated washer self tapping screw with reinforced thread for thick sheet metal locking.
Precise Matching Table For All Alarm Anti-Theft Products
|
Alarm Anti-Theft Product |
Preferred Screw Model |
Core Application Demand |
|
Indoor Smoke & Gas Alarm |
Cross Recessed PAN WASHER HEAD Self Tapping Screw ST2.6 / ST3 |
Lightweight plastic shell locking, high assembly efficiency |
|
Infrared Detector & Window Magnetic Contact |
Stainless Steel PAN WASHER HEAD Self Tapping Screw ST3 |
Prevent thin plastic shell crushing and cracking |
|
Outdoor Waterproof Siren & Infrared Beam |
304 Stainless Steel PAN WASHER HEAD Self Tapping Screw ST3.9 / ST4.2 |
Outdoor anti-rust, anti-loose under continuous vibration |
|
Electronic Fence & Perimeter Grating |
Long Size PAN WASHER HEAD Self Tapping Screw ST4.8 |
Long-term fixation of outdoor metal support frames |
|
Commercial Public Anti-Theft Equipment (Tamper Proof) |
Torx Pin PAN WASHER HEAD Self Tapping Screw |
Anti-disassembly, avoid intentional system sabotage |
|
Explosion-Proof Alarm Control Cabinet |
Large Size Stainless Steel PAN WASHER HEAD Self Tapping Screw ST5.5+ |
Tight sealing locking for thick explosion-proof sheet metal |
Low-grade separated washer tapping screws frequently trigger mass production defects: washers dropping during automatic assembly, plastic housing breakage, screw loosening causing alarm misjudgment and rust failure for outdoor equipment. Our integrated washer self tapping screws completely solve these pain points with four core strengths:
- One-piece molded washer expands stress bearing area, no shell indentation or cracking during tightening, greatly reducing finished product rejection rate of alarm devices.
- Integrated structure eliminates independent washer placement, lifting bulk assembly speed by 30% for alarm manufacturers and cutting auxiliary material management cost.
- Precision self-tapping sharp tip directly cuts internal threads on plastic and thin metal sheets, removing secondary pre-drilling procedures and simplifying production workflows.
- Wide washer surface disperses vibration force evenly, detectors stay firmly fastened under wind and equipment shake to avoid unexpected false alarms.
We are a professional fastener manufacturer focusing on security industry matching hardware, supplying bulk PAN WASHER HEAD Self Tapping Screw for global alarm equipment factories and security engineering suppliers.
|
Parameter |
Specification |
|
Raw Material |
Carbon Steel, 304 Stainless Steel, 316 Stainless Steel |
|
Standard Sizes |
ST2.3, ST2.6, ST3, ST3.5, ST3.9, ST4.2, ST4.8, ST5.5, ST6.3 |
|
Length Range |
6mm – 80mm, custom non-standard lengths supported |
|
Drive Types |
Cross Recessed Phillips, Torx Pin Tamper Proof |
|
Surface Treatments |
Blue White Zinc Plating, Black Zinc Plating, Passivation, Black Oxide |
|
Custom Service |
Custom size drawing development, special surface coating, bulk neutral packaging, sample trial orders |

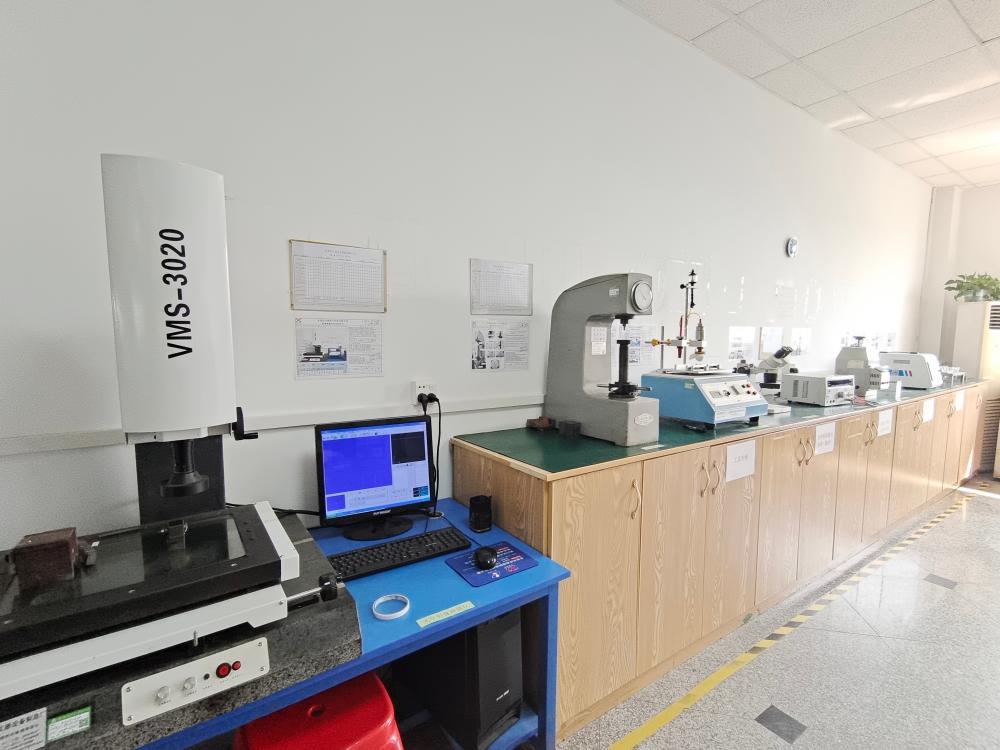

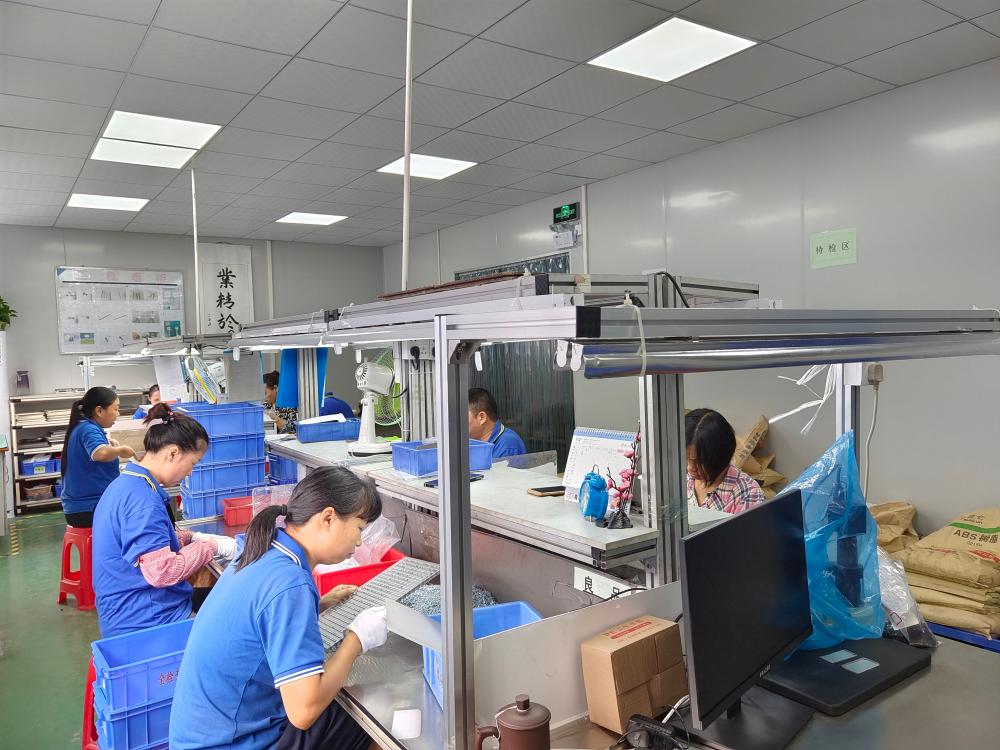

All batches of pan washer head tapping screw pass multi-channel standardized inspection: raw material spectral composition test, thread forming dimensional sampling check, salt spray anti-corrosion aging test, hardness torsion performance detection and full-automatic optical appearance inspection.
Our factory has obtained ISO9001 quality management certification, all fastener test reports can be provided for security equipment factory audit certification.
A Southeast Asian security alarm manufacturer suffered high defective rates when using separate washer self tapping screws for outdoor infrared detectors: plastic shells cracked easily, loose screws led to frequent false alarms, and assembly efficiency was low. After switching to our 304 stainless steel PAN WASHER HEAD Self Tapping Screw, the product rejection rate dropped by 28%, assembly labor cost reduced by nearly one third, and zero rust complaints were received after one year of outdoor field operation. Mass bulk orders have been maintained for long-term stable cooperation since 2024.
As security anti-theft equipment upgrades toward outdoor waterproof, vibration-resistant and anti-vandal standards, integrated washer self tapping fasteners replace traditional split washer screws as the preferred fastening solution. Our full series PAN WASHER HEAD Self Tapping Screw covers all indoor and outdoor alarm device assembly scenarios, balancing cost, anti-rust performance, anti-loose capacity and mass production efficiency.
Supported by mature precision manufacturing technology, complete specification lineup and flexible customization service, we provide reliable fastener matching solutions for smoke alarms, infrared sensors, perimeter security equipment and explosion-proof alarm cabinets, supporting small sample testing and large volume wholesale orders.
