How To Choose Qualified Pan Head Sealing Screws For Outdoor & Electronic Enclosure Projects

Global outdoor electronics, energy storage and monitoring industries have raised stricter waterproof and dustproof standards for equipment housings. Conventional machine screws cannot block moisture and dust invasion at assembly gaps, which easily leads to short circuit and component aging after long-term outdoor exposure. As a mature integrated waterproof fastener, pan head sealing screws have become the mainstream choice of hardware engineers to solve housing sealing pain points. This article sorts out practical selection rules and industry application cases for global purchasing engineers.

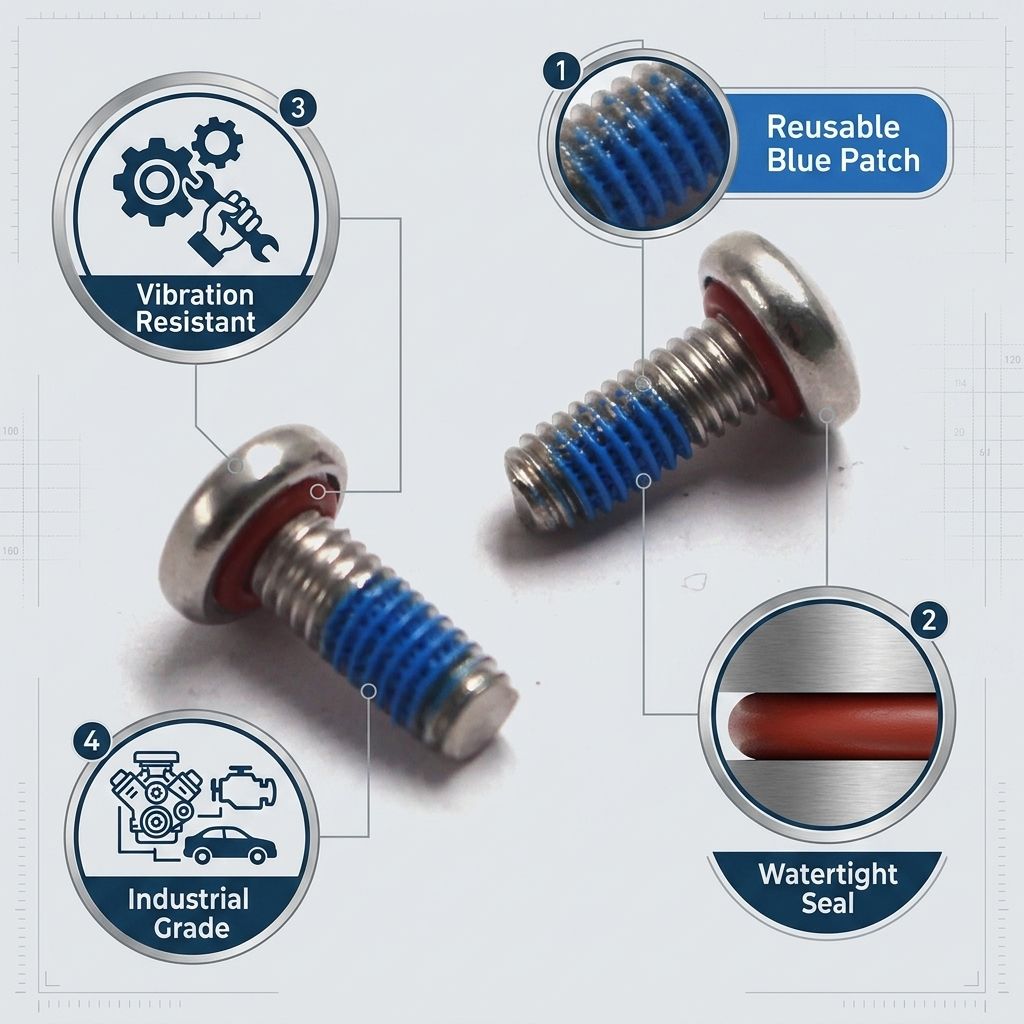

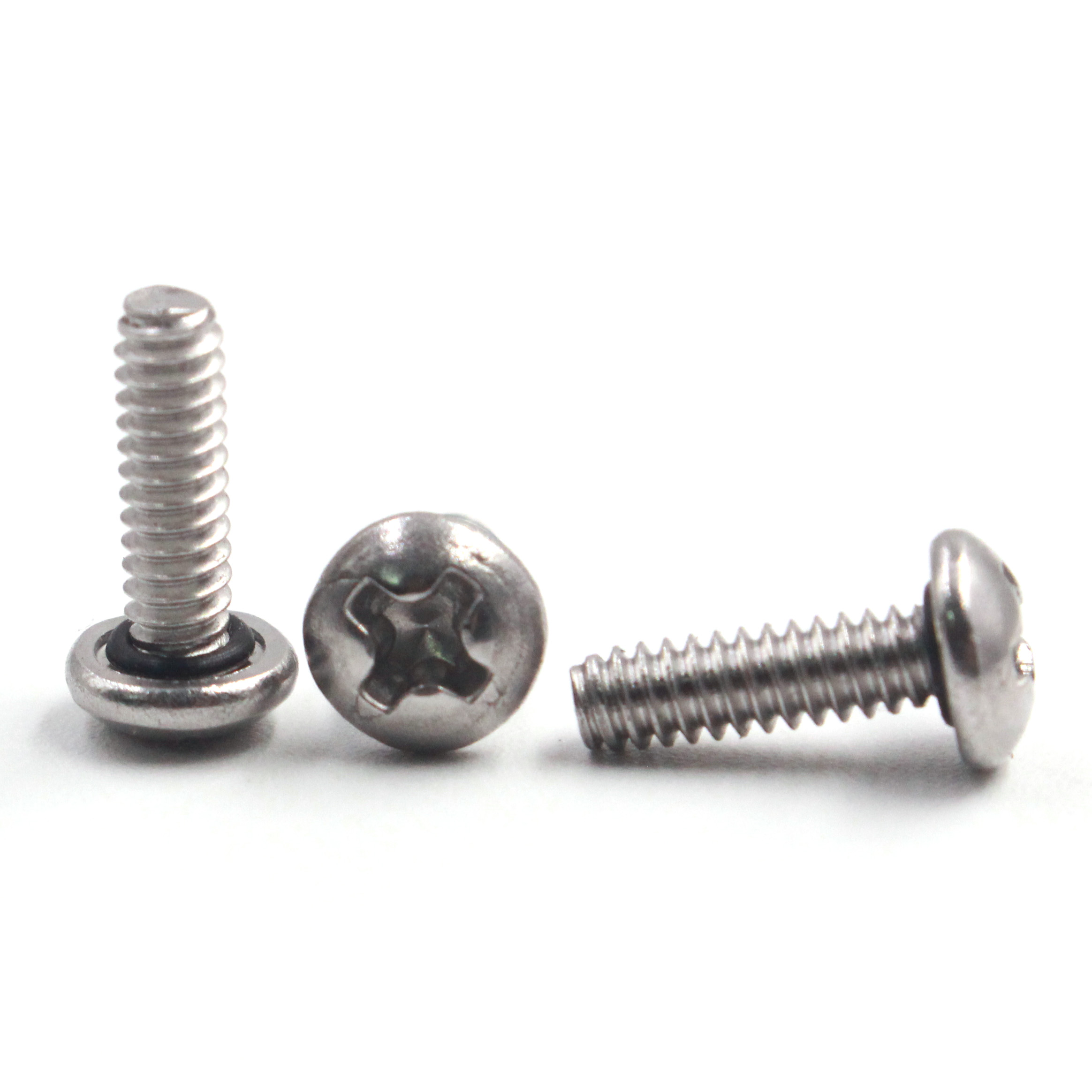

The biggest competitive advantage of pan head sealing screws lies in the one-piece captive O-ring design. A precision fixed groove under the pan head locks the rubber ring firmly, avoiding ring falling off during transportation and automatic assembly. After standardized tightening, the O-ring is evenly squeezed to form a full 360° isolation barrier, which can effectively isolate rainwater, sea fog, dust and industrial oil without extra gaskets or sealant.

The wide circular pan head delivers uniform compression force on plastic and thin metal panels. It greatly reduces shell indentation, cracking and deformation problems during high-speed automated locking, effectively lowering mass production rejection rates for electronics manufacturers. Three mainstream drive types including Phillips, Torx and slotted can be matched to different assembly equipment to meet low torque manual assembly and high torque precision production line demands separately.

Material combination directly decides long-term sealing stability and anti-rust performance. Buyers can select matching screw body and O-ring materials according to actual working scenarios. Indoor dry household appliances & control boxes adopt zinc-plated carbon steel pan head sealing screws with EPDM O-rings, which bring outstanding cost-effectiveness for general waterproof demands. For indoor humid electronic workshops and kitchen devices, SUS304 stainless steel screws with silicone O-rings are recommended, featuring medium corrosion resistance and zero contamination to precision plastic shells. SUS316 stainless steel screws paired with Viton fluorine rubber O-rings fit coastal new energy and outdoor monitoring equipment perfectly, delivering remarkable salt fog and oil resistance for long-term harsh outdoor operation.

All raw materials of our sealing screws pass incoming hardness and composition inspection, fully compliant with RoHS and REACH international environmental standards to meet automotive and electronic factory audit requirements.

Mini-size pan head sealing screws are widely used for camera shell assembly. Stable IP67 sealing prevents lens fogging and circuit short circuit caused by rain immersion, extending service life of outdoor monitoring equipment.

Medium-large stainless steel sealing screws are standard fasteners for charging pile shells and energy storage control boxes. Constant anti-corrosion performance resists coastal sea fog erosion and cuts post-maintenance frequency for energy enterprises.

Torx-type pan head sealing screws are adopted for high-precision communication equipment cabinets. Anti-slip drive avoids screw head damage under repeated maintenance disassembly, maintaining continuous sealing performance after multiple disassembly.

Small Phillips sealing screws fit smart speaker, display and sensor plastic housings. Smooth pan head keeps uniform appearance without obvious pressing marks on finished products.

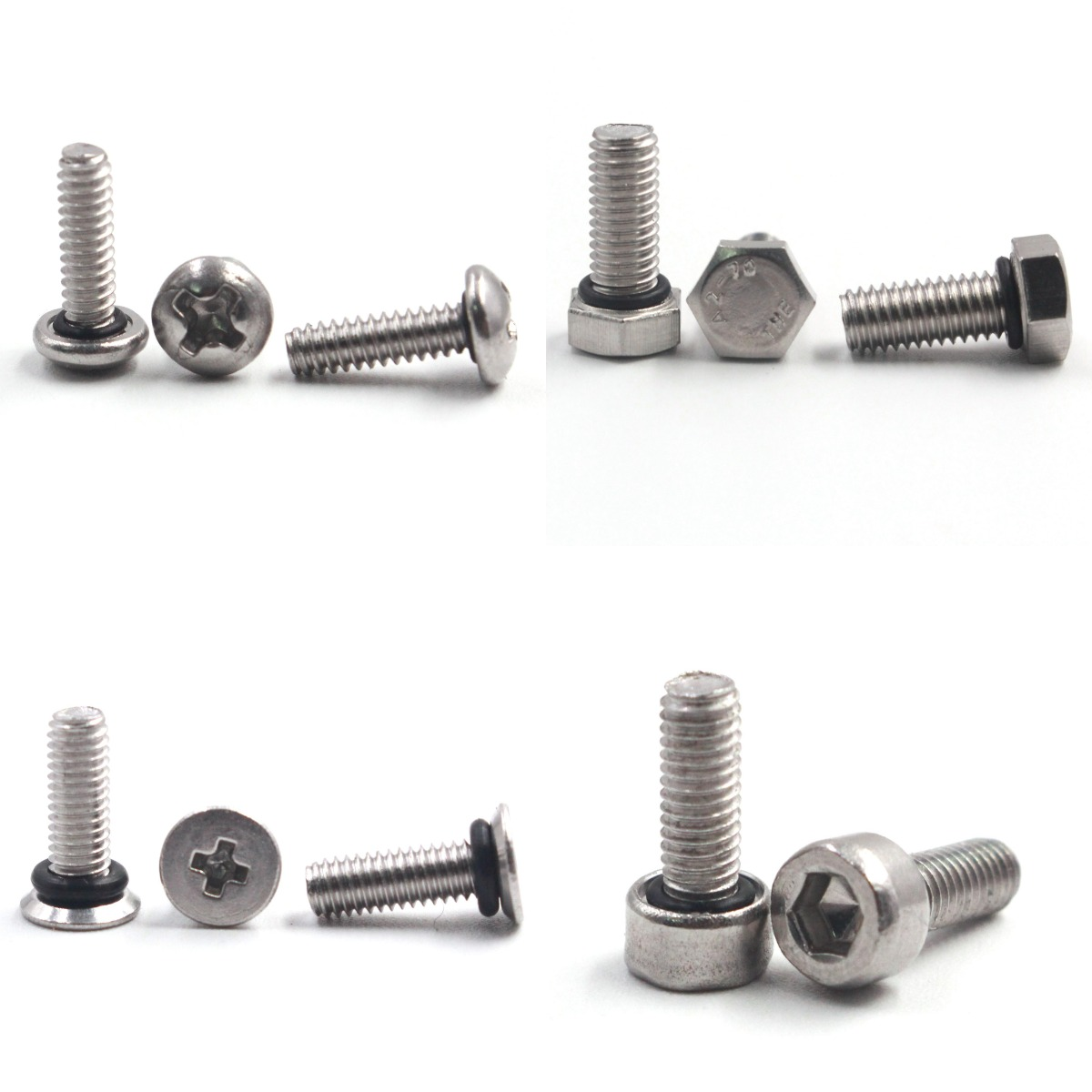

We maintain full metric stock from M2 to M10 for pan head sealing screws, with 5–15 working days delivery for standard bulk orders. Flexible customized schemes are available for special project demands, including customized thread length, head thickness, exclusive O-ring thickness and laser marking with brand logos.

All finished sealing screws pass multi-dimensional strict factory tests before shipment, covering dimensional tolerance inspection, tensile breaking test, neutral salt spray test and full sealing performance test. Complete formal test reports can be provided to global buyers for project filing and factory certification review.

Fasteneryh is a professional custom fastener manufacturer with over 10 years of full-process production experience. The factory equips automatic cold forging, thread rolling and optical screening equipment to control product tolerance consistently. We provide one-stop OEM & ODM customized service for global hardware distributors and manufacturing factories, supporting small trial orders before mass cooperation. Our 24-hour professional foreign trade technical team can solve all material, specification and sealing scheme inquiries promptly.

If you are a purchasing manager, hardware engineer or distributor sourcing stable waterproof fasteners for enclosure assembly projects, please send your specification list, installation drawings and working environment requirements to our team. We will formulate targeted pan head sealing screw matching plans and offer competitive factory-direct quotations. Free product samples can be arranged immediately for your waterproof and corrosion resistance performance testing.
