As security monitoring infrastructure expands across residential, commercial and industrial sites, outdoor CCTV cameras, NVR cabinets, dome surveillance housings and access control equipment face rigorous working challenges including long-term rain erosion, temperature fluctuation, thin plastic and aluminum shell assembly demands.
Standard protruding fasteners often damage camera shell paint, break waterproof rubber gaskets and ruin integrated IP protection grades. Ordinary tapping screws also risk cracking thin ABS and die-cast aluminum housings during locking.

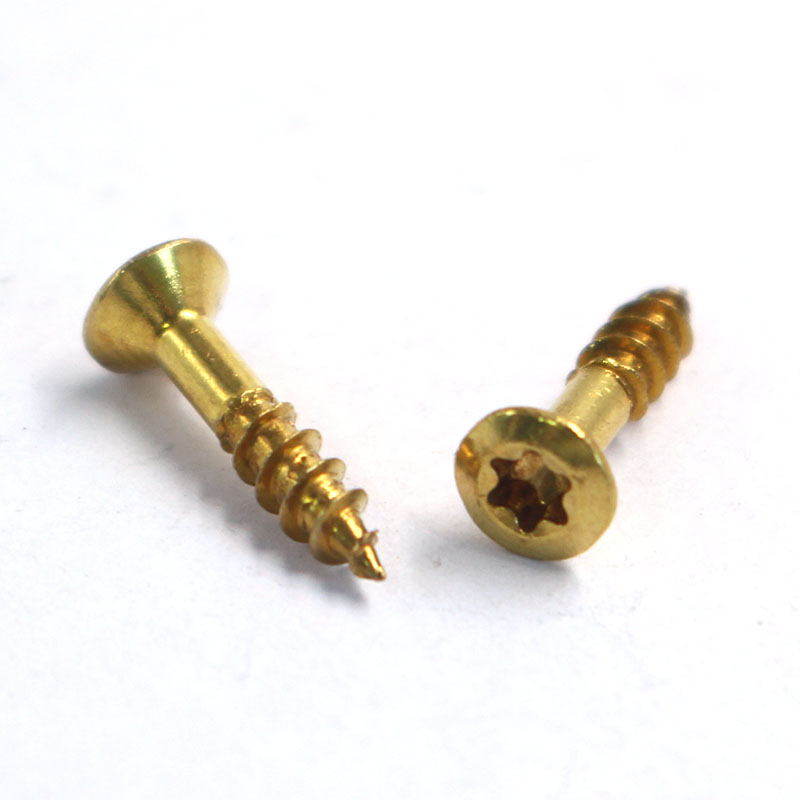

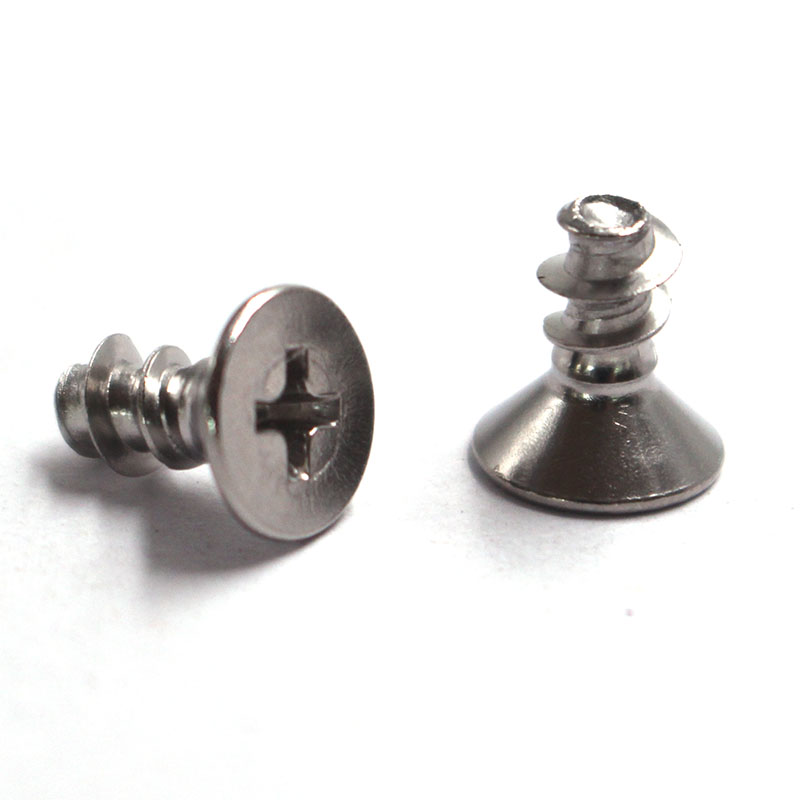

Flat Head Self Tapping Screw becomes the standardized preferred fastener for surveillance equipment outer enclosure assembly. Its fully countersunk flat head design creates flush mounting without protrusions, while sharp precision self-tapping threads eliminate pre-drilling steps, simplifying mass production assembly for security device manufacturers. Installers can complete shell fastening smoothly without extra tapping processes, cutting assembly cycle time and lowering production reject rates caused by shell cracking or surface scratch defects.
1. Outdoor Bullet & Dome Camera Outer Housing Locking
This is the most mainstream application of Flat Head Self Tapping Screw in the security industry. The countersunk flat structure sinks completely into camera aluminum alloy and plastic shells, keeping outer surfaces flat and intact without sharp raised edges. It will not squeeze waterproof silicone rings, maintaining IP66 / IP67 dustproof and waterproof performance for outdoor surveillance devices exposed to wind and rain.
Core Working Requirements
- Flush mounting to protect enclosure waterproof structure
- Anti-rust performance for long-term outdoor exposure
- Sharp thread to avoid cracking thin ABS plastic shells
- Uniform locking force to prevent loose shell after long vibration
Matching Recommended Fastener
304 stainless steel Flat Head Self Tapping Screw with fine ST thread, black zinc passivation finish. Small standard sizes ST2.9, ST3.5, ST4.2 match mainstream surveillance shell wall thickness.
2. Indoor NVR Recorder Cabinet & Panel Assembly
Indoor monitoring storage hosts adopt thin galvanized steel sheet and plastic decorative panels. Flat Head Self Tapping Screw realizes seamless panel assembly for cabinet side covers, top housings and wiring access plates, ensuring tidy equipment appearance in monitoring control rooms.
Core Working Requirements
- Low cost mass supply for indoor dry environment
- Consistent black coating matching black NVR cabinet appearance
- Stable thread connection resisting daily slight vibration from cooling fans
Matching Recommended Fastener
Blue white zinc & black zinc carbon steel Flat Head Self Tapping Screw, cross recess for automated assembly machine operation, length range 6mm–12mm.
3. Access Control & Door Monitoring Device Shell Fixing
Face recognition access terminals, door magnetic monitors and wall-mounted detection cameras are installed on building facades and corridor walls. Countersunk tapping screws avoid surface bulges that affect equipment aesthetics, while anti-corrosion coatings resist humid corridor air and frequent cleaning water splashes.
Core Working Requirements
- Compact head design to fit narrow edge mounting space
- Moisture and stain resistance for semi-outdoor corridor environments
- Repeated disassembly performance for regular equipment maintenance
Matching Recommended Fastener
Nickel plated carbon steel Flat Head Self Tapping Screw, customizable tiny sizes ST2.2–ST3.0 for slim access control housings.
4. Solar Powered Off-Grid Surveillance Equipment Shell
Wireless solar cameras used in construction sites, farms and parking lots work in fully open-air harsh conditions with strong sunlight, dew and coastal salt fog. Corrosion-resistant stainless steel Flat Head Self Tapping Screw prevents rust expansion that would crack thin plastic solar camera casings.
Core Working Requirements
- Strong salt spray resistance for coastal and open-air locations
- Heat and UV aging resistance under long sunlight exposure
- Locking stability under outdoor wind-induced continuous vibration
Matching Recommended Fastener
316 stainless steel Flat Head Self Tapping Screw, high-passivation anti-corrosion treatment, supporting customized thread length for thickened solar equipment housings.
5. Explosion-Proof Industrial Monitoring Equipment Housing
Mining, chemical plant and oil station explosion-proof surveillance cameras adopt thickened alloy housings with strict sealing standards. Special high-hardness Flat Head Self Tapping Screw guarantees tight enclosure combination without thread slipping under heavy load locking.
Core Working Requirements
- High tensile strength for thick alloy explosion-proof shells
- Oil and chemical mist corrosion resistance
- Precise thread tolerance to match explosion-proof sealing gaps
Matching Recommended Fastener
High strength carbon steel Flat Head Self Tapping Screw with black oxide surface treatment, pass strict tension and torsion testing before delivery.

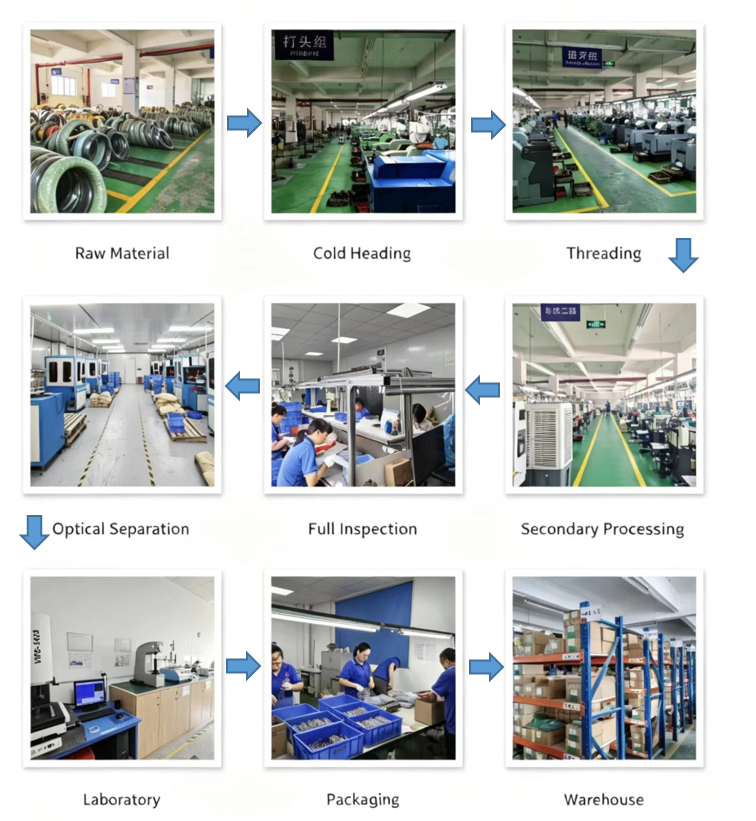

We hold more than 20 years of precision fastener manufacturing experience, fully capable of customized mass production of Flat Head Self Tapping Screw targeting the global security surveillance industry.
Production Parameter Range
- Raw Material: Carbon Steel, 304 Stainless Steel, 316 Stainless Steel
- Thread Standard: ST self-tapping imperial sizes, customized tooth pitch available
- Head Type: Standard flat countersunk head, modified thin flat head for slim shells
- Recess Style: Cross PH recess, anti-theft torx recess optional
- Surface Treatment: Blue white zinc plating, black zinc plating, nickel plating, stainless steel passivation, black oxide
- Custom Service: Size customization, color surface matching, anti-loose nylon patch coating, bulk mixed-size packaging
All finished Flat Head Self Tapping Screw items go through full-automatic optical screening to inspect thread integrity, flat head flatness and surface blemishes. Raw material components are verified via spectral analysis. Torsion, tension and shell cracking simulation tests follow international fastener standards. We conduct 200–1000 hours salt spray anti-corrosion testing as requested. All products comply with ISO9001, RoHS and REACH industrial certification standards.
A large security equipment manufacturer needed standardized fasteners for its full series outdoor dome surveillance cameras. Traditional round head tapping screws damaged the camera's IP waterproof ring and caused high defective rates during assembly. Our customized 304 stainless steel Flat Head Self Tapping Screw ST3.9*9mm was adopted for mass production. The fully countersunk flat head completely avoids gasket extrusion, and fine self-tapping threads cut the plastic shell cracking reject rate down by over 85%. The uniform black zinc surface matches the camera shell color perfectly, cutting manual surface touch-up labor costs on the assembly line and improving finished product yield significantly.
Small-size Flat Head Self Tapping Screw delivers decisive influence on surveillance equipment's waterproof performance, exterior appearance and long-term operational stability. As intelligent monitoring equipment becomes thinner and widely deployed indoors and outdoors, flush-mounted self-tapping fasteners become an irreplaceable supporting hardware for camera enclosure production.
Supported by mature automated production lines, strict anti-corrosion processing technology and flexible OEM customization services, we supply qualified Flat Head Self Tapping Screw covering sample trial orders and large batch mass procurement for global security monitoring manufacturers.
Contact us to obtain targeted surveillance enclosure fastening solutions and free sample support
