Captive screws are designed to remain attached to the outer panel after loosening, preventing loss and saving assembly time. They see wide usage in electronic enclosures, industrial control cabinets, telecommunications equipment, and medical devices. Unlike standard screws that fall out and get lost, captive screws solve the common problem of dropped hardware inside sensitive equipment.
Our company specializes in manufacturing high grade captive screws with various retainer designs including spring loaded, floating, and press-in types. With over 30 years of experience and ISO 9001 2015 certification, we supply stainless steel and carbon steel captive fasteners to global OEM manufacturers and enclosure suppliers.

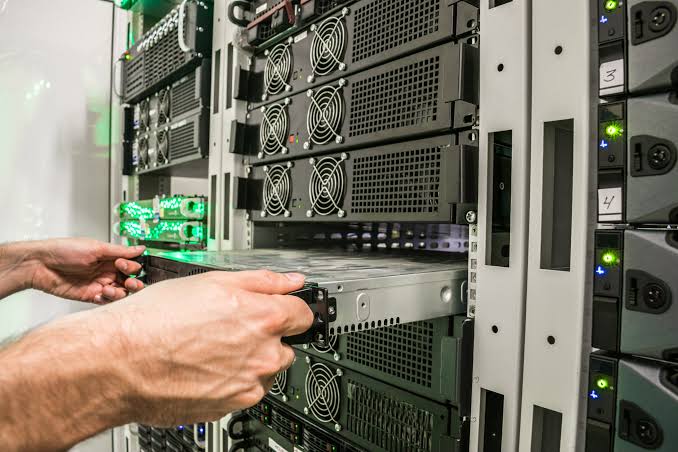

Captive screws allow quick access to internal components without the risk of losing hardware. Technical staff can open front panels, remove top covers, and access drive bays simply by loosening the screw, which stays captured in the outer panel. This eliminates dropped screws inside server racks and reduces foreign object damage risk.
Working requirements:
- Spring loaded design for smooth retraction
- Flush mounting when fully tightened
- Anti cross thread performance
- Tool operated or hand knurled options
Matching product:
304 Stainless Steel Captive Screw with spring loaded retainer and Phillips drive. M3 M4 M5 M6 thread sizes. Bright finish. Flush head style suitable for 1U to 4U rack panels.
2. Industrial Control Panel And Junction Box
Control cabinets in factories need frequent access for wiring and maintenance. Loose screws fall onto circuit boards causing short circuits. Captive panel screws stay with the door or cover, simplifying one handed operation while holding the panel open.
Working requirements:
- Retention force sufficient to hold screw in retracted position
- Corrosion resistance for factory floor humidity and dust
- Low profile head to avoid snagging
- Wide grip knurling for gloved hand operation
Matching product:
Steel Captive Screw with black zinc plating. Press in retainer type for sheet metal thickness 1.0mm to 2.0mm. Knurled head diameter 12mm. Standard M5 x 0.8 thread.
3. Telecommunications Outdoor Cabinet
Base station cabinets installed on towers face vibration, temperature swing, and moisture ingress. Ordinary screws corrode or loosen. Stainless steel captive screws with weather resistant coating maintain security while allowing field technicians tool free or one tool access.
Working requirements:
- 1000 hour salt spray resistance
- Vibration proof with nylon patch or washer
- Tool operated security to prevent tampering
- Captive to both panel and frame or panel only
Matching product:
304 Stainless Steel Captive Screw with nylon anti loose patch. Hex drive for higher torque. E coated black finish. M6 x 1.0 thread. Spring ejector helps push panel open after loosening.
4. Avionics And Military Grade Equipment
Avionics chassis require captive screws that withstand high vibration and remain securely fastened during flight. Quick access for maintenance on ground is essential. High strength alloy steel captive screws with corrosion resistant plating meet strict industry standards.
Working requirements:
- Vibration resistance per MIL STD 810
- Torque retention after multiple cycles
- Salt fog resistance for naval aviation
- Positive stop and visual torque indicator optional
Matching product:
Alloy Steel Captive Screw grade 8.8. Cadmium or zinc nickel plating. Spring loaded with Phillips and flat blade combination drive. M4 M5 M6 sizes. Custom branding per customer drawing.
Core Advantages Of High Grade Captive Screws
Low quality captive screws suffer from weak retainer springs, incorrect retention length, thread galling, and early failure of the captivation feature. Premium products maintain smooth retraction, consistent retention force, and reliable thread engagement over thousands of cycles, lowering field service cost and preventing equipment damage from loose hardware.
Key differentiators:
- Precision stamped or machined retainer for consistent retention
- Virgin stainless steel or alloy steel with mill certificate
- 100 percent functional test for retraction and extension force
- Anti corrosion coating matched to application environment

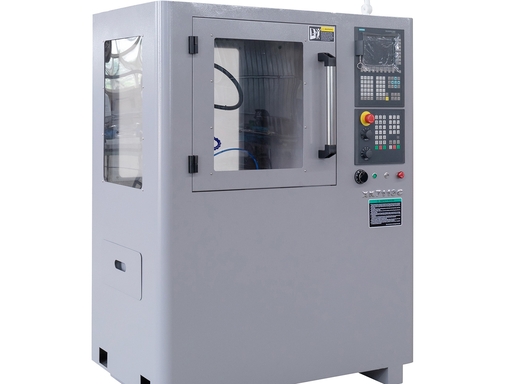

We own over 30 years of professional precision fastener production experience. Our facility operates fully automated CNC turning, thread rolling, and assembly lines for captive screw production.
Production Parameter Range:
|
Parameter |
Range |
|
Raw material |
303, 304, 316 stainless steel, 10.9/12.9 alloy steel, brass |
|
Thread specification |
Metric M2 to M12, imperial UNC, UNF |
|
Head style |
Pan head, flat head, knurled head, wing head, low profile |
|
Drive type |
Phillips, hex socket, Torx, slotted, combination |
|
Surface treatment |
Zinc plating, black oxide, nickel plating, passivation, e coating |
|
Custom service |
Laser marking, nylon patch, high temperature lubricant, colored coating |

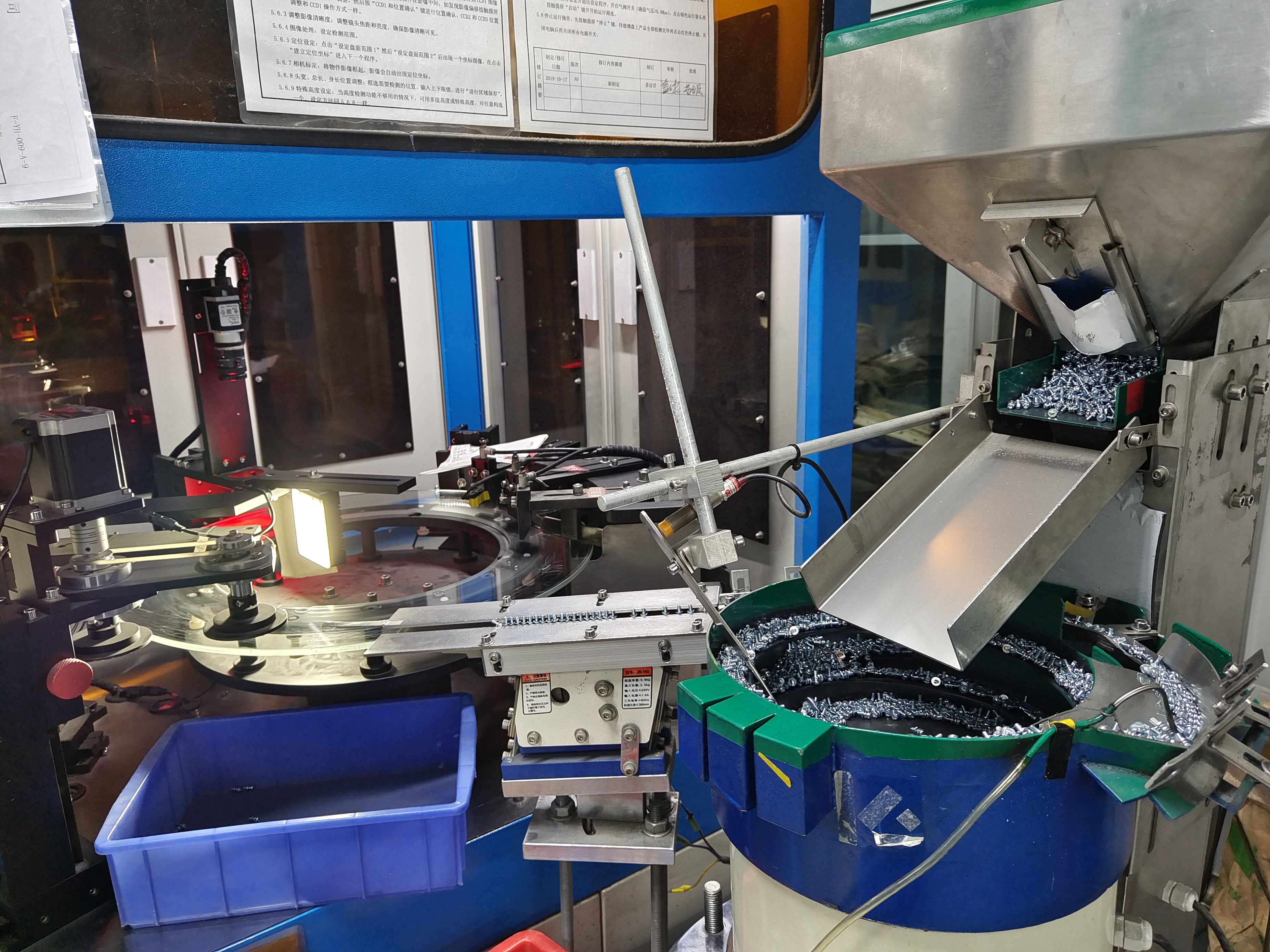

Every finished captive screw undergoes functional testing for retention force and smooth travel. Full automatic optical inspection checks thread contour, head dimension, and retainer assembly. Raw material composition verified by spectrum analysis with mill test report.
Testing conducted following international standards:
- Retention force test per NAS 1834
- Hardness test per Rockwell
- Salt spray test 500 to 1000 hours
- Dimensional inspection by vision system
Certifications held: ISO 9001 2015, IATF 16949, REACH, ROHS
A global telecommunications equipment manufacturer needed captive screws for outdoor 5G base station cabinets. Previous standard screws fell into the cabinet during installation, causing short circuits and field returns. Our 304 stainless steel captive screws with press in retainer were adopted.
Specifications supplied:
- M5 x 12mm pan head captive screw
- Spring loaded retainer, 3.0mm travel
- Black e coating, 720 hour salt spray
- Phillips and slotted combination drive
- Nylon patch for vibration resistance
Result: Zero dropped screw incidents after 6 months field deployment across 5000 cabinets. Customer reduced installation time by 15 seconds per screw. Order quantity expanded from prototype 500 pieces to annual 250,000 pieces.
Image Placeholder 9: Customer application scene image showing captive screws installed on outdoor telecom cabinet access panel
Customer application scene image inserted here
Small captive screws deliver significant value in equipment reliability, maintenance efficiency, and damage prevention. With increasing density of electronic components and demand for field serviceable designs, captive fasteners become a practical solution for access panels, removable covers, and sliding modules.
Supported by rich manufacturing experience, precision processing technology, and full customization service, we supply reliable captive screws adapted to your specific application requirements. From sample trial to mass batch orders, we ensure consistent quality and traceable documentation.
Request product solution and free sample offer. Share your application environment, panel thickness, required thread size, and estimated annual quantity. Our engineering team responds within 24 hours.
