In the efficient operation of precision manufacturing and automation equipment, stable positioning and locking are the key basis to ensure accuracy and efficiency. With its modular design and flexible adaptability, spring plunger is a reliable choice for multi-industry positioning scenarios.

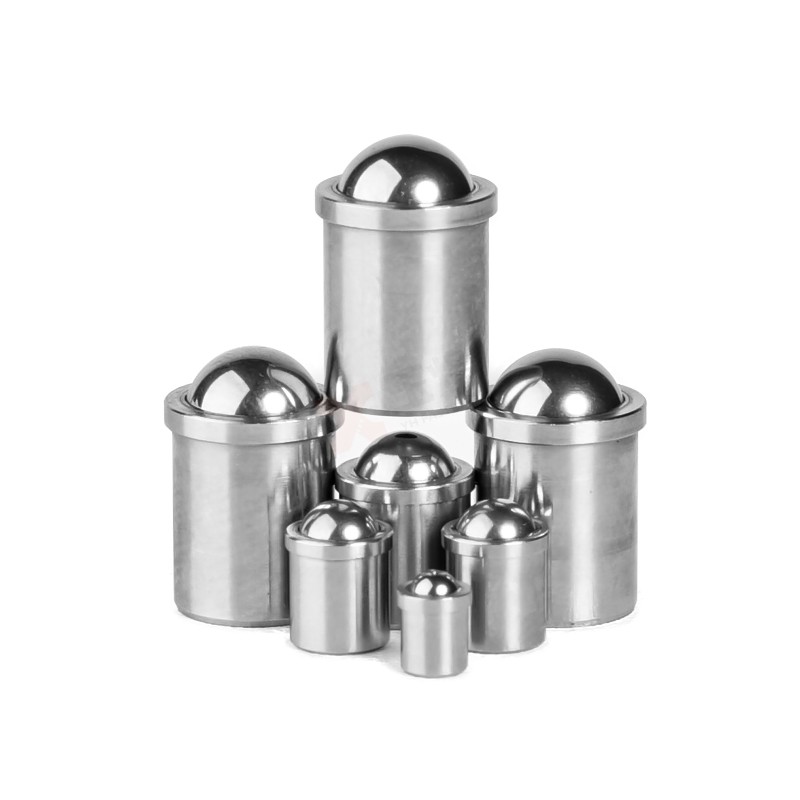

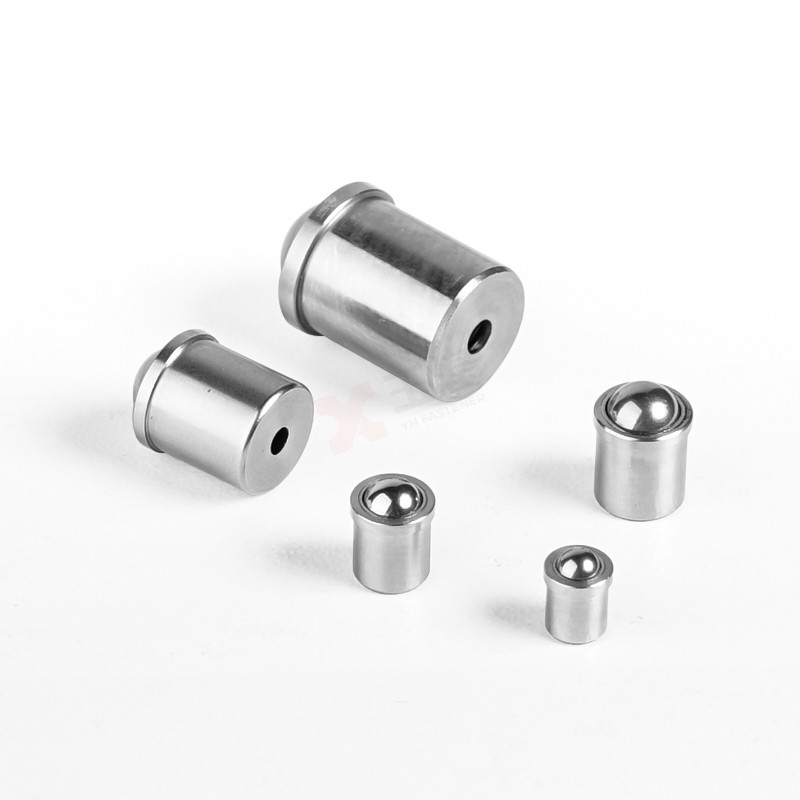

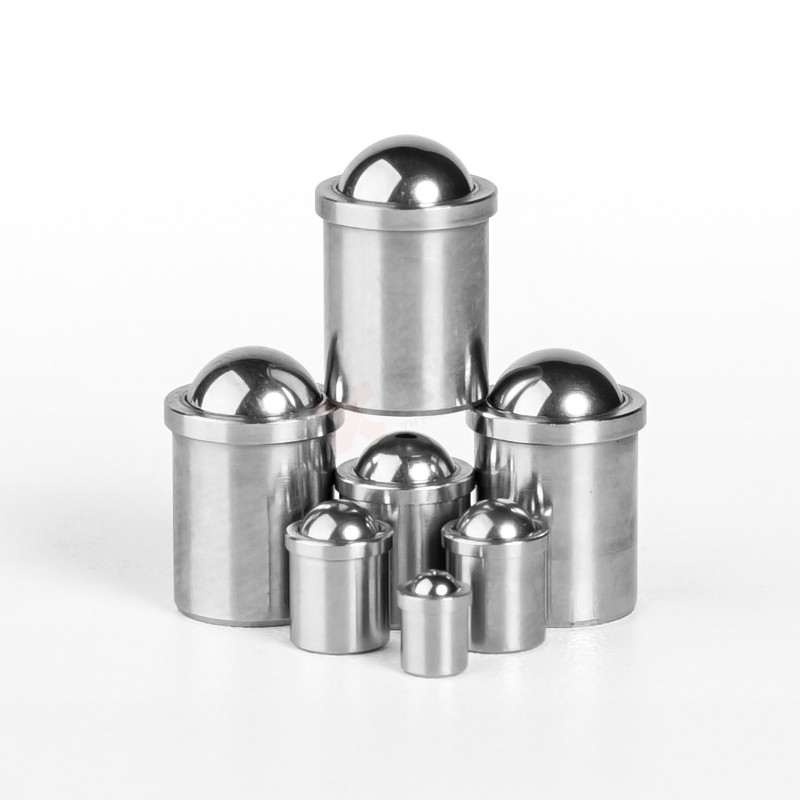

Spring Plunger is a precision positioning element with built-in elastic structure, which expands and contracts by means of internal spring driven ball, so as to realize precise positioning, indexing and locking in equipment, fixture or mould. With mature structure design and customization capability, this product is widely applicable to various industrial production scenes and provides users with stable and efficient positioning solutions.
Modular structure and customized adaptability
The product adopts the modular structure of split production and integral assembly. The core components can be customized independently to meet the requirements of different working conditions:
- Beads: Support customized materials. Different metal materials can be selected according to the corrosion resistance and abrasion resistance requirements to ensure the smoothness and accuracy of the balls in high frequency use.
- Spring: It supports elastic force customization, and the spring rigidity can be adjusted according to the load demand to realize the elastic force gradient coverage from light load to heavy load, so as to ensure the accurate and controllable positioning force.
- Shell: support material and size customization, select corrosion resistant materials such as stainless steel, adapt to complex industrial environment such as moisture, acid and alkali, and adjust shell specifications according to installation requirements.
Multiple application scenarios covering core requirements
Spring Plunger, with simple and reliable structure, can adapt to a variety of industrial positioning scenarios:
- Locking and positioning: realize fast locking and unlocking of workpiece in moulds and fixtures, ensure the stability of workpiece position during processing and avoid displacement affecting accuracy.
- Index positioning: in the automatic production line and rotary table, accurate angle index is realized through the cooperation of ball and index hole, and the tact and consistency of equipment operation are improved.
- Audible positioning: in the precise detection or operating device, the clear sound of clamping the ball into the positioning slot provides the operator with intuitive feedback and improves the operation convenience.
Quality and adaptability advantages

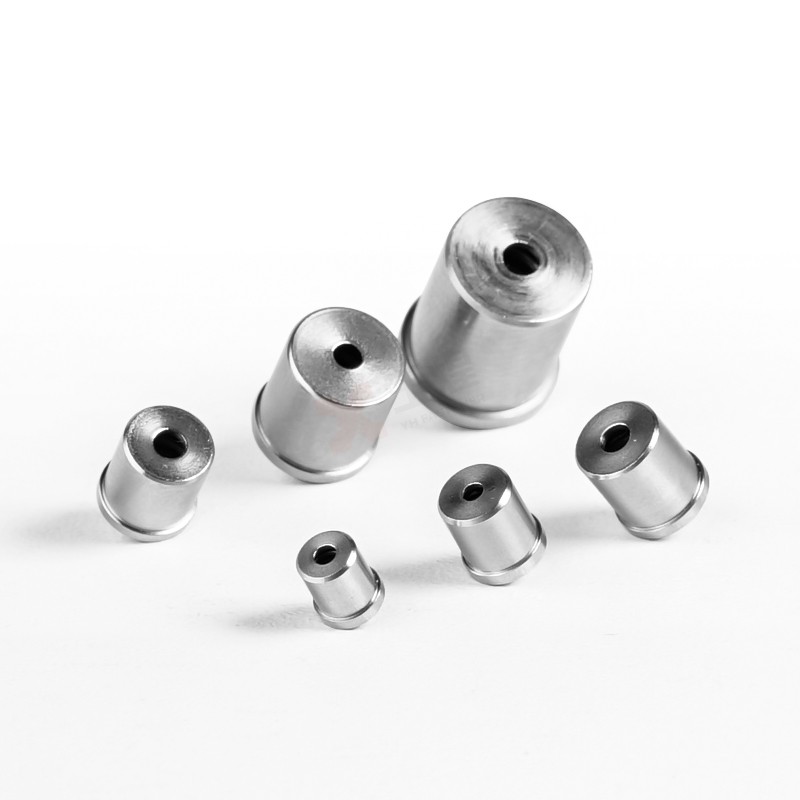

YH FASTENER's Spring Plunger ensures product stability with mature process: all-metal structure has excellent fatigue resistance and wear resistance, which can withstand thousands of reciprocating actions, and the performance is still the same. The press-mounted installation design does not require additional thread processing, can quickly insert the equipment into the preset hole position, greatly reduce the assembly and maintenance costs, support the deep customization of size, material and elasticity, and accurately meet the personalized positioning requirements of automobile manufacturing, 3C electronic, medical devices, mold fixtures and other industries.
As the core basic component in precision manufacturing field, Spring Plunger spring positioning ball, with reliable performance and flexible adaptability, has become the key option to improve equipment accuracy and optimize production process, helping various industries achieve more efficient and stable production operation.
Choose YH FASTENER to make each accurate positioning a solid guarantee for quality and efficiency!
Post time: Mar-21-2026
